11.1 Brief operating instructions
Functional and operating elements:
1 Ice condenser
chamberFehler!
Textmarke nicht
definiert.
2 LSCplus user
interface
3 Mains power switch

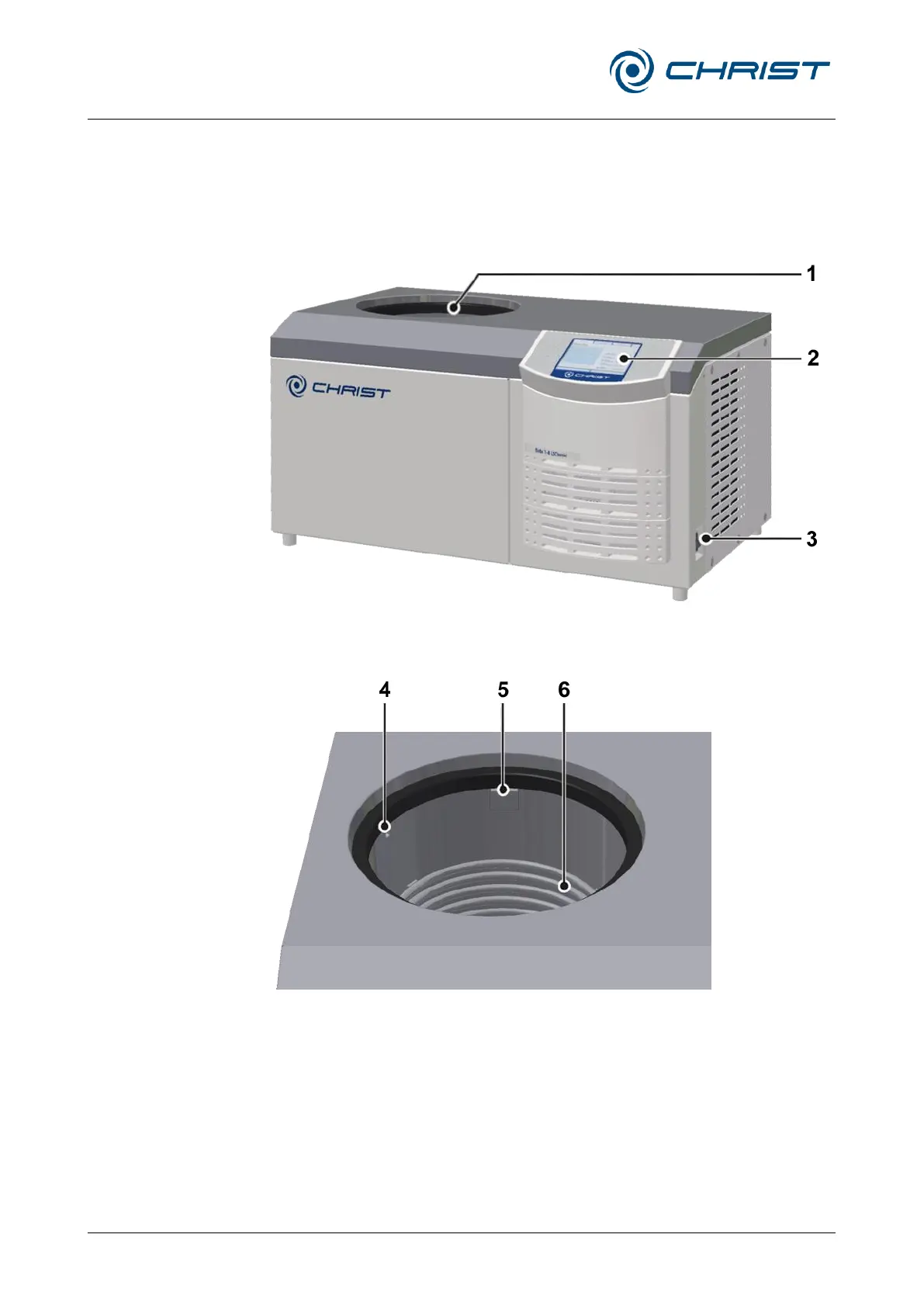

Fig. 57: Total view of the freeze-dryer
4 Vacuum sensor
5 Pipe connection of the
vacuum pump (behind
the cover plate)
6 Ice condenser
Fig. 58: Ice condenser chamber
