Christ Beta 1-8 LSCbasic - Page 54

Freeze-dryer Beta 1-8 LSCbasic
Freeze-dryer Beta 2-8 LSCbasic
6 Operation
54 / 107
Version 03/2018, Rev. 1.5 of 09/03/2020 • sb-dc
Translation of the original operating manual
Scale unit (2)
This dialogue box is used to change the unit of measurement for the
temperature and vacuum values.

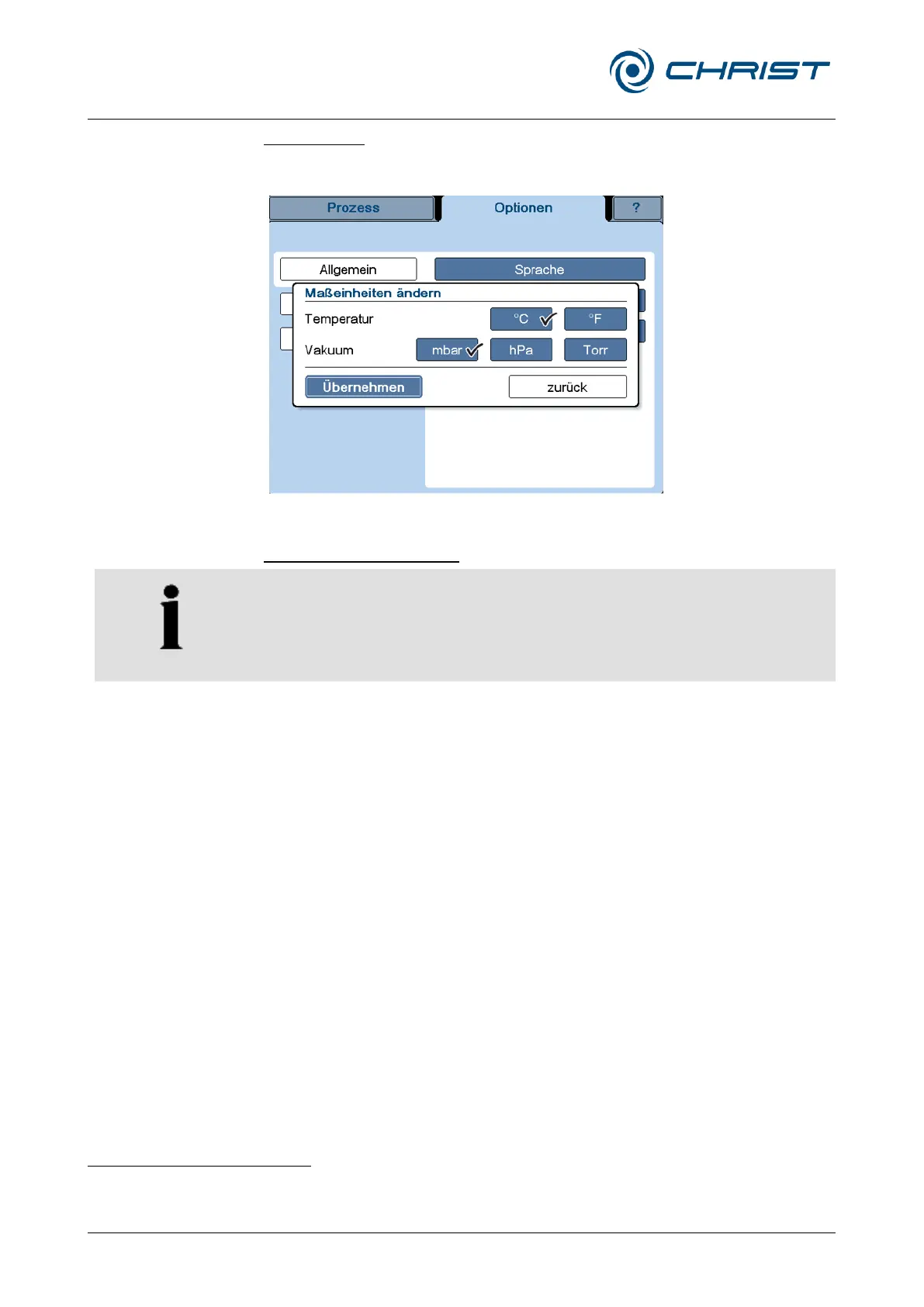

Fig. 32: Dialogue box "Change scale unit"
Freeze-drying process (3)
NOTE
This function depends on the type of freeze-dryer and is not available for
all types.
Prior to the start of the process, the correct process must be selected. The
following processes are available:
• → Cold trap operation
2
: Use of the freeze-dryer as a cold trap
• → Double-chamber method (outside): Drying outside the ice condenser
chamber
• Double-chamber method LyoCube
3
: Drying outside the ice condenser
chamber, but with the CHRIST LyoCube

(a rectangular drying
chamber that can be loaded from the front)
2
Not available for Alpha 3-4 LSCbasic.
3
Not available for Alpha 3-4 LSCbasic.
