E Series User Manual
020-000515-01 Rev. 2 (03-2013)
Section 2: Introduction
2-4

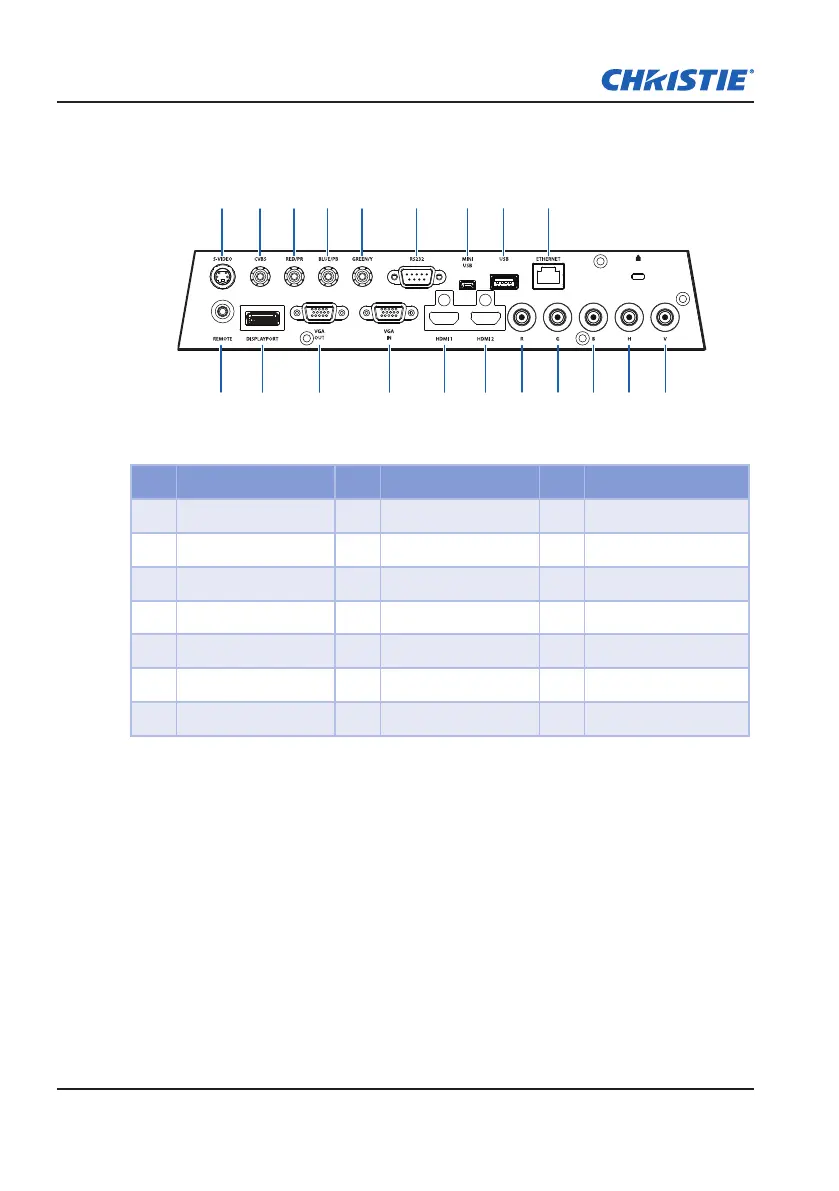

2.3 Input/Output (I/O) Panel
Ind. Connector Name Ind. Connector Name Ind. Connector Name
1 S-Video 2 CVBS 3 Red/Pr
4 Blue/Pb 5 Green/Y 6 RS232 IN
7 Mini USB 8 USB 9 Ethernet
10 Remote 11 Display Port 12 VGA-OUT
13 VGA-IN 14 HDMI-1 15 HDMI-2
16 R 17 G 18 B
19 H/C 20 V
1 2 3 4 5 6 7 8 9
10 11 12 13 14 1615 17 1918 20
