CIGWELD weldskill 150 - Welding Face Shield Assembly; Face Shield Maintenance; Electromagnetic Compatibility

WELDSKILL 100, 135, 150 MIG
3-2
Installation
3.05 Welding Face Shield Assembly
!
WARNING
The Welding Shade Lens must be correctly
fitted to the Welding Face Shield prior to
use.
• Removethemainfaceshieldassemblyandthe
hand grip from the packaging.
• Hookthe handle into themain face shield
assembly as shown in Figure 3-1 below.
• Cliptheweldinglensesuppliedintopositionas
shown in Figure 3-2 below.

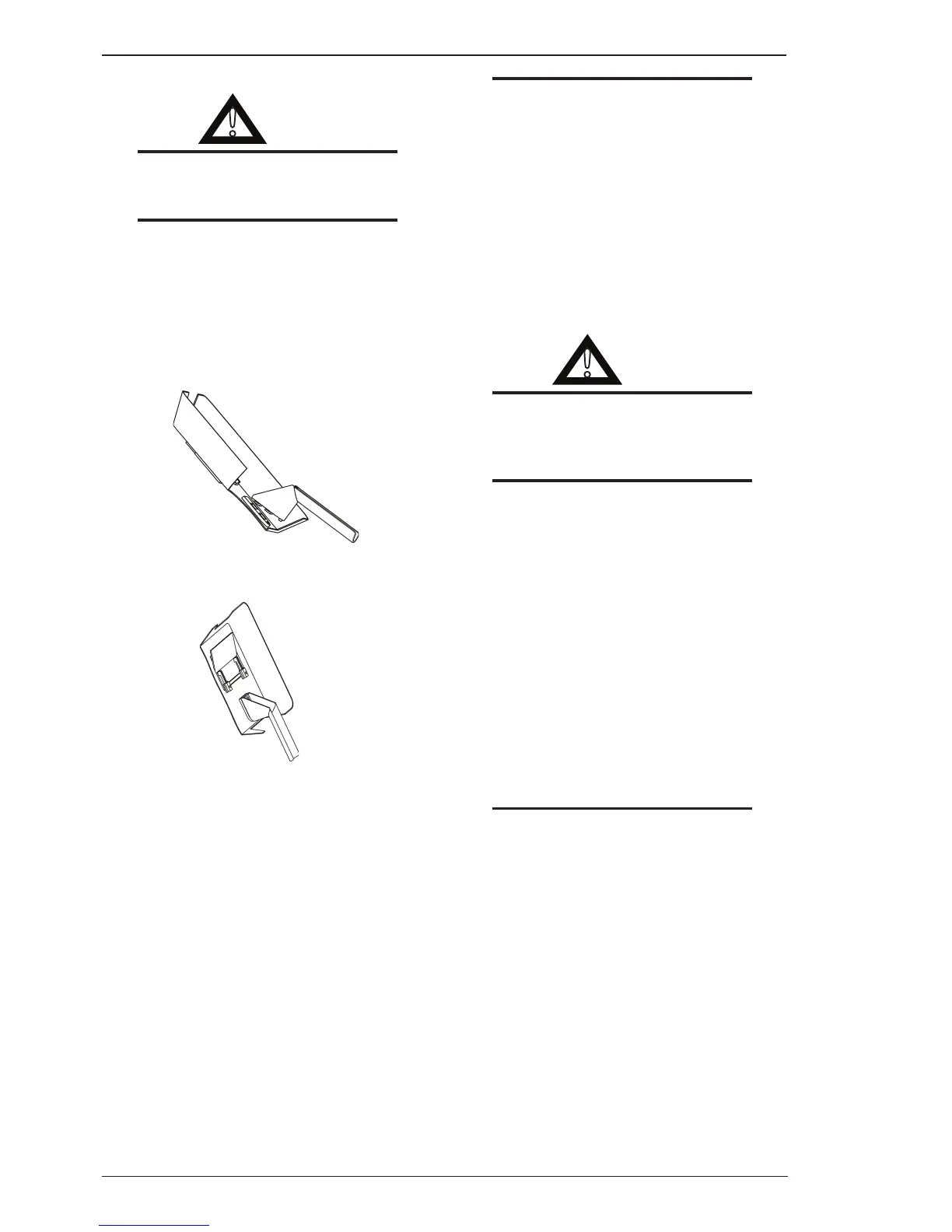

Art # A-08430
Figure 3-1: Hook handle into the main face shield
assembly
Art # A-08431
Figure 3-2: Clip welding lense into position as
shown
3.06 Face Shield Maintenance
Parts that are broken, missing, plainly worn, distorted
or contaminated, should be replaced immediately.
Should such repairs or replacements become
necessary, it is recommended that such repairs
be carried out by appropriately qualified persons
approved by CIGWELD. Advice in this regard can
be obtained by contacting an accredited CIGWELD
Distributor.
Note: Faceshield not supplied with WeldSkill
150Mig.
NOTES
•Inspectlensesfrequently.Immediately
replace any scratched, cracked, or pitted
lenses as they may impair visibility and
reduce protection.
•InspectFaceshieldShellfrequently.Im
-
mediately replace any damaged or worn
components.
• The Faceshieldand Lensshould be
cleaned after use with a soft cloth.
3.07 Electromagnetic Compatibility
!
WARNING
Extra precautions for Electromagnetic
Compatibility may be required when
this Welding Power Source is used in a
domestic situation.
A. Installation and Use - Users Responsibility
The user is responsible for installing and using the
welding equipment according to the manufacturer’s
instructions. If electromagnetic disturbances are
detected then it shall be the responsibility of the user
of the welding equipment to resolve the situation
with the technical assistance of the manufacturer. In
some cases this remedial action may be as simple as
earthing the welding circuit, see NOTE below. In other
cases it could involve constructing an electromagnetic
screen enclosing the Welding Power Source and the
work, complete with associated input filters. In all
cases, electromagnetic disturbances shall be reduced
to the point where they are no longer troublesome.
NOTE
The welding circuit may or may nor be
earthed for safety reasons. Changing the
earthing arrangements should only be
authorised by a person who is competent
to assess whether the changes will
increase the risk of injury, e.g. by allowing
parallel welding current return paths which
may damage the earth circuits of other
equipment. Further guidance is given
in IEC 974-13 Arc Welding Equipment -
Installation and use (under preparation).
