3.11 Installing Minispool (100mm diameter) – WeldSkill 100 MIG

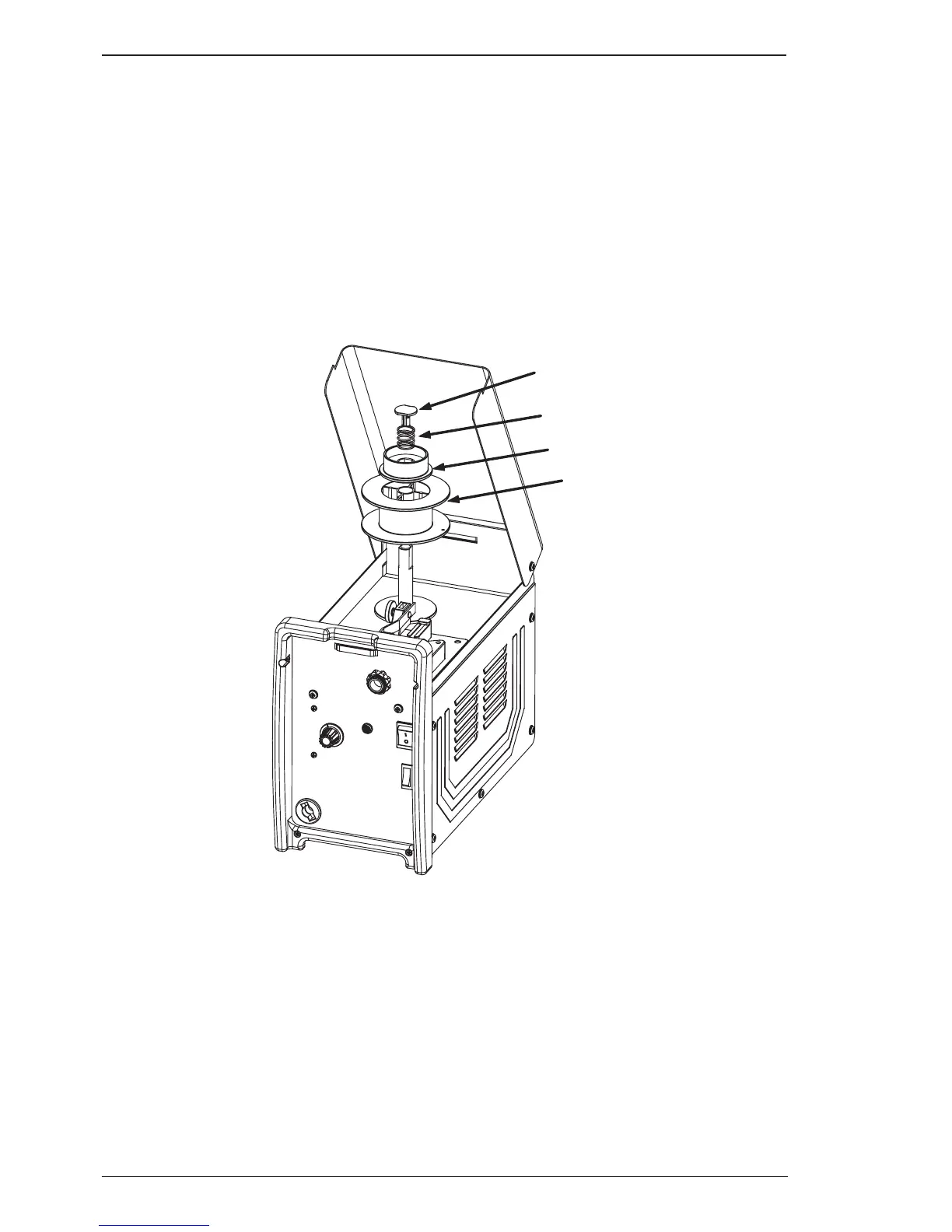

Assemble parts in sequence shown below in figure Figure 3-8.
1. Minispool
2. Spacer
3. Spring
4. Locking Pin
Align and Push in and turn clockwise 90 degrees to secure in place.
Note: Only Minispools of 100mm diameter are suitable for use with the WeldSkill 100 Mig.
Art # A-09006
Locking Pin
Spring
Spacer
Minispool
Figure 3-8: 100mm Minispool Installation
