4.0 OVERALL PARTS DESCRIPTIONS
1
Components of the machine.

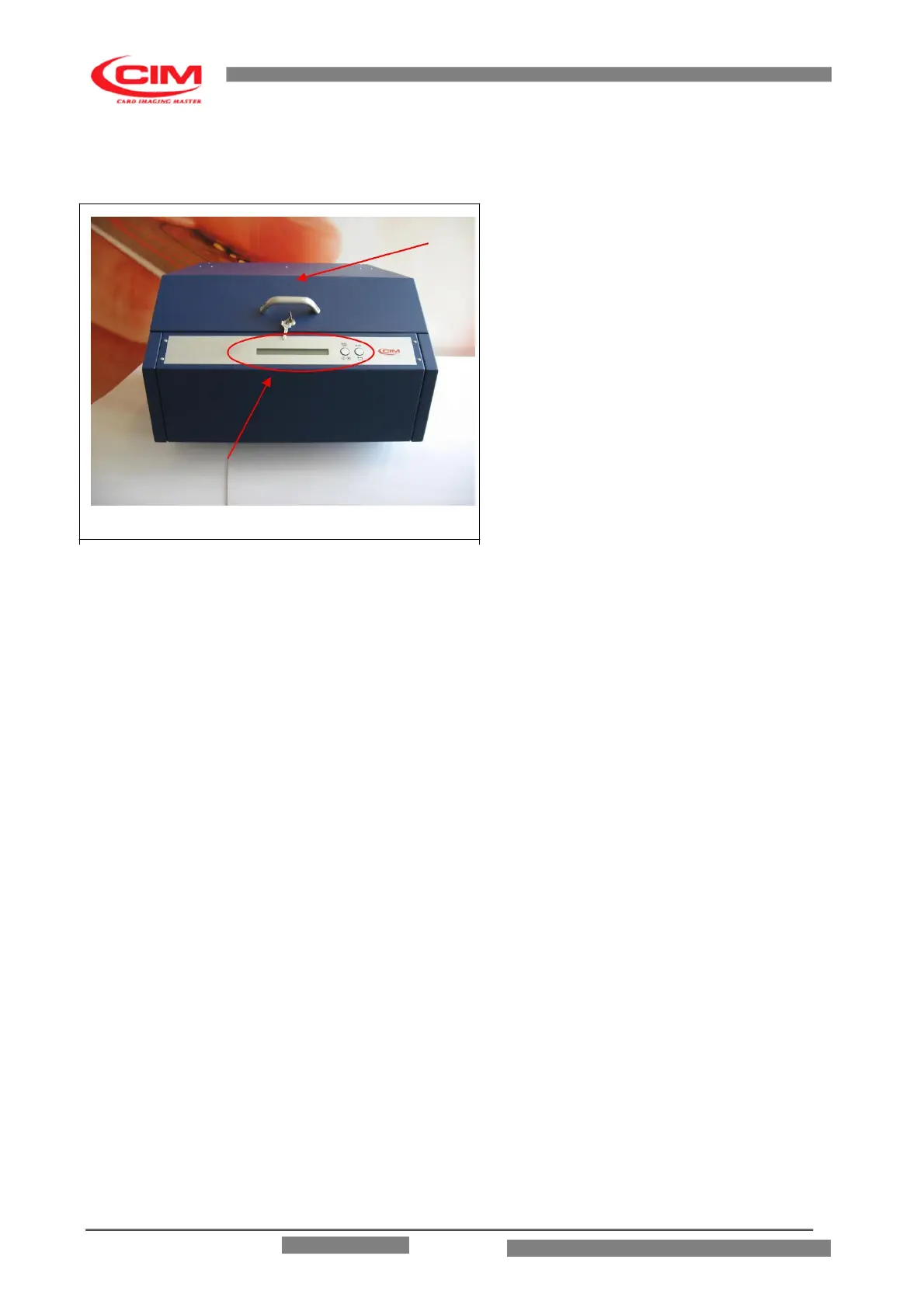

In Fig. 4.1 are shown the main components of
the machine:
1. Top Cover
2. Operator Console
2
Fig. 4.1
4.1.1 THE TOP COVER
The TOP COVER (fig. 4.1 – 1) prevents any contact of the Operator with the dangerous moving parts of
the machine and should be closed during work. A mechanical switch with a firmware protection stops the
machine each time the cover is not well closed.
In case of damage or malfunctioning of this safety function, please switch off the machine
and call immediately for service.
