CE318-T Photometer
User Operation Manual
Revision V4.10 October 2021
22

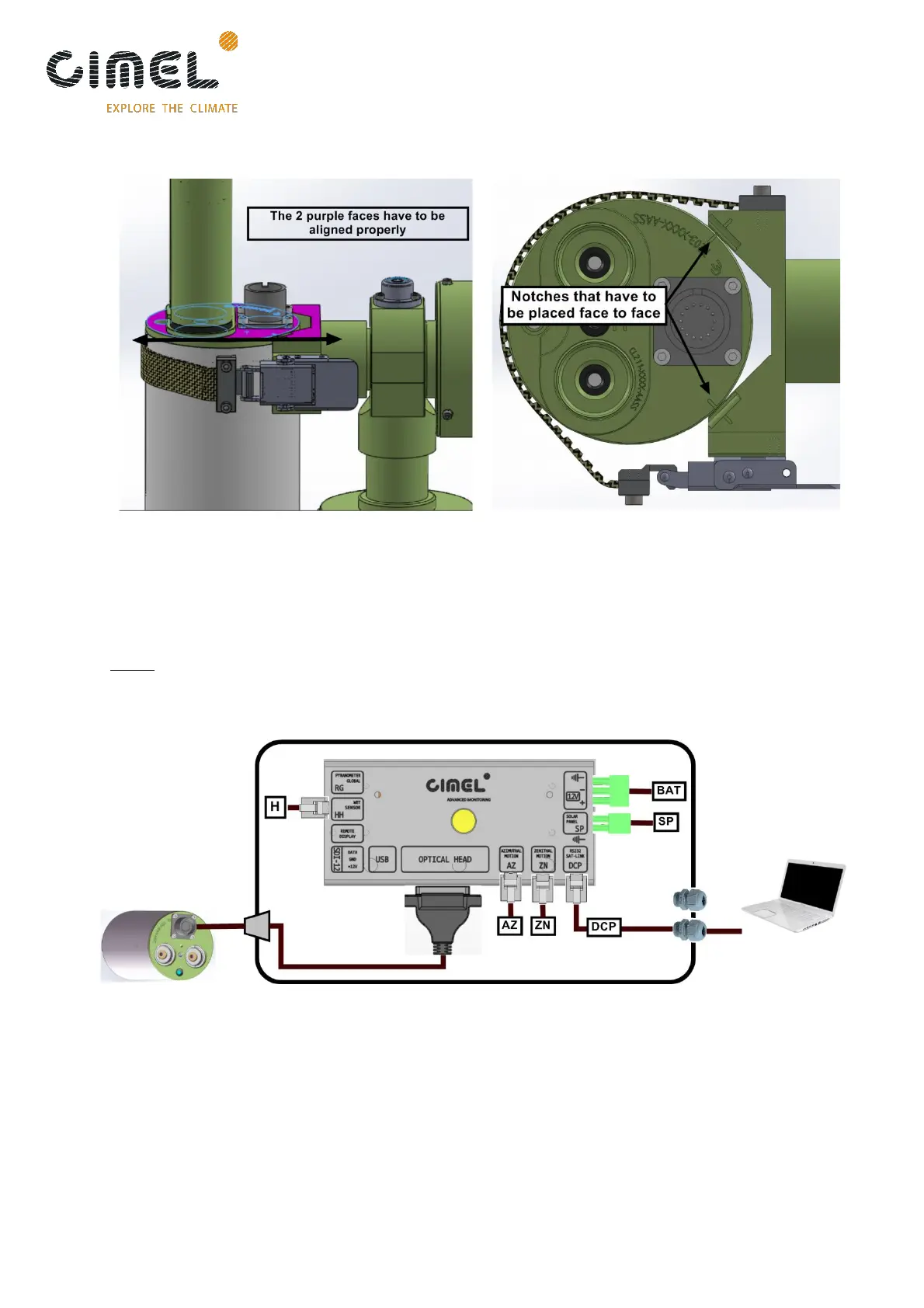

17. Plug the sensor head cord from the CU to the sensor head passing it
through the cap and attaching it to the pig tail. Connect the computer or
the transmitter to the DCP input on the removable terminal block via a
RS232 to RJ11 cable.
Note: A slack has to be maintained so that the head sensor cord will not be too much
extended while the device is operating, which can lead to the malfunctioning of the
photometer.
