116
End Programming Format
1500 Barcode Scanner
User Guide

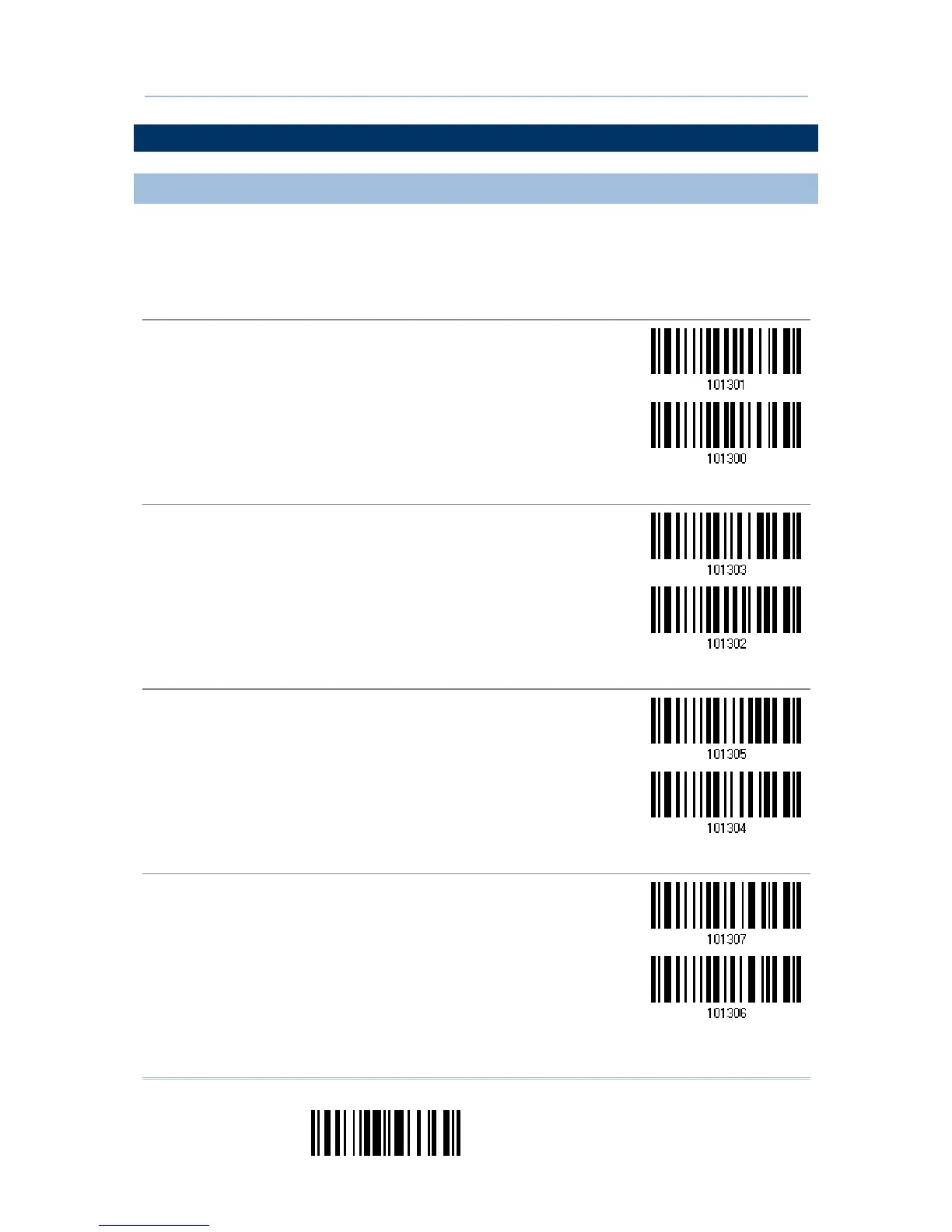

5.1 ACTIVATING EDITING FORMATS
5.1.1 ACTIVATE EDITING FORMATS
If you have already configured any edi
ting
format before, you may directly apply the
editing format. If not
, you must start with configurin
g an editing format first, and then,
activate the editin
g format when it is desired in use.
Editing Format 1
Enable
*Disable
Editing Format 2
Enable
*Disable
Editing Format 3
Enable
*Disable
Editing Format 4
Enable
*Disable
127
129
