User Guide

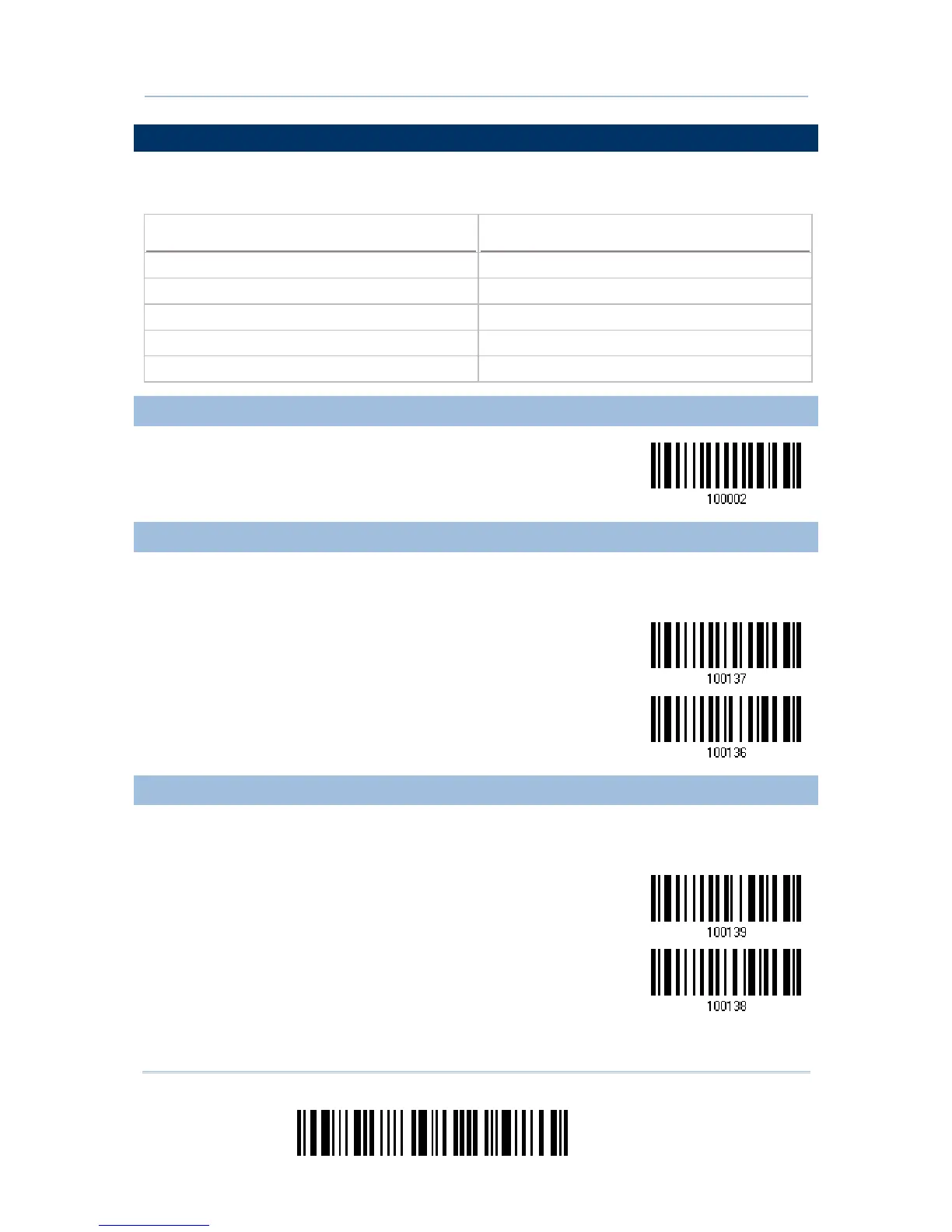

2.3 WAND EMULATION
The wand emulation cable allows you to connect the scanner to a data terminal that is
expecting input from a wand scanner.
Wand Emulation Settings
Defaults
Normal State Low
Bar State High
Module Time 1 (ms)
Margin Time 20 (ms)
Output Format Normal Output
2.3.1 ACTIVATE WAND EMULATION
Activate
Wand Emulation
2.3.2 NORMAL STATE
By default, the signal level is set to "Low" for the normal state when not transmitting any
barcode image (= white spaces in a barcode).
High
*Low
2.3.3 BAR STATE
By default, the signal level is set to "High" for a bar when transmitting a barcode image
(= dark bars in a barcode).
*High
Low
