51
Update

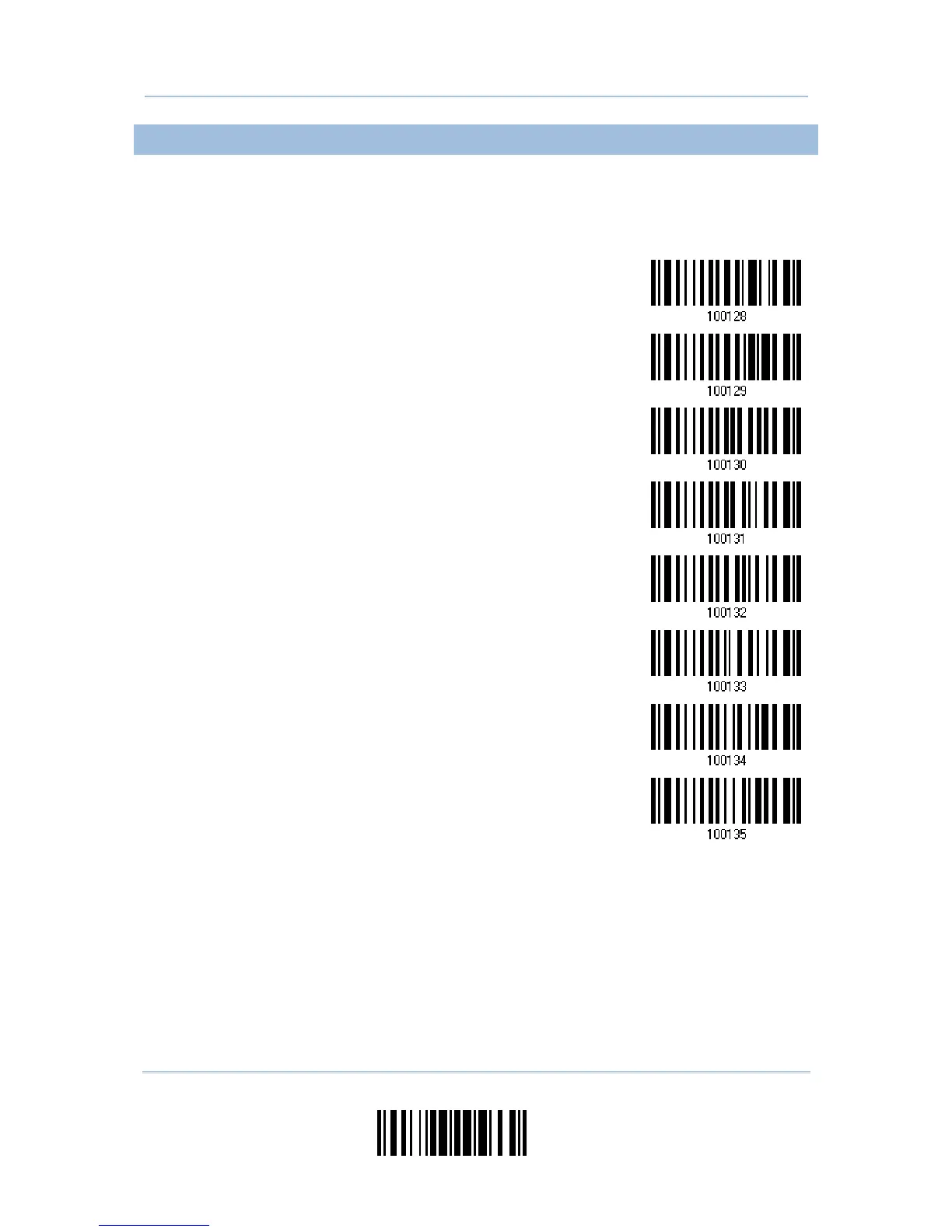

Chapter 2
Selecting Output Interface
2.3.4 MODULE TIME
By default, it is set to 1 millisecond as the time span for bar and space modules. Select
other value for th
e module time, in uni
ts of micro-second
or millisecond.
250
µ
s
500
µ
s
*1 ms
1.5 ms
2 ms
3 ms
4 ms
5 ms
62
64
