86
Enter Setup
1500 Barcode Scanner
User Guide

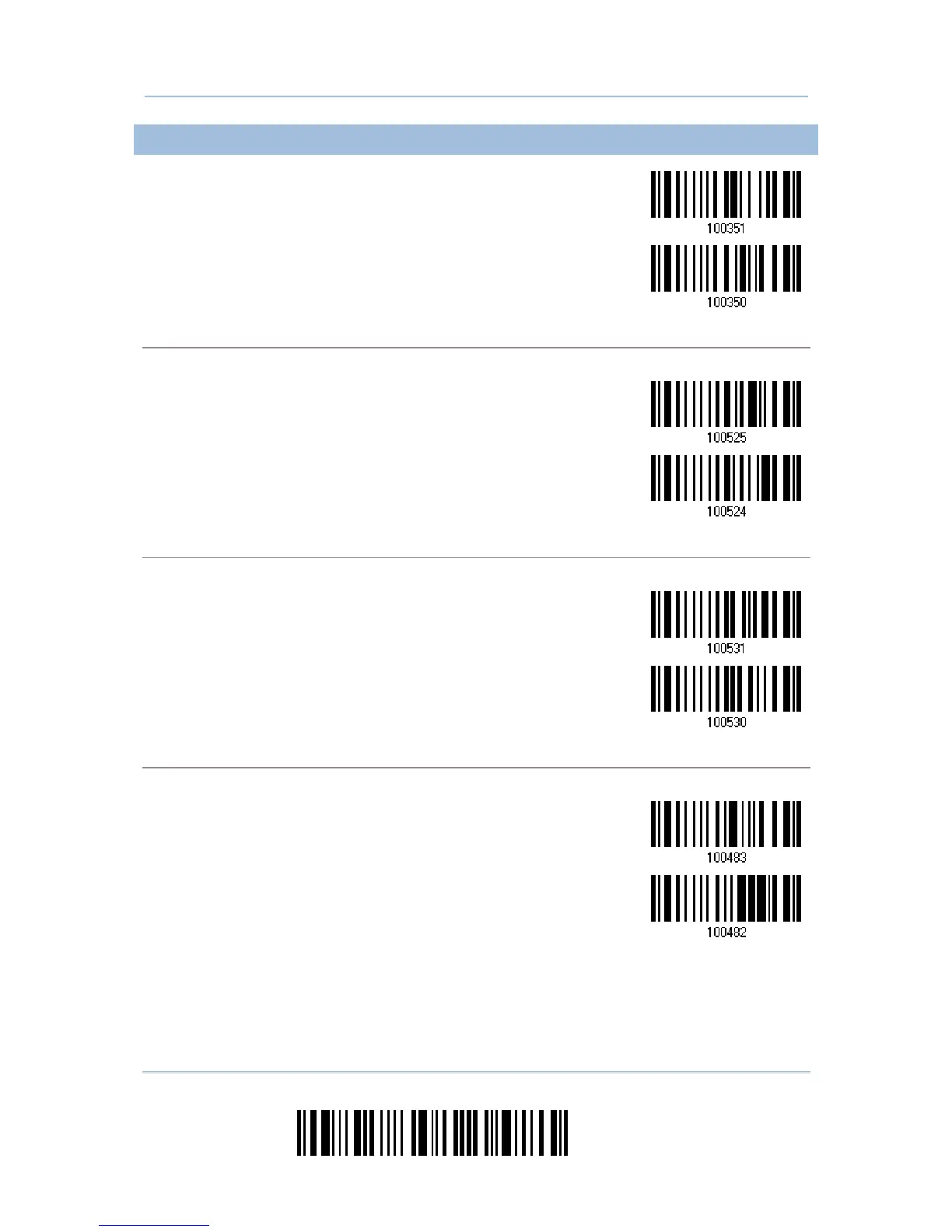

3.16.4 GS1 DATABAR LIMITED (RSS LIMITED)
Enable RSS Limited
(Group III)
*Disable
Transmit Code ID
Decide whether to include the Code ID
in the data being transmitted.
*
Transmit
RSS Limited Code ID
Do Not Transmit
Transmit Application ID
Decide whether to include the Appli
cation ID ("
01
") in the data being transmitted.
*
Transmit
RSS Limited
Application ID
Do Not Transmit
Transmit Check Digit
Decide whether to include the check digit in the data bei
ng transmitted.
*
Transmit
R
SS Limited
Check Digit
Do Not Transmit
