119
Update
Chapter 4
Changing Symbology Settings

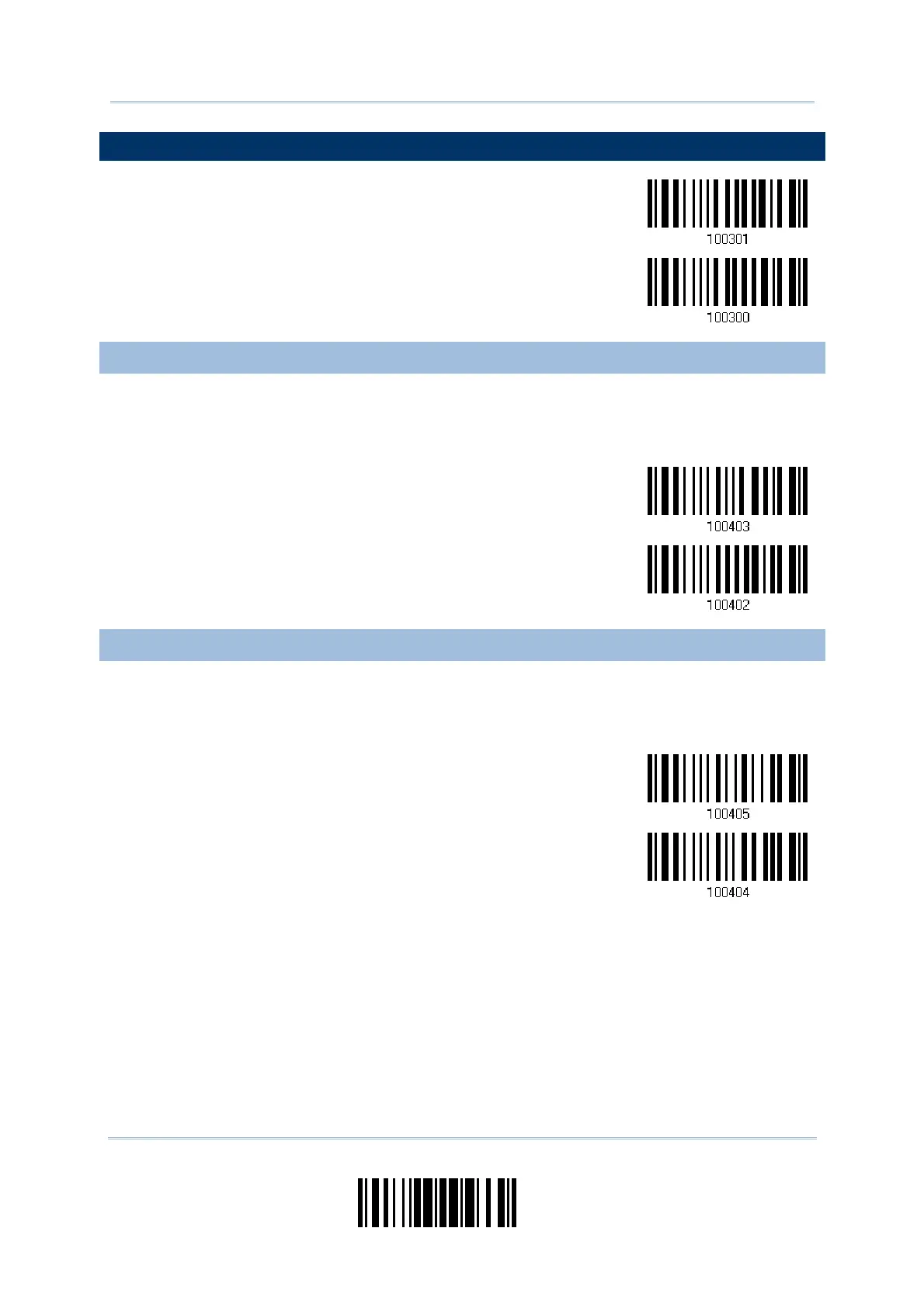

4.5 CODE 39
*Enable
Disable
4.5.1 START/STOP TRANSMISSION
Decide whether to include the start/stop ch
aracters in the
data being transmitted.
Transmit Code 39
Start/Stop
Characters
*Do Not Transmit
4.5.2 VERIFY CHECK DIGIT
Decide whether t
o verify check digit.
If incorrect, the barcode will n
ot be accepted.
Verify Code 39
Check Digit
*Do Not Verify
