159
Update

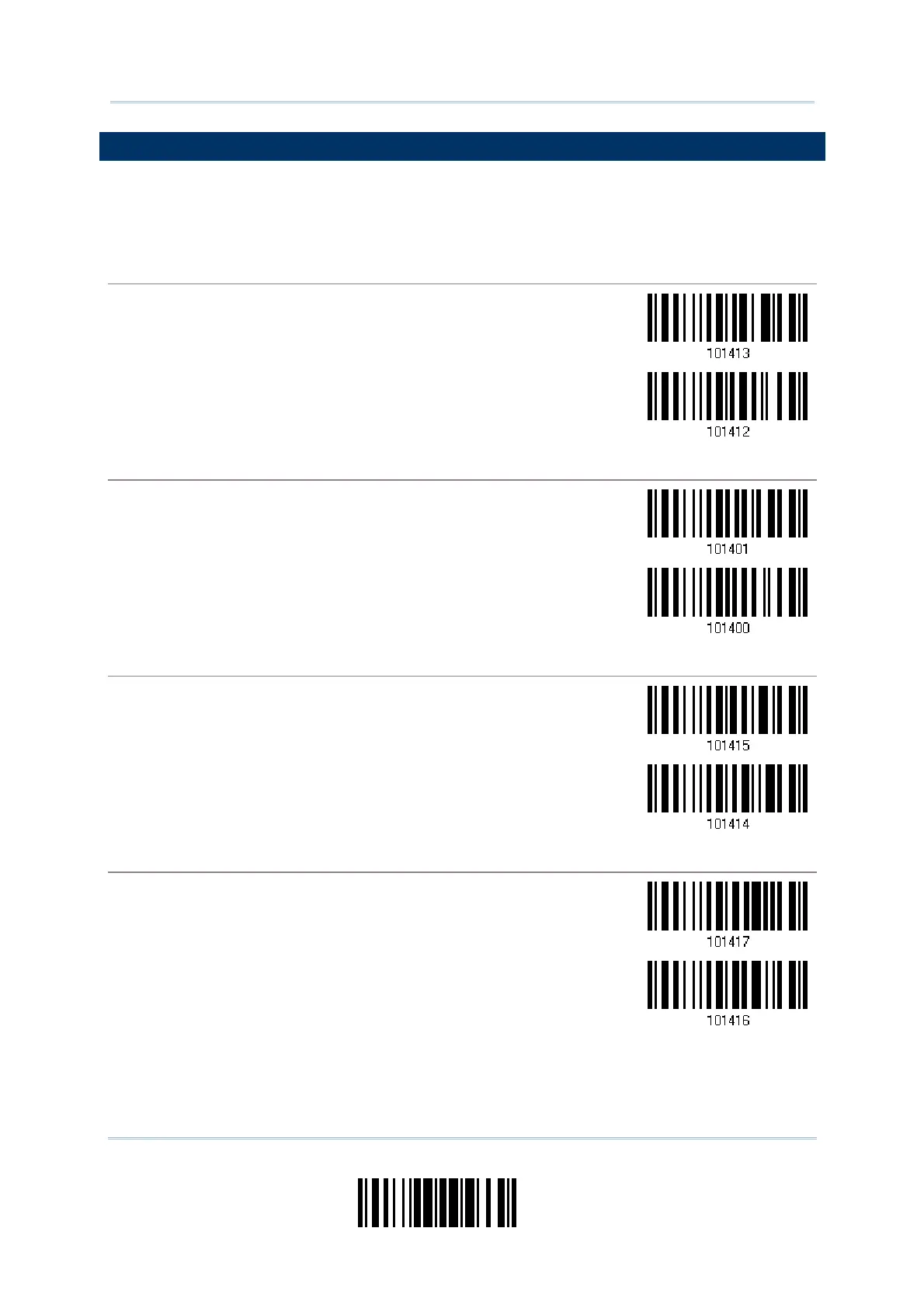

Chapter 5
Defining Output Format
5.5 LENGTH CODE
A two-digit code representing t
he length of barcode data (character coun
t) can be
inserted in fron
t of data being transmit
ted.
Such "Length" code can be individually
enabled or disabled for each symbology.
Length Code for Codabar
Apply
*Do Not Apply
Length Code for Code 39
Apply
*Do Not Apply
Length Code for Code 93
Apply
*Do Not Apply
Length Code for Code 128
Apply
*Do Not Apply
172
