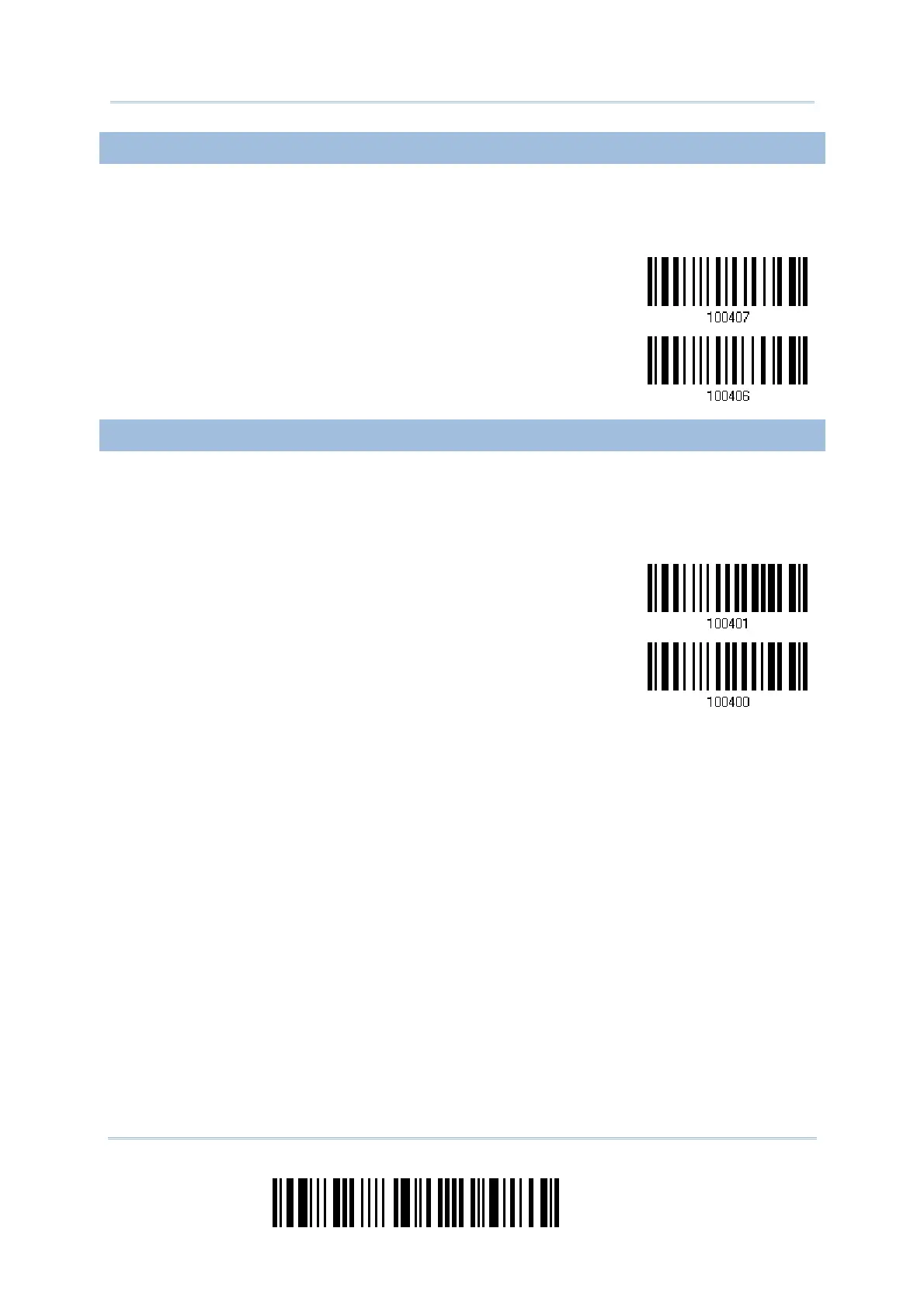

120
Enter Setup
1660 Barcode Scanne
r
User Guide
4.5.3 TRANSMIT CHECK DIGIT
Decide whether to include the check digit in the data being transmitted.
*Transmit Code 39
Check Digit
Do Not Transmit
4.5.4 STANDARD/FULL ASCII CODE 39
Decide whether t
o support Code 39 Full ASCII t
hat includes all t
he alphanumeric an
d
special characters.
Code 39 Full ASCII
*Standard Code 39
133
135
Table of Contents
Default Chapter
3
For Canada
3
For Hand-Held Product with RF Functions
3
Important Notices
3
Care & Maintenance
4
Safety Precautions
4
Release Notes
5
Table of Contents
9
Introduction
15
Getting Familiarized with 1660/1661 and 3610
16
Installing Batteries to 1660/1661
16
Charging the Battery for 1661
17
Charging the Battery Via Charger
18
Using 3610
19
Inside the Package
20
Product Highlights
20
Symbologies Supported
21
Quick Start
23
Enter Configuration Mode
25
Exit Configuration Mode
25
Default Settings
26
Save User Settings as Defaults
26
Restore User Defaults
26
Restore System Defaults
26
Read a Setup Barcode
27
Configure Parameters
27
List the Current Settings
31
Create One-Scan Setup Barcodes
33
Chapter 1
35
Battery
35
How to Operate the Scanner
35
Auto Power off & Power-Saving
37
Understanding the Barcode Scanner
35
Memory
40
Transmit Buffer
40
Memory Mode
41
LED Indicator
43
Good Read LED
44
Good Read LED Duration
44
Beeper
45
Beeper Volume
46
Good Read Beep
47
Low Battery Alarm (1660)
48
Low Battery Alarm (1661)
48
Send "NR" to Host
49
Scan Modes
50
Continuous Mode
51
Test Mode
51
Laser Mode
52
Auto off Mode
52
Auto Power off Mode
52
Alternate Mode
53
Aiming Mode
53
Multi-Barcode Mode
54
Scanner Time-Out
55
Scanning Timeout
55
Delay between Re-Read
56
Read Redundancy for All Symblogies
57
Addon Security for UPC/EAN Barcodes
58
Negative Barcodes
59
Effective Decoding Area
60
Positioning Window
60
Adjusting Window
61
1661 Using Direct USB Cable
62
Direct USB Interface
62
Disable Direct USB Interface
62
Hardware Reset
63
Restore System Defaults
63
Reset Connection
63
Selecting Output Interface
65
Chapter 2
66
Bt Hid
66
Activate BT HID & Select Keyboard Type
66
Reset Connection
67
Keyboard Settings
68
Inter-Function Delay
75
HID Character Transmit Mode
75
Keypad Support for Iphone/Ipad
76
BT SPP Slave
77
Activate BT SPP Slave Mode
77
Inter-Function Delay
77
ACK/NAK Timeout
78
BT SPP Master
79
Activate BT SPP Master Mode
79
Inter-Function Delay
81
ACK/NAK Timeout
82
Switch between Master/Slave Mode
82
USB HID Via 3610
83
Activate USB HID & Select Keyboard Type
83
Keyboard Settings
84
Inter-Function Delay
91
HID Character Transmit Mode
91
USB Virtual COM Via 3610
92
Activate USB Virtual COM
92
Inter-Function Delay
92
ACK/NAK Timeout
93
Direct USB HID (1661 Memory Mode Only)
94
Activate USB HID & Select Keyboard Type
94
Keyboard Settings
95
Inter-Function Delay
102
HID Character Transmit Mode
102
Direct USB Virtual COM (1661 Memory Mode Only)
103
Activate USB Virtual COM
103
Inter-Function Delay
103
ACK/NAK Timeout
104
Setting up a Wpan Connection
105
Connecting Via 3610
106
Connect to 3610
106
Change Interface
107
Configure Related Settings
108
Connecting Via Bluetooth ® Dongle
109
Change Interface
109
Configure Related Settings
110
Connect to Dongle
113
Changing Symbology Settings
121
Chapter 4
122
Codabar
122
Start/Stop Characters Selection
122
Start/Stop Transmission
123
CLSI Conversion
123
Code 25 - Industrial 25
124
Start/Stop Pattern Selection
124
Verify Check Digit
125
Transmit Check Digit
125
Code Length Qualification
126
Code 25 - Interleaved 25
127
Start/Stop Pattern Selection
127
Verify Check Digit
128
Transmit Check Digit
128
Code Length Qualification
129
Code 25 - Matrix 25
130
Start/Stop Pattern Selection
130
Verify Check Digit
131
Transmit Check Digit
131
Code Length Qualification
132
Code 39
133
Start/Stop Transmission
133
Verify Check Digit
133
Transmit Check Digit
134
Standard/Full ASCII Code 39
134
Code 39
134
Code 93
135
Code 128
135
Ean-8
136
122
136
Convert to EAN-13
137
Transmit Check Digit
137
124
138
Ean-13
138
ISBN Conversion
139
ISSN Conversion
139
Transmit Check Digit
139
Security Level
140
Gs1-128 (Ean-128)
141
Code ID Transmission
141
Field Separator (GS Character)
141
Isbt 128
142
Msi
143
Verify Check Digit
143
Transmit Check Digit
143
Code Length Qualification
144
French Pharmacode
145
Transmit Check Digit
145
Italian Pharmacode
146
Transmit Check Digit
146
Plessey
147
Convert to UK Plessey
147
Transmit Check Digit
147
GS1 Databar (RSS Family)
148
Code ID Selection
148
GS1 Databar Omnidirectional (RSS-14)
149
GS1 Databar Expanded (RSS Expanded)
151
GS1 Databar Limited (RSS Limited)
152
Telepen
153
Telepen Output - Full Ascii/Numeric
153
Upc-A
154
Convert to EAN-13
155
System Number Transmission
155
Transmit Check Digit
155
Upc-E
156
System Number Selection
157
Convert to UPC-A
157
System Number Transmission
158
Transmit Check Digit
158
Chapter 5
159
Letter Case
159
Character Substitution
160
Select a Set for Character Substitution
161
Symbologies for Character Substitution (All 3 Sets)
162
Prefix/Suffix Code
168
Code ID
169
Select Pre-Defined Code ID
169
Change Code ID
171
Clear Code ID Settings
172
Length Code
173
Multi-Barcode Editor
177
Edit a Concatenation of Barcodes
178
Activate the Concatenation of Barcodes
179
Removal of Special Character
180
Defining Output Format
159
Applying Formats for Data Editing
181
Chapter 6
182
Activating Editing Formats
182
Activate Editing Formats
182
Exclusive Data Editing
183
Editing Format
184
Select Format to Configure
185
Restore Default Format
186
Configuring Format - Define Data Criteria
187
Applicable Code Type
187
Data Length
194
Matching String & Location
195
Configuring Format - Define Data Field
196
Start Position
196
Field Adjustment
196
Total Number of Fields
197
Field Settings
198
Pause Field Setting
204
Configuring Format - Define Transmission Sequence
205
Programming Examples
207
Example I
207
Example II
208
Specifications
209
Firmware Upgrade
211
How to Upgrade 1660/1661 Firmware
211
Using 3610
211
Using Direct USB Virtual COM (1661 Only)
213
Using Bluetooth ® Dongle
215
How to Upgrade 3610 Firmware
217
Upgrading 3610 CPU Firmware
217
Upgrading 3610 USB Bridge Firmware
219
Host Serial Commands
221
1660/1661 Serial Commands
221
Example
222
3610 Setup Barcodes & Serial Commands
223
3610 Serial Command Table
224
Example
226
Keyboard Wedge Table
227
Key Type & Status
228
Key Type
228
Key Status
228
Example
229
Numeral Systems
231
Decimal System
231
Hexadecimal System
232
ASCII Table
233
Entering PIN Code for Authentication
234
Use Preset PIN
234
Disable Authentication or Use Random PIN
235
