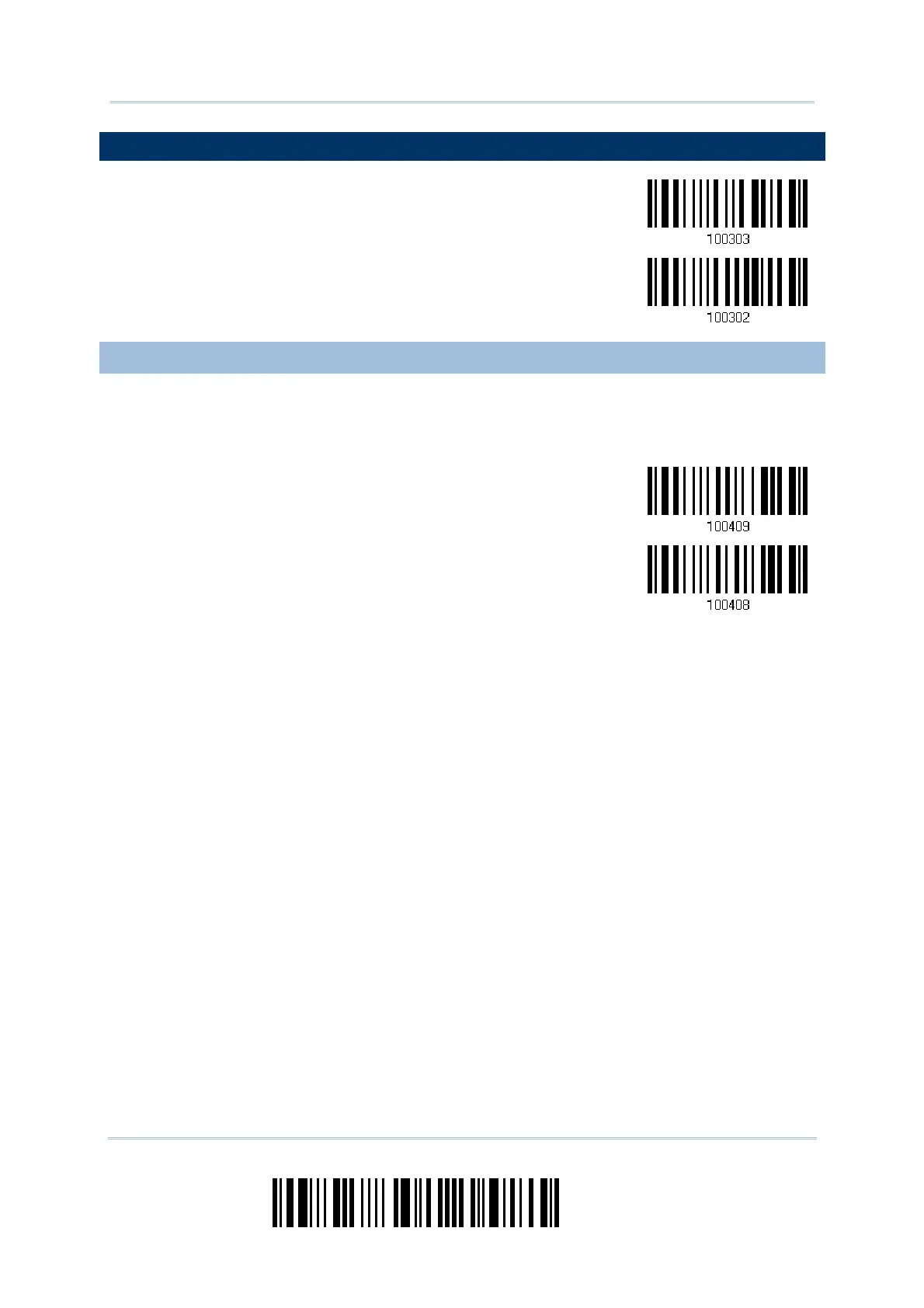

132
Enter Setup
1660 Barcode Scanne
r
User Guide
4.14 ITALIAN PHARMACODE
Enable
*Disable
4.14.1 TRANSMIT CHECK DIGIT
Decide whether to include the check digit in the data being transmitted.
*
Transmit
I
talian Pharmacode
Check Digit
Do Not Transmit
145
