8400 Series Mobile Computer Reference Manual
1.3 KEYPAD
The mobile computer can be equipped with a keypad of 29 keys or 39 keys for system
setup, user entry and so on. The keypad comes with programmable LED backlight, like
the screen. Refer to
1.4 LCD for screen & backlight settings.
Silicon rubber has been chosen for their durability and prompt feedback. The key click
can be configured through programming or via System Menu. Refer to
3.2.6 Key Click.
1.3.1 29-KEY LAYOUT
The layout of the 29-key keypad is similar to that of a telephone, which includes
alphanumeric, navigation and function keys, as well as assorted characters and two
modifier keys. Refer to Appendix III —
Key Reference Tables for color-coded keys.

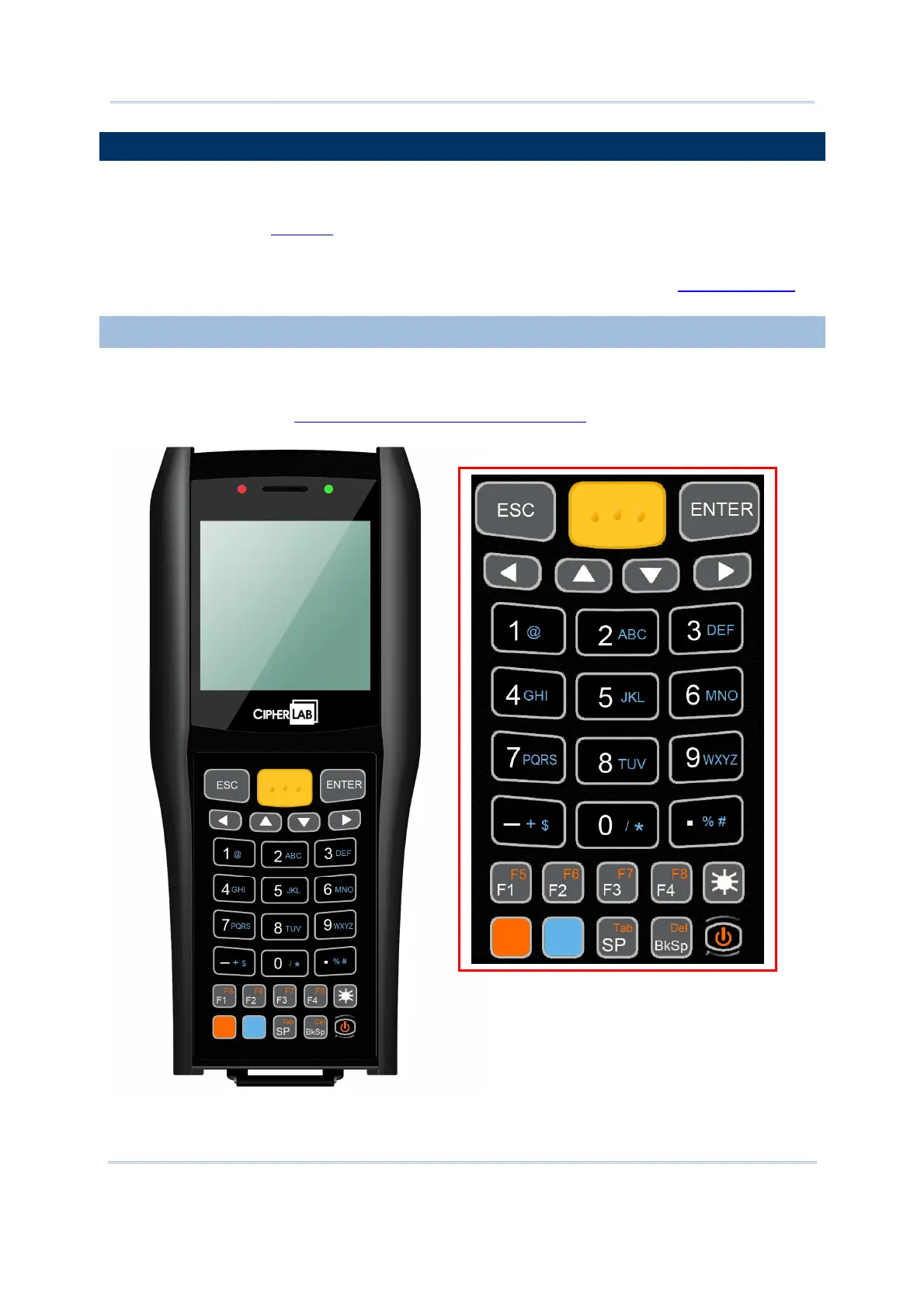

Figure 3: 29-key Layout
