9700 Mobile Computer (CE) Reference Manual
1.8.2. USE CRADLE
Direct cradle charging makes use of a Charging & Communication Cradle (hereinafter
“cradle”). The cradle is one of the accessories you can opt for.
Prior to charging, install main battery as described in Install/Remove Main Battery
. Then
follow the steps below:
1) Seat the mobile computer into the cradle. Connect one end of the USB cable to the
Cradle and the other end to the PC.
2) To charge the mobile computer, connect the cradle to an external power source using
the power adapter.
3) Tap Start | Settings | Control Panel | USB Connection
.
4) To connect to the PC via ActiveSync, chose ActiveSync Serial Mode or ActiveSync
Serial Mode.
To treat the mobile computer as an external storage device, chose Mass Storage – SD
Card. Note that Mass Storage is only supported when as SD card is installed on the
mobile computer.
5) Tap OK on the title bar to apply the settings.
If ActiveSync Serial Mode is selected, see Syncing Tools
and subsequent sections to
know how to use ActiveSync.
Note: The cradle supports USB Host Mode via a USB OTG cable.

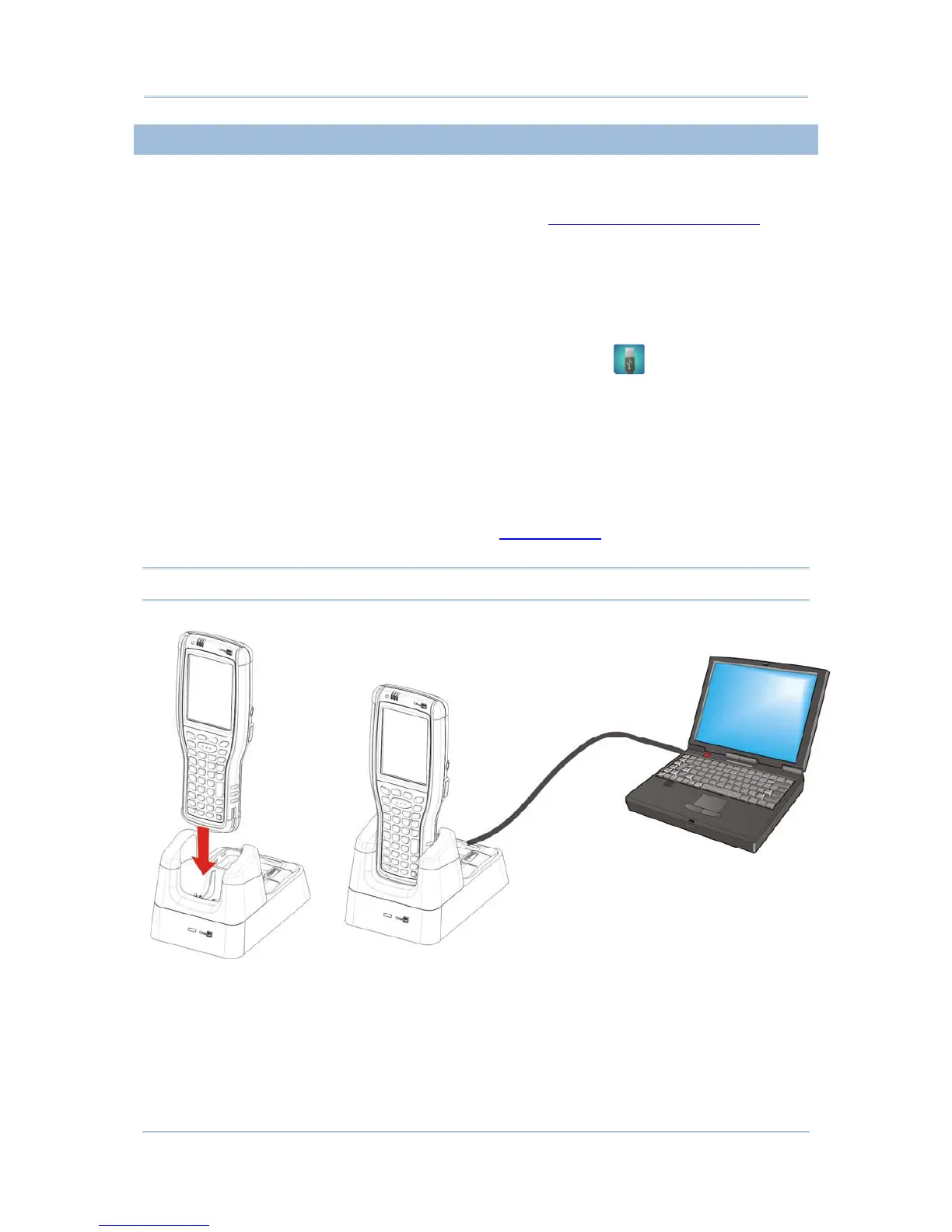

Figure 11: Direct Data Communication Using Cradle

CipherLab 9700 Specifications

General

Battery voltage	3.7 V
Battery capacity	3600 mAh
Battery life (max)	13 h
Display diagonal	3.5 \
Touchscreen type	Resistive
Display resolution	640 x 480 pixels
Flash memory	4 GB
Internal memory	0.512 GB
Internal memory type	DDR
Compatible memory cards	SD, SDHC
Processor family	OMAP 3730
Processor frequency	1 GHz
Processor manufacturer	Texas Instruments
GPS (satellite)	-
Operating system installed	Windows Embedded CE 6.0 R3
Data network	Not supported
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.1+EDR
Security algorithms	WEP, WPA, WPA-EAP, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-EAP, WPA2-PSK
Built-in camera	No
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC, CE, RoHS, REACH, WEEE, ErP, BSMI, NCC, SRRC, CCC, ANATEL, RCM
Product color	Black, Yellow
Keyboard layout	Alphanumeric
International Protection (IP) code	IP65

Weight and Dimensions

Depth	47 mm
Width	87 mm
Height	214 mm
Weight	447 g
