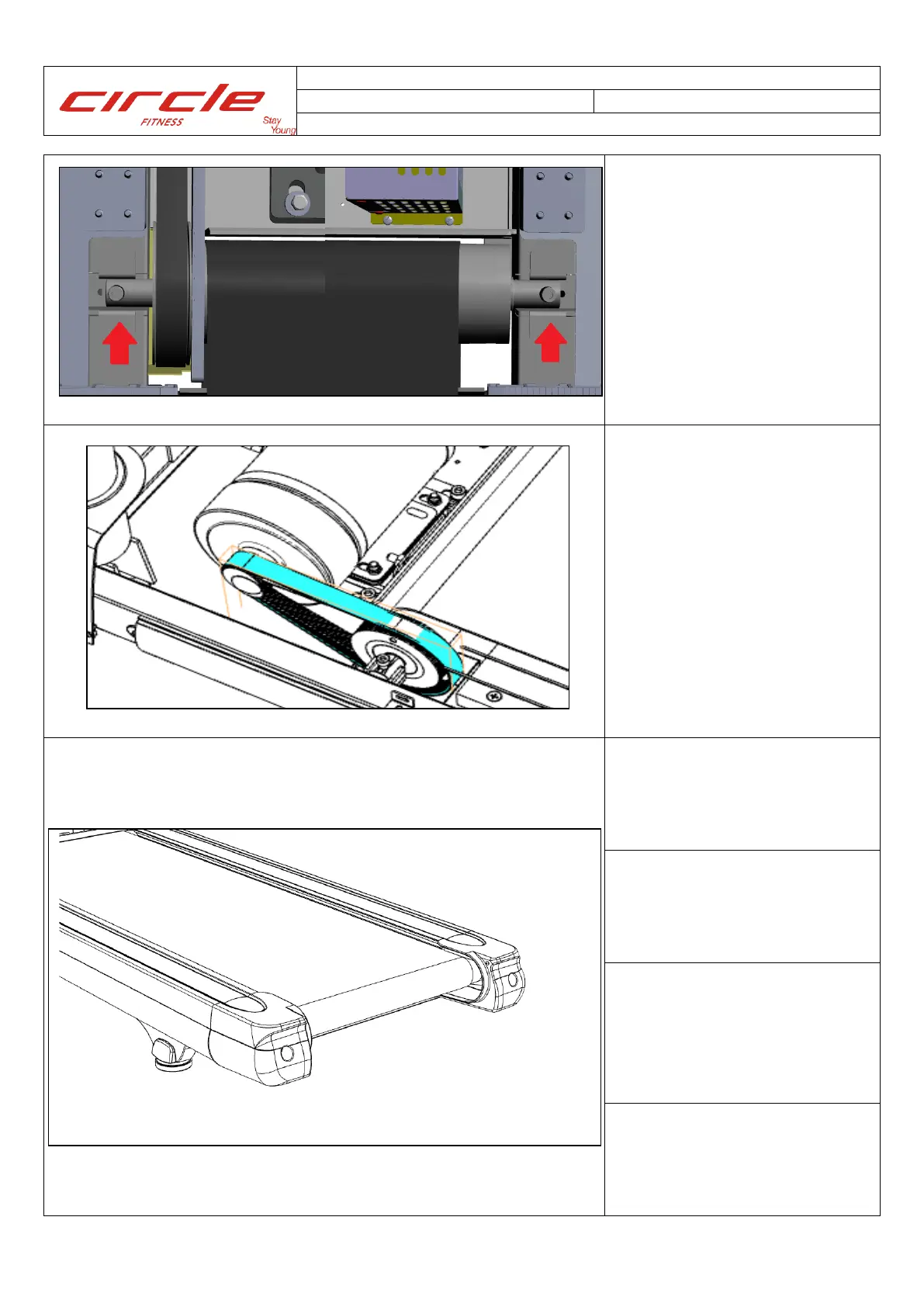

STEP 16:
Position the rear roller
and the front roller
through belt and let roller
bearing rest on roller
brackets.
Secure the front mounting
screws via M6 wrench.
STEP 17:
Place and install motor
drive belt as M7 drive belt
replacement instruction.
STEP 18:
Put the left and right side
rails back and secure 8
screws.
STEP 19:
Locate the end cap set
plate and secure 4 screws
on both sides.
STEP 20:
Put the roller cover back
to position and secure
screws on both sides via
screwdriver.
STEP 21:
Secure 2 tensioning
screws on the rear roller.
