37

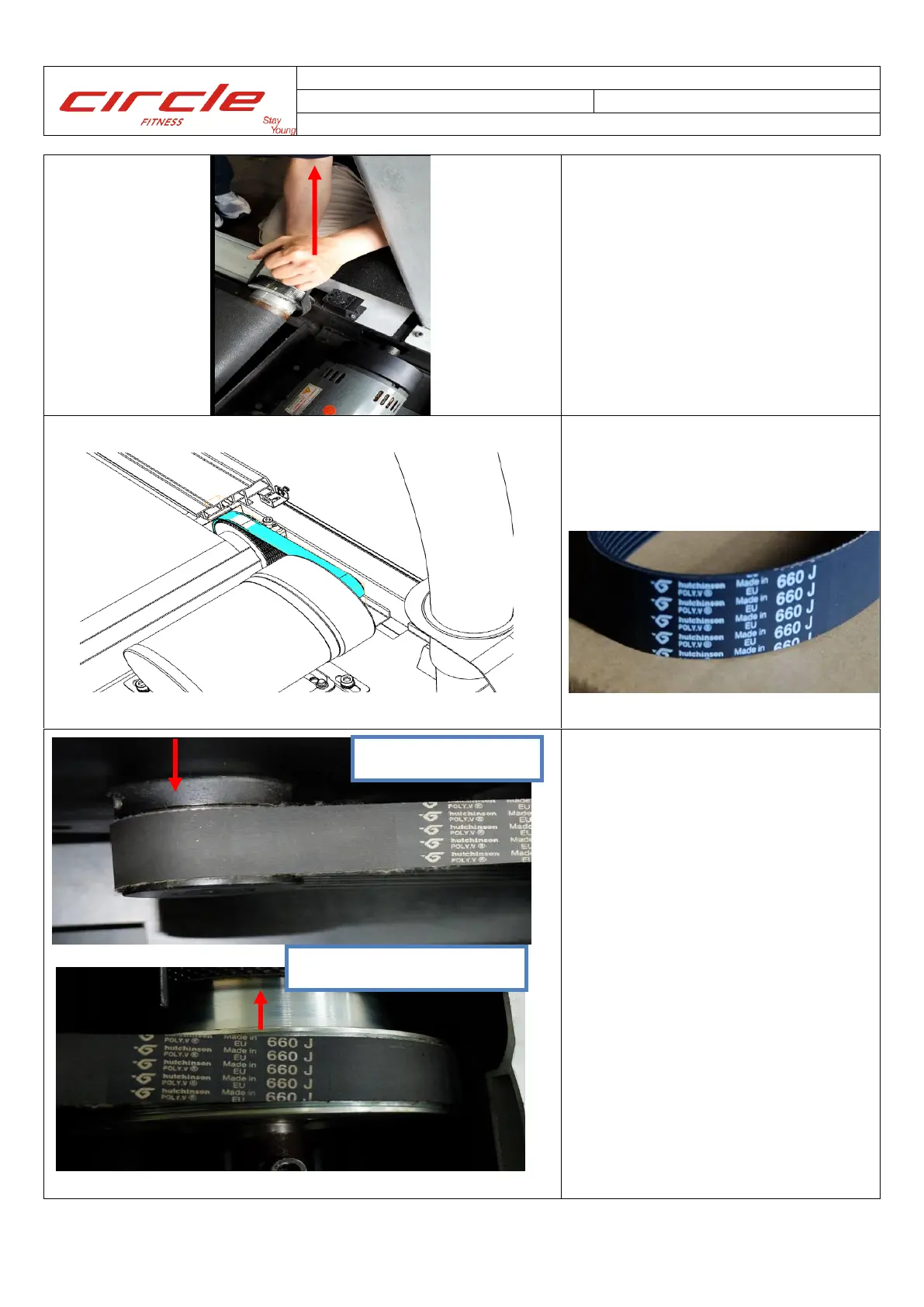

STEP 7:
Lift up the front roller on pulley
side and remove the drive belt
from the front roller.
STEP 8:
Install the new drive belt.
#H041013-000
(660J)
STEP 9:
Checking pulley groove in
V-Belt Drive
The motor pulley:
The V-belt located the motor
pulley and the sheave Grooves
without gap.
The front roller pulley:
The V-belt located the front
roller pulley and the sheave
Grooves has 1 grooves on
each edge..
The motor
pulley
The front roller pulley
