38

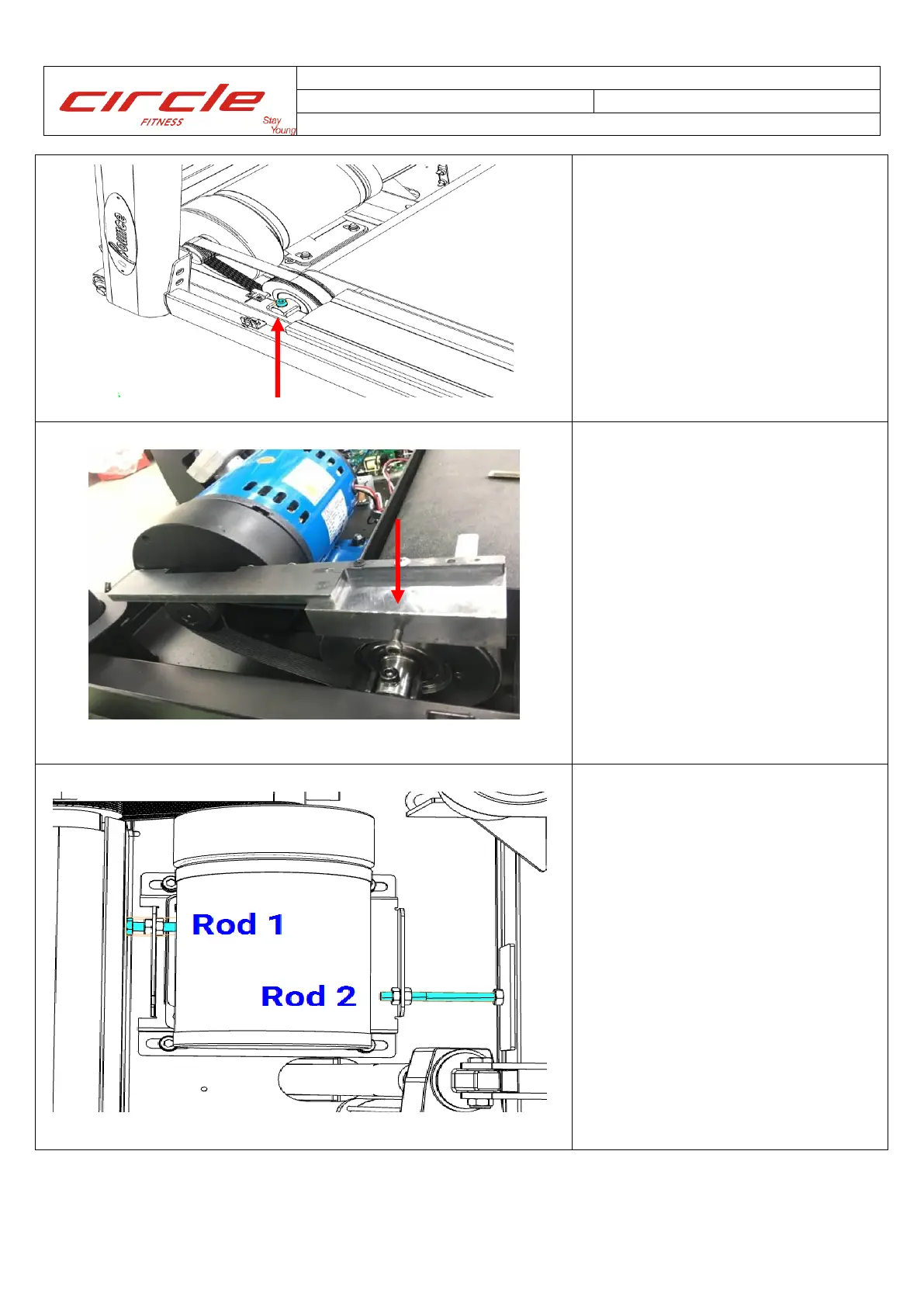

STEP 10:
Secure 2 mounting screws on
the front roller.
STEP 11:
Place and install motor
alignment fixture.
Secure the motor fixture
screw.
STEP 12:
Tighten screw 2 on adjustment
rod 1and release screw 1
which closes motor side for
adjustment via M14 & M17
wrench.
Secure the screw2 to adjust
the belt tension.
The tension value is 240 Hz.
