39

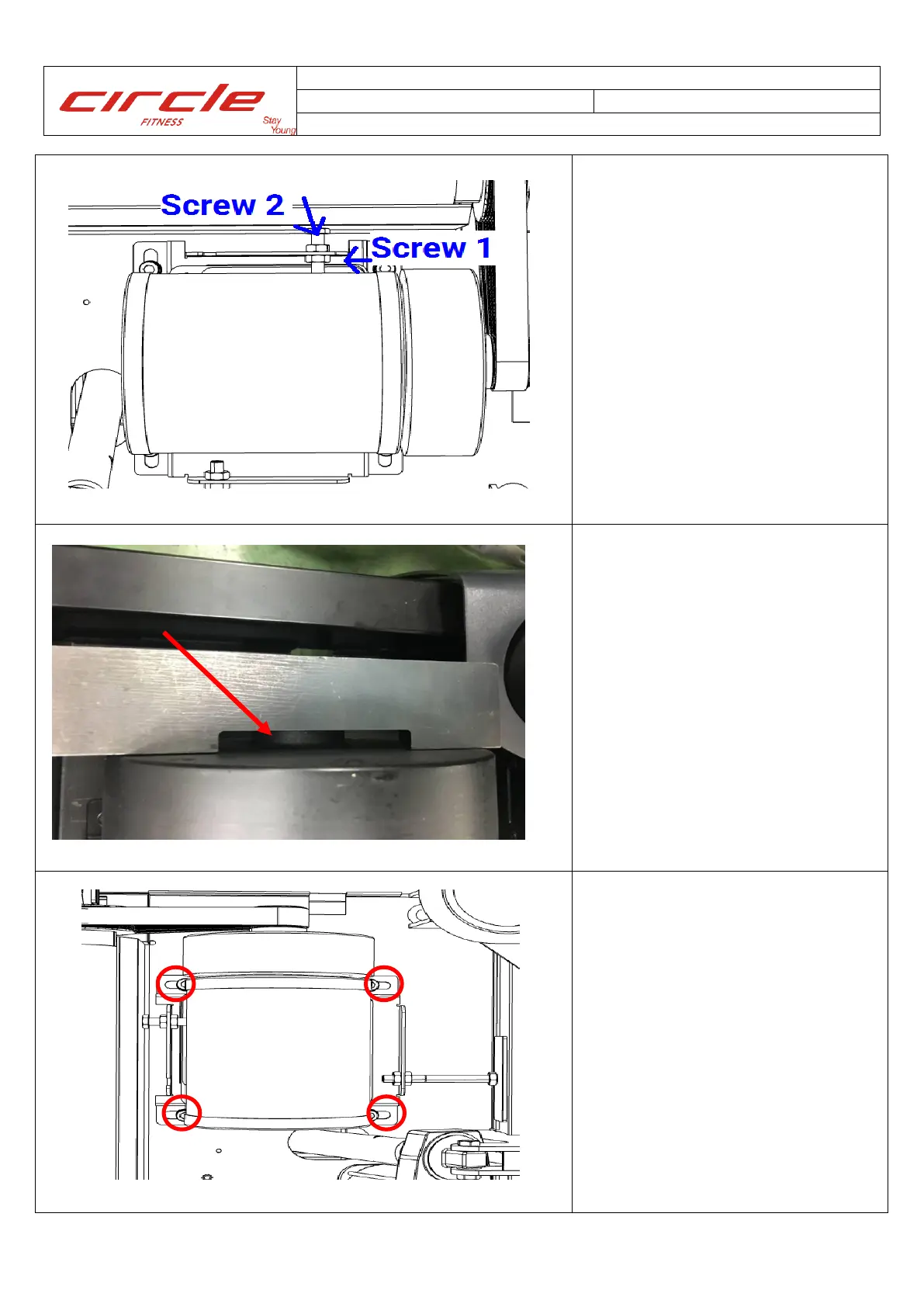

STEP 13:
Tighten screws on adjustment
rod 2 using M17 and M14
wrench.
The tension value is
206~216Hz (500~550N).
STEP 14:
After the rod screws are
locked, confirm the motor
alignment fixture is parallel to
the motor plane.
STEP15:
Secure 4 motor mounting
screws on motor plate via M8
wrench.
Remove the motor alignment
fixture.
