Circutor Raption Series Service Manual

Service Manual 55
Raption
F
Extra power supply
The extra power supply provides enough supply to the Mode 4 control board to perform
a controlled stop of an on-going charging session, in case there is a blackout or the
RCBO of the main supply (Q11.1) triggers.
Depending on the model of Raption chosen, it can be two different components.
In case of having a Raption 50, it is included a SuperCapacitors board and a Raption 50
HV, Raption 50 EVO and Raption 100 includes an electrolytic capacitor buffer module.
Both components allows that the 12Vdc electronics remain supplied for few seconds
when unit is powered OFF.

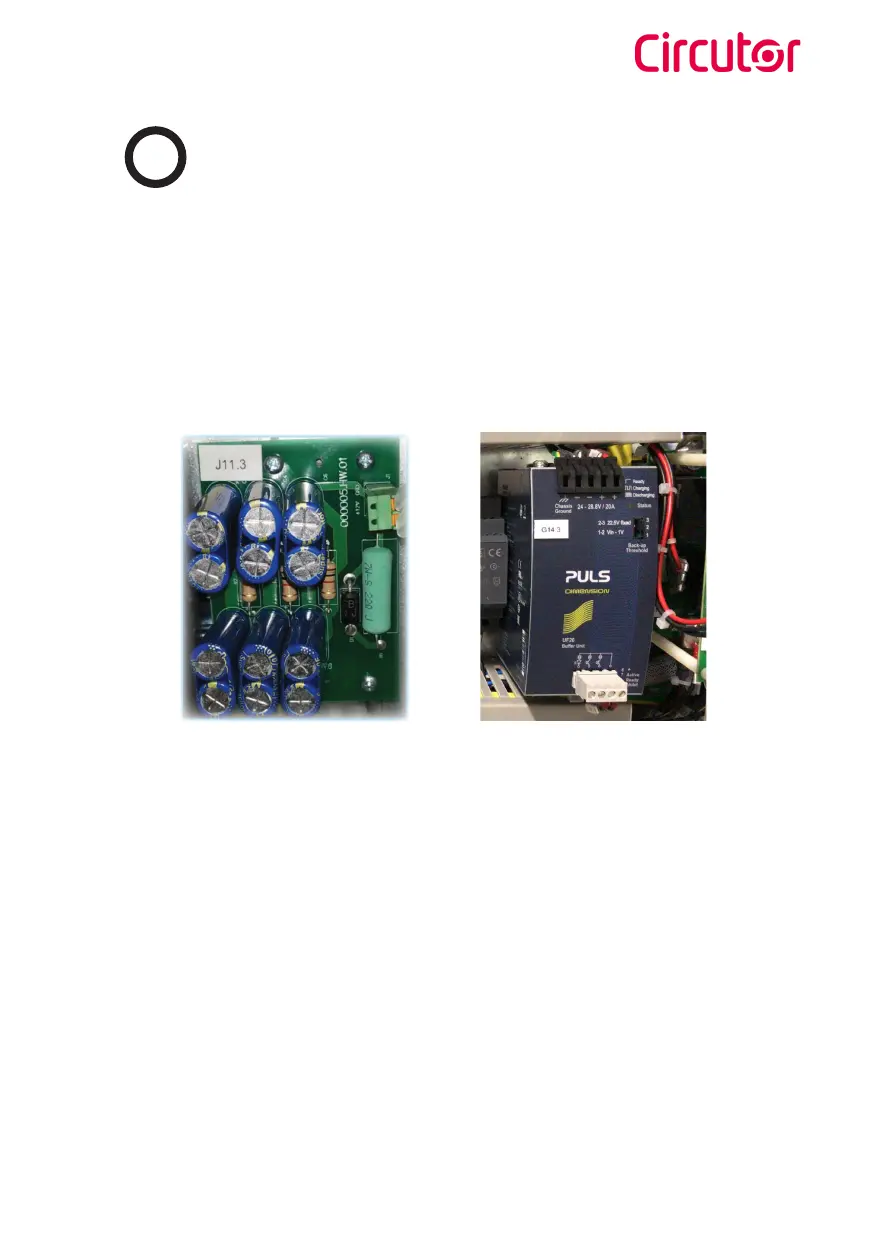

SuperCapacitors board Electrolytic capacitor buffer module
