Other optional components

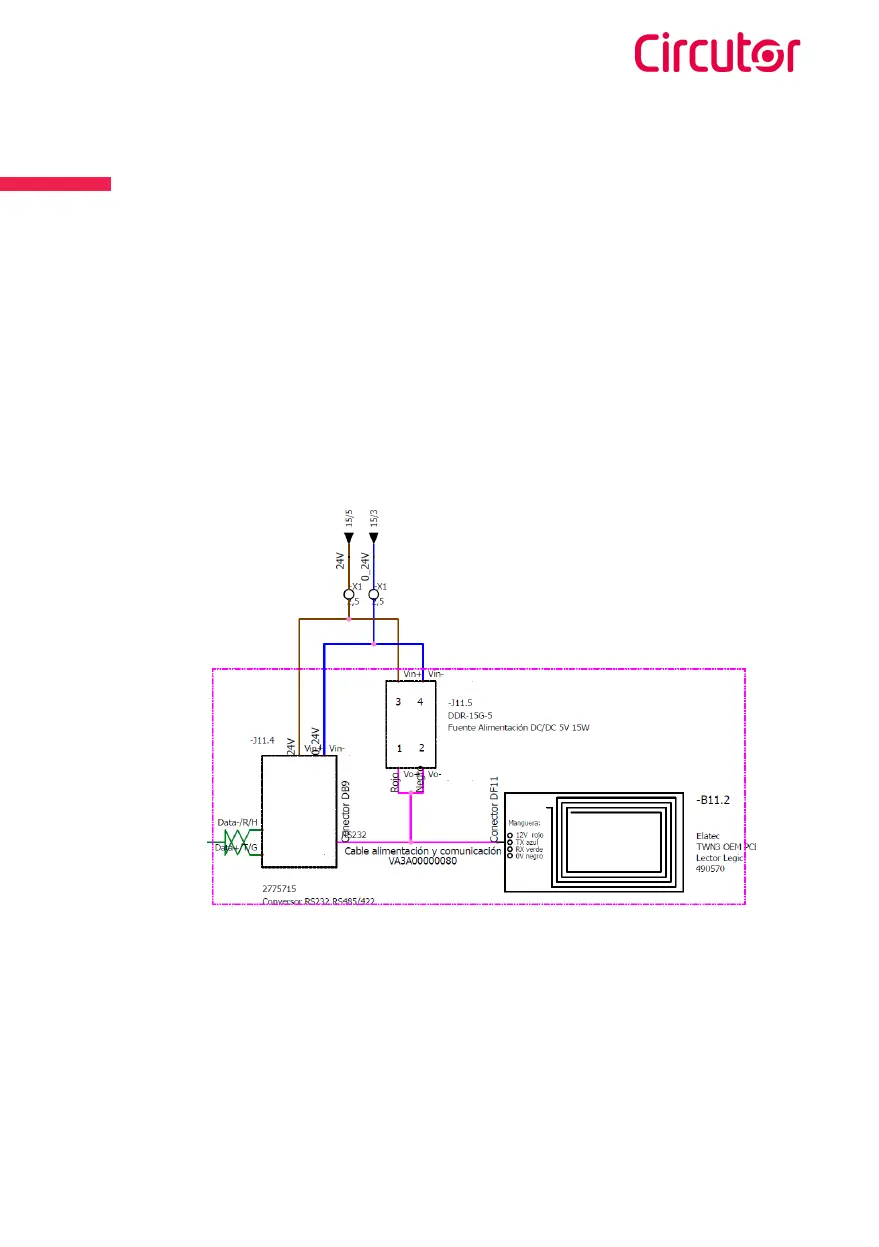

Electrical scheme
This RFID reader has two particular points.
• It is supplied with 5Vdc, so it is necessary a power supply device converting from
24Vdc to 5Vdc.
• It communicates via RS232 protocol. It is necessary to convert this signal to a RS485,
so there is installed a converter in between.
