DC Output Contactors:
There are 5 DC output contactors:
• Two for CHAdeMO cable.
• Two for CCS2 cable.
• One for CCS2 precharge circuit.
Output contactors allow Welding detection function. When one of the contactors is
welded, Mode 4 control board will receive this information and will identify which is the
faulty contactor. An alarm will be generated to avoid incoming charging sessions.

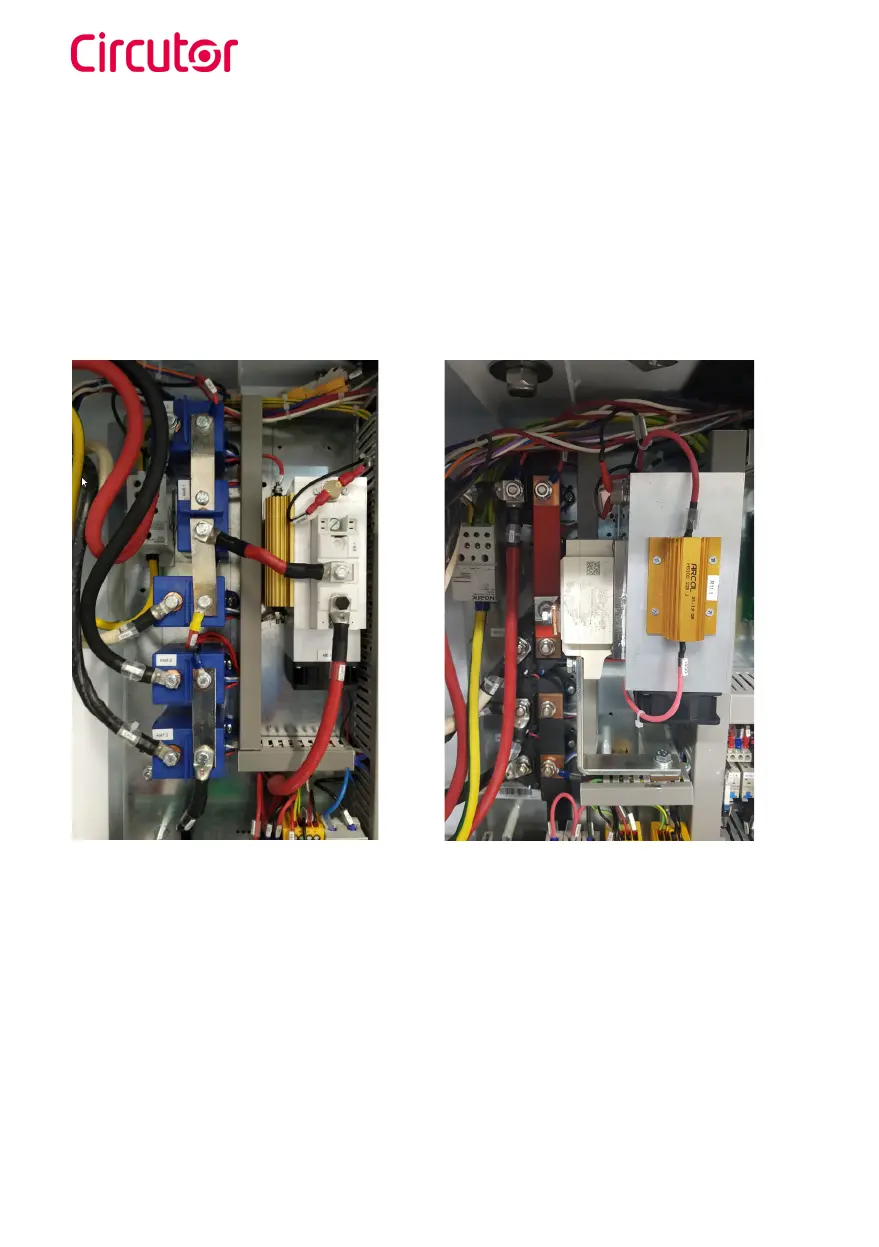

Model for Raption 50 Model for Raption 50 HV, Raption 50 EVO
and Raption 100
