Cirrus SR22T User Manual

7-64 P/N 13772-005
Section 7 Cirrus Design
Systems Description SR22T

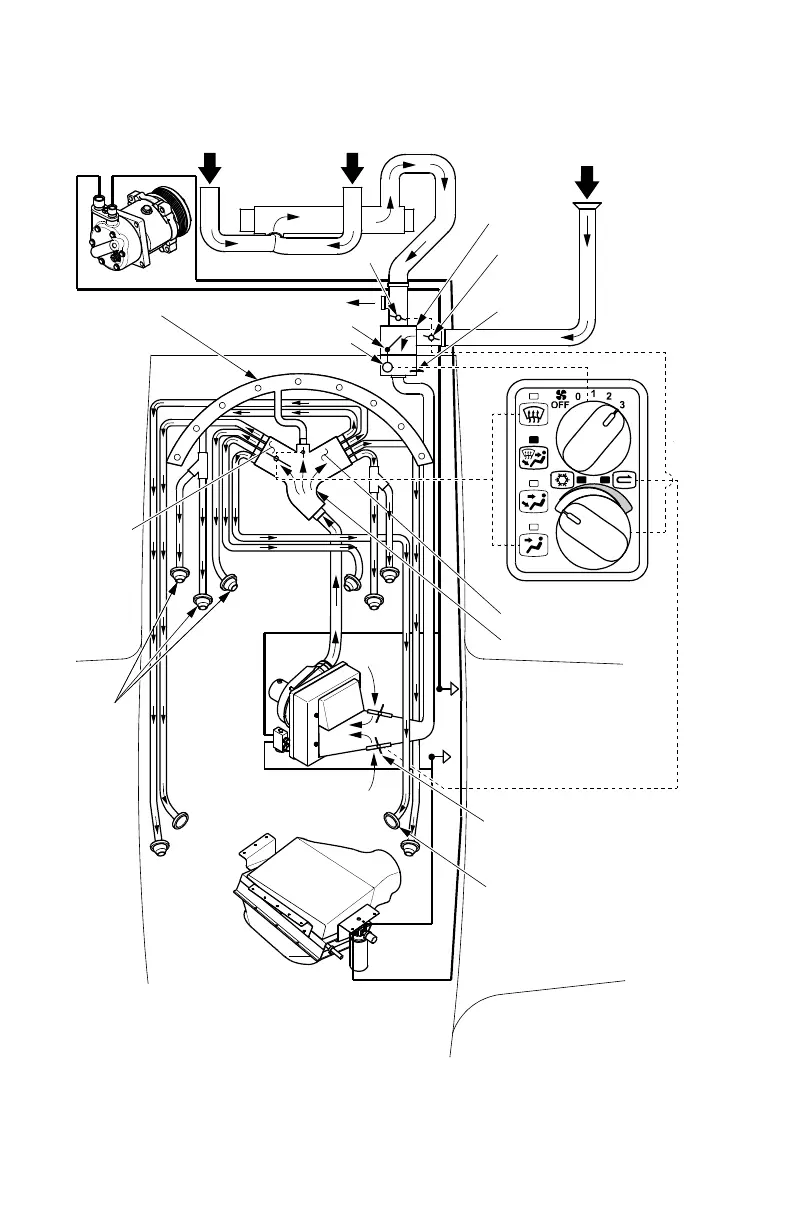

Figure 7-14
Optional Air Conditioning System
RAM AIR RAM AIR
CROSSOVER TUBE
PANEL AIRFLOW
FOOT-WARMER
DIFFUSER
DISTRIBUTION
MANIFOLD
CONTROL PANEL
AIR
GASPER
AIR FLOW VALVE
RAM AIR
FRESH AIR
VALVE
HOT AIR VALVE
S
P
SP
EVAPORATOR
ASSEMBLY
COMPRESSOR
RECIRCULATION
CHECK VALVE
CONDENSER
ASSEMBLY
NOTE: llustration depicts maximum cabin
cooling airflows and selector settings
while on ground or warm outside air
temperatures.
FLOOR
AIRFLOW
WINDSHIELD
DIFFUSER
SR22_FM07_3262
MIXING
CHAMBER
SERVO MOTOR
CONTROLLER
TEMPERATURE
SENSOR
