Cirrus SR22T User Manual

44 of 52 P/N 13772-151
Section 9 Cirrus Design
Supplements SR22T
Figure -2
21
25
LEGEND
1. LH Outbd Panel
2. LH Vent
3. LH Inbd Panel
4. LH Filler Cap
5. LH Level Sender
6. LH Level Switch
7. Windshield Nozzles
8. Slinger Ring
9. 3-Way Valve
10. RH Level Switch
11. RH Inbd Panel
12. RH Level Sender
13. RH Filler Cap
SR22_FM09_2965
14. Stall Transducer
15. RH Vent
16. RH Outbd Panel
17. RH Drain Valve
18. RH Tank Strainer
19. In-Line Strainer
20. Flow Transducer
21. Pump Control Unit
22. Metering Pump 1
23. Metering Pump 2
24. High Pressure Switch
25. Low Pressure Switches
26. RH H Stab Panel
27. RH Elevator Tip Panel
28. V Stab Panel
29. LH Elevator Tip Panel
30. LH H Stab Panel
31. Tail Proportioning Unit
32. Filter Assembly
33. Windshield Pump
34. Solenoid Valve
35. Main Proportioning Unit
36. LH Tank Strainer
37. LH Drain Valve
13456789 10 1211 14 1613 2 15
17
18
19
20
22
23
24
26
27
28
29
30
31
32
33
34
35
36
37

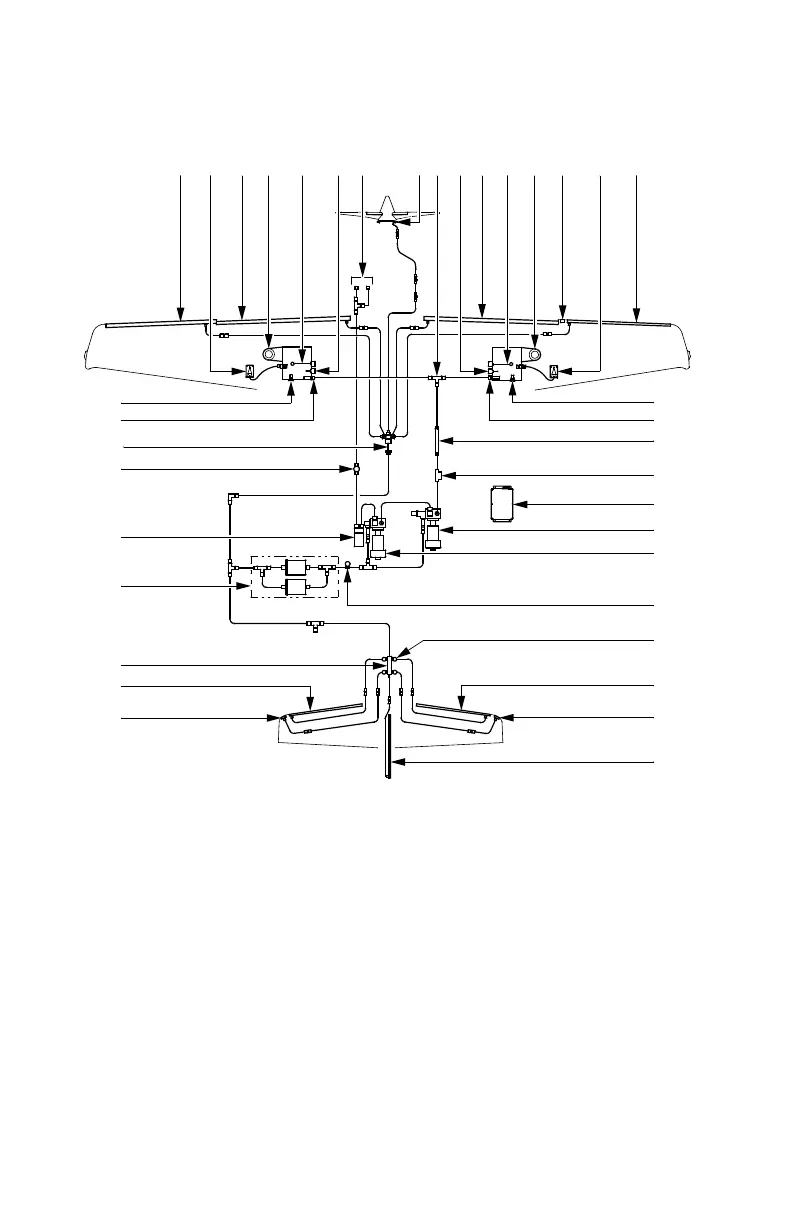

System Schematic
Original Issue: 02-01-13

Cirrus SR22T Specifications

General

Manufacturer	Cirrus Aircraft
Engine	Continental TSIO-550-K
Horsepower	315 hp
Max Takeoff Weight	3, 600 lbs
Service Ceiling	25, 000 ft
Cabin Width	49 in
Cabin Height	50 in
Seating Capacity	4
Avionics	Cirrus Perspective+ by Garmin
Category	Single-engine piston aircraft
Propeller	Hartzell 3-blade composite
Wingspan	38 ft 4 in
Length	26 ft
Height	8 ft 11 in
Maximum Cruise Speed	213 KTAS
Fuel Capacity	92 gallons
Stall Speed	64 knots
Safety Features	Cirrus Airframe Parachute System (CAPS)
Cruise Speed	183 knots
