Chapter 3 Installation
Communications

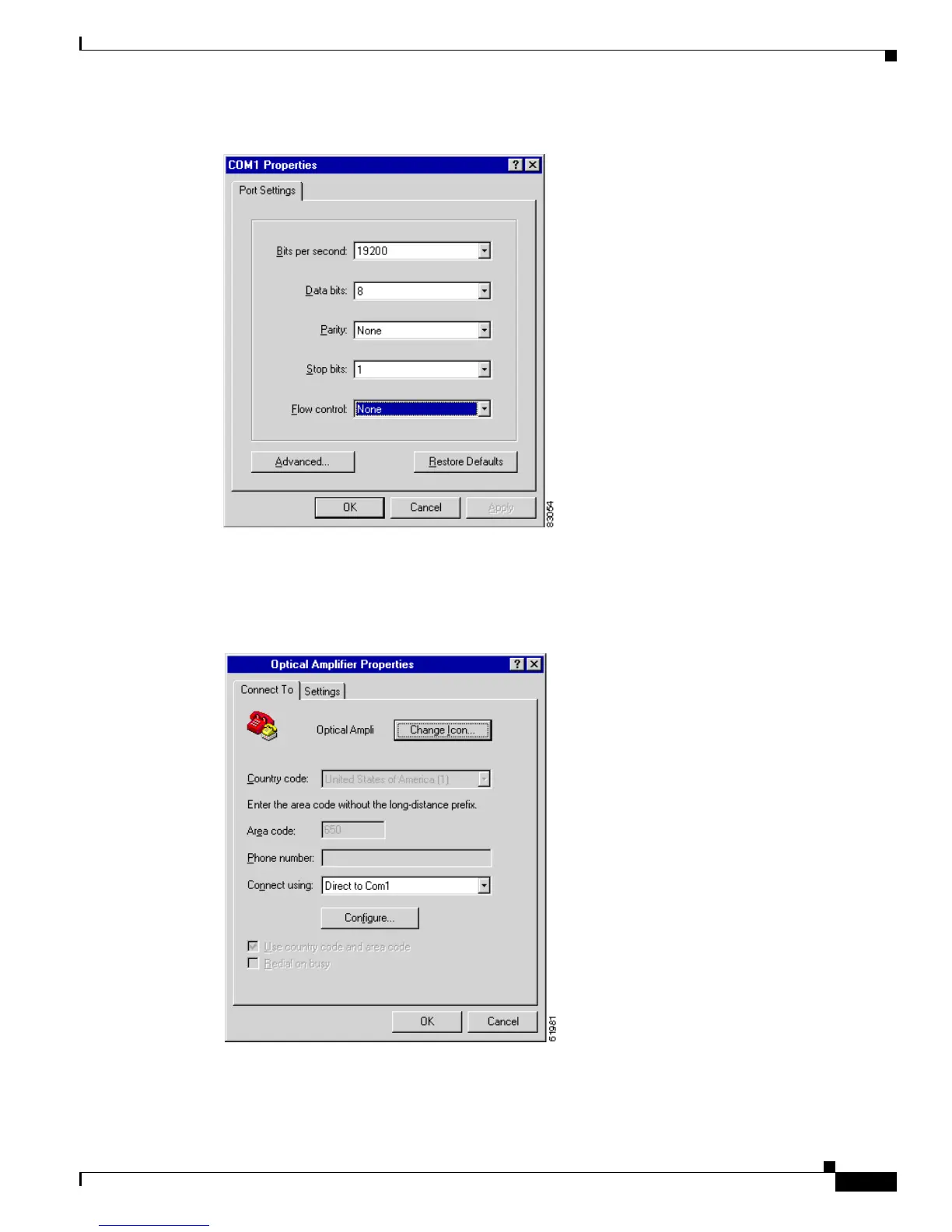

Figure 3-3 HyperTerminal COM1 Properties Dialog Box
Step 7
In the HyperTerminal main window, click File > Properties.
Step 8 Click Connect To tab in the Optical Amplifier Properties dialog box as shown in Figure 3-4.
Figure 3-4 Optical Amplifier Properties Dialog Box (Connect To Tab)
Step 9
Ensure that Direct to Com1 is selected in the Connect using field.
Step 10 Click Settings (Figure 3-5 on page 3-10) and click ASCII Setup.
