FINAL DRAFT - CISCO CONFIDENTIAL
3-10
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 3 Installation
Communications

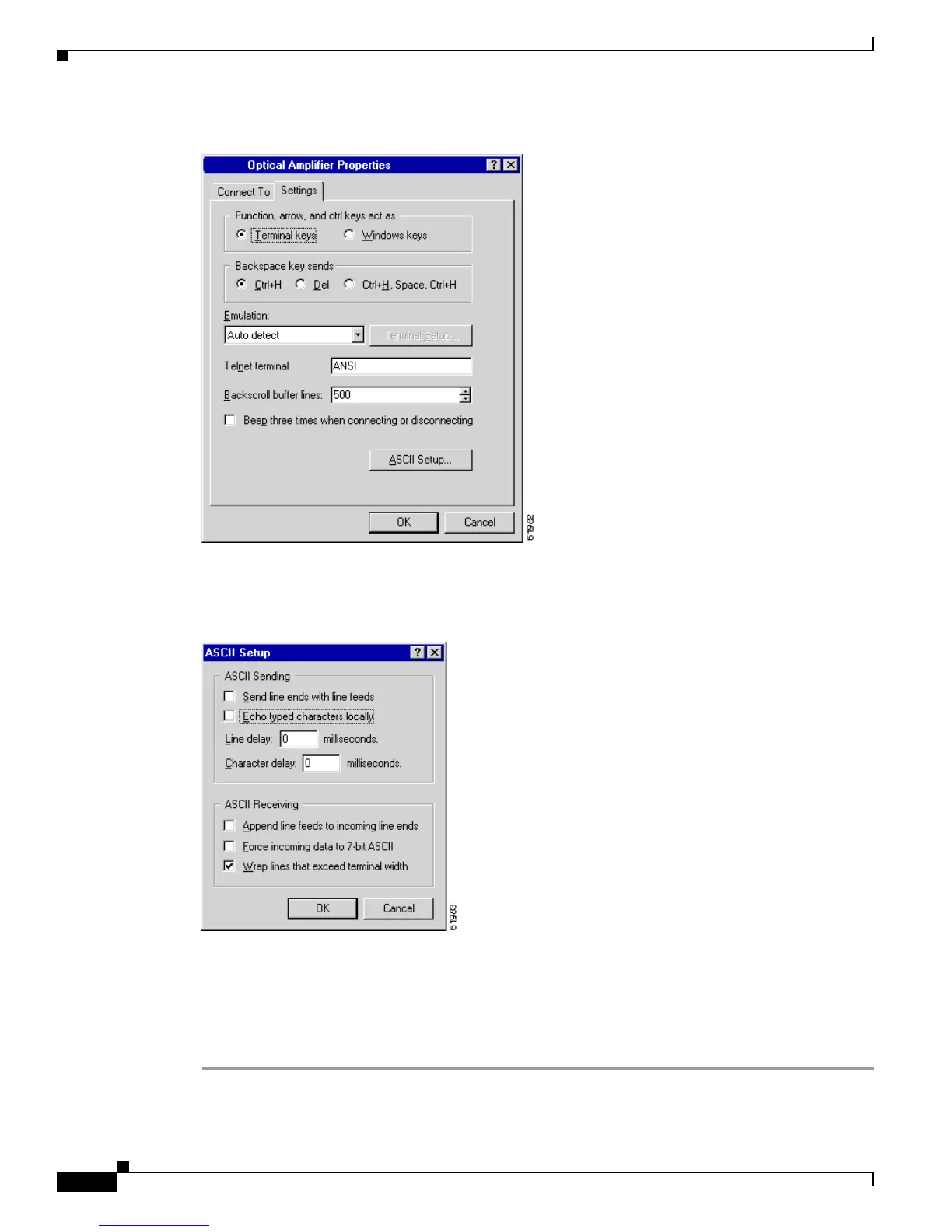

Figure 3-5 Optical Amplifier Properties Dialog Box (Settings Tab)
Step 11
Configure the ASCII Setup window as shown in Figure 3-6. Click OK when done.
Figure 3-6 HyperTerminal ASCII Setup Dialog Box
Step 12
Click OK to return to the main HyperTerminal window.
The ONS 15216 EDFA2 login screen appears. The appearance depends on the shell the
ONS 15216 EDFA2 is set to (TL1 is the default shell). See Log In via RS-232 (EIA/TIA-232) Port
Using HyperTerminal section on page 4-1 for the login procedure in ASH shell and Log In via RS-232
(EIA/TIA-232) Port Using HyperTerminal section on page 8-1 for the login procedure in TL1 shell.
