Cisco Nexus 2000 Series Hardware Installation Guide
Chapter 1 Overview
Chassis Features

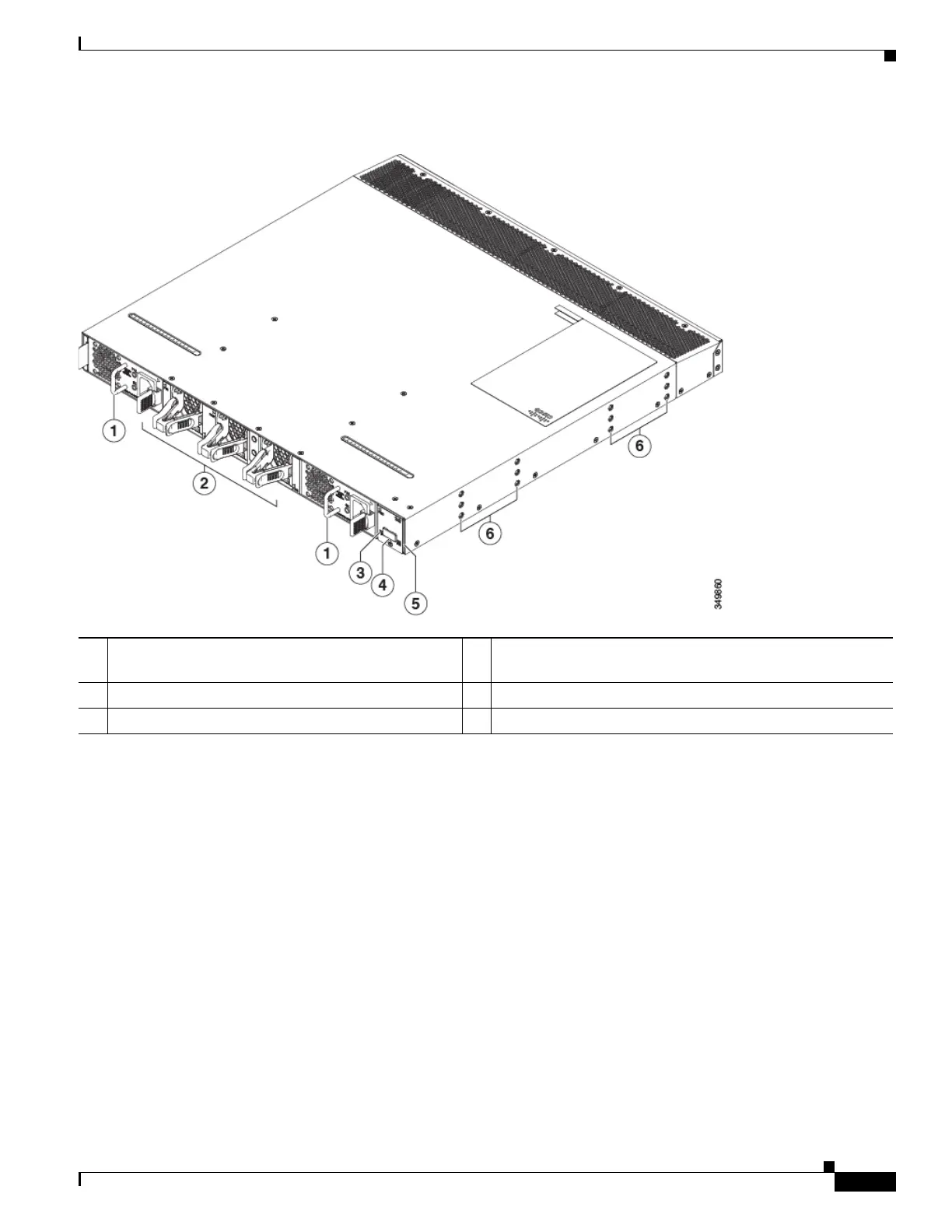

Figure 1-3 Features on the Fan-Module Side of the Cisco Nexus 2348TQ and 2348TQ-E FEX Chassis
1 Power supply modules (one or two, hot swappable)
(AC power supply shown)
4 Management/Console HDMI port
2 Fan modules (three, hot swappable) 5 Status LED
3 ID LED 6 Six screw holes for attaching a mounting bracket
