Cisco Nexus 2000 Series Hardware Installation Guide
Chapter 1 Overview
Chassis Features
Note On Cisco Nexus 7000 Series switches, for a fully dedicated 10-Gbps bandwidth through a M1 Series
32-port 10-Gigabit Ethernet I/O module (either the N7K-M132XP-12 or N7K-M132XP-12L), connect
each FEX to one port in a set of four shared ports on the module (you connect each set of shared ports
to one FEX). If you are using the M2 Series 24-port, 10-Gigabit Ethernet I/O module
(N7K-M224XP-23L), you can connect the FEX to any of its ports for a fully dedicated bandwidth. If you
are using the F2 Series 48-port, 10-Gigabit Ethernet I/O module (N7K-F248XP-25), use the connectivity
rule order (connect the same port numbers for each port group (for example, if you connect ports 1 and
2 of a port-group, then connect the same ports of another port group).
Cisco Nexus 2248PQ FEX Chassis Features
The Cisco Nexus 2248PQ (N2K-C2248PQ) supports FCoE and Data Center Bridging technologies, and
it has the following interfaces:
• 48 1- and 10-Gigabit Ethernet (SFP+) host-facing ports
• 4 40-Gigabit (QSFP+) parent-switch facing fabric ports (each port can be split to four 10-Gigabit
ports)
• 1 management or console HDMI port
The features on the fan-module side of this FEX chassis are identified in Figure 1-9, and the features on
the port side of this chassis are identified in Figure 1-10.

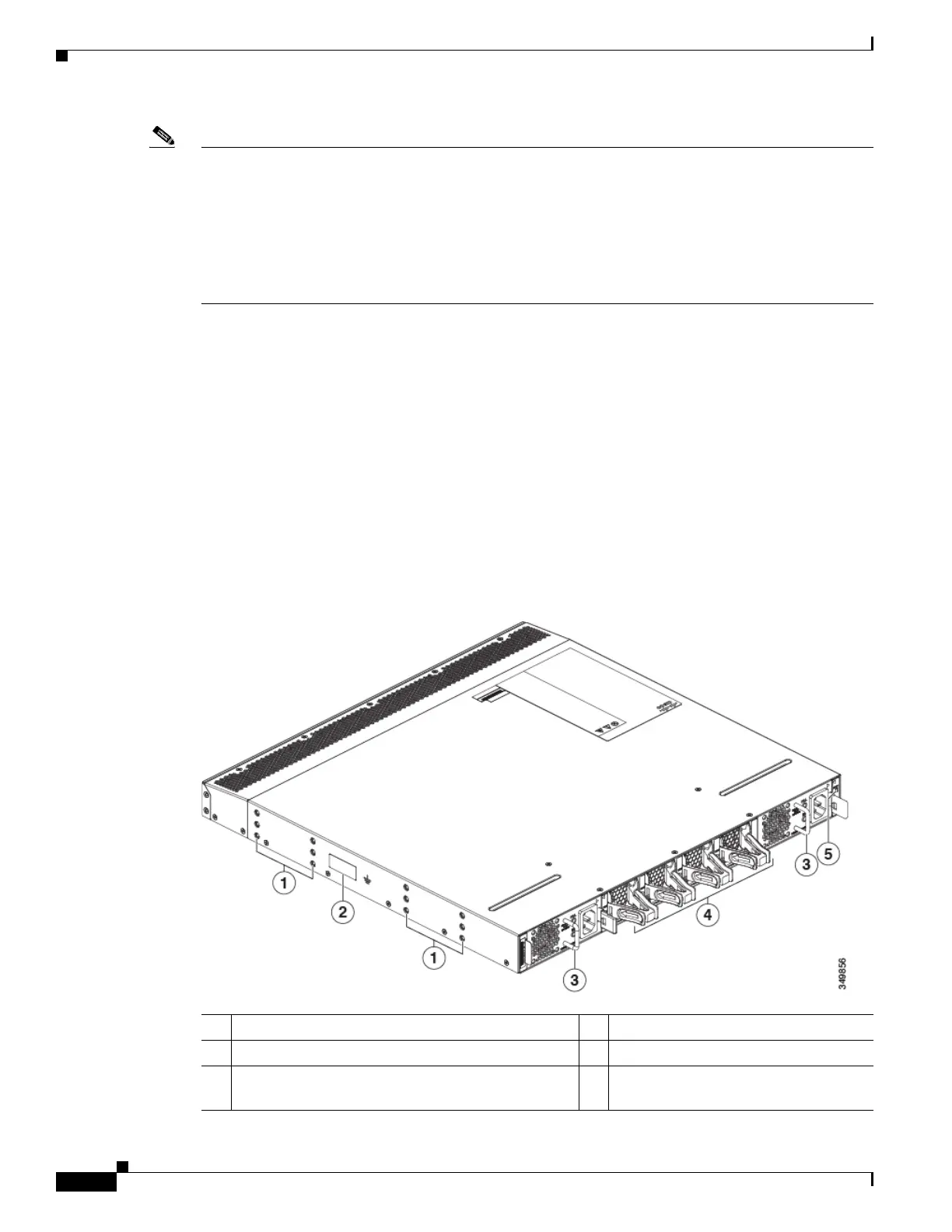

Figure 1-9 Features on the Fan-Module Side of the Cisco Nexus 2248PQ FEX Chassis
1 Screw holes (6) for attaching a mounting bracket. 4 Fan modules (4)
2 Grounding pad 5 ID and Status LEDs
3 AC or DC power supply (1 or 2) (AC power supply
shown)
