Cisco Nexus 2000 Series Hardware Installation Guide
Chapter 1 Overview
Chassis Features

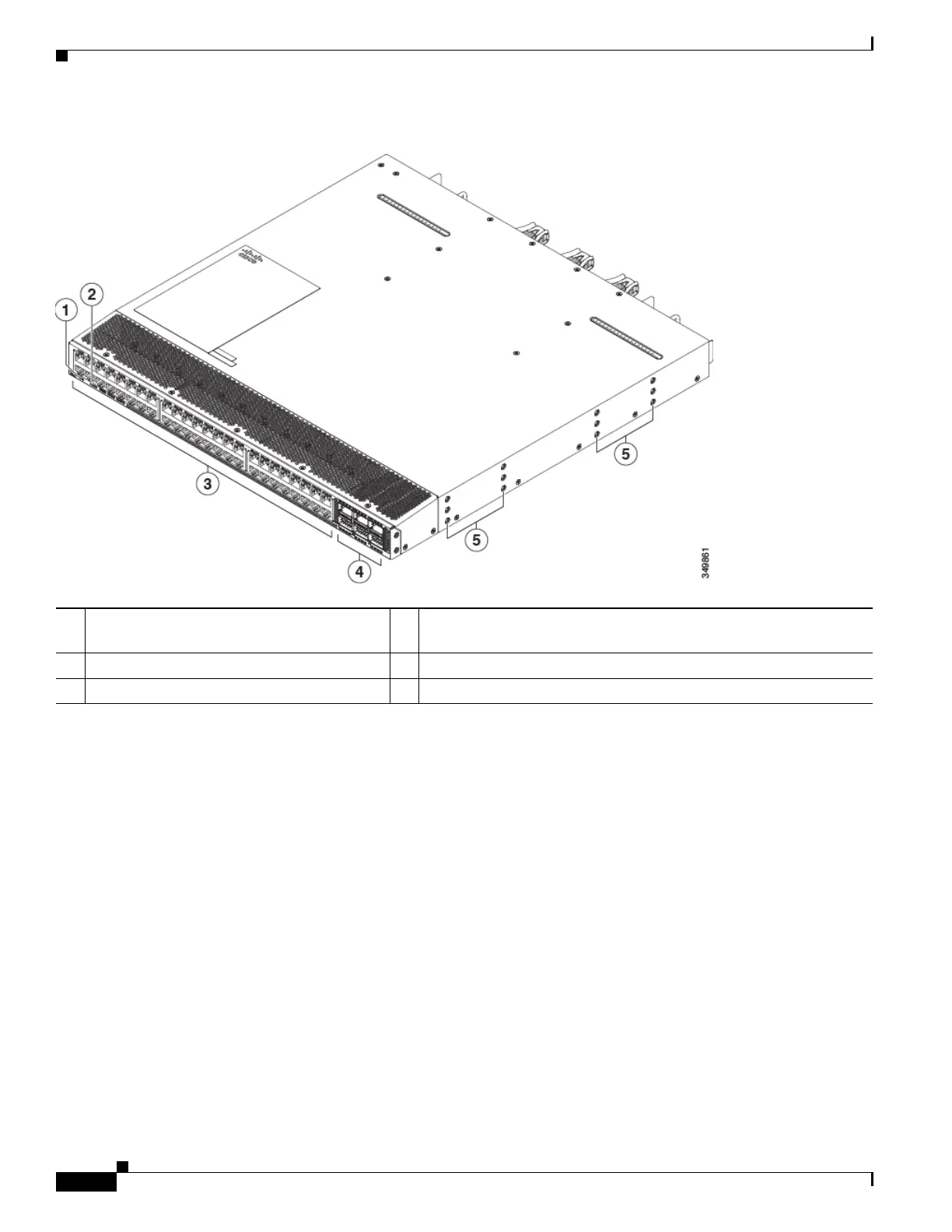

Figure 1-4 Features on the Port Side of the Cisco Nexus 2348TQ and 2348TQ-E FEX Chassis
Cisco Nexus 2332TQ FEX Chassis Features
The Cisco Nexus 2332TQ (N2K-2332TQ) FEX supports FCoE and has the following interfaces:
• 32 10GBASE-T host-facing ports that support 100-Megabit and 1/10-Gigabit speeds
• 4 40-Gigabit parent-switch facing fabric ports that support BiDi optics.
• 1 HDMI management/console port
The features on the fan-module side of this FEX chassis are identified in Figure 1-5, and the features on
the port side of this chassis are identified in Figure 1-6.
1 ID LED 4 40-Gigabit ports (six) for QSFP+ transceivers and 40-Gigabit
QSFP+ to four 10-Gigabit SFP+ breakout cables
2 Status LED 5 Six screw holes for mounting brackets
3 Fixed 100M/1G/10GBASE-T Ports (48)
