1-16
Cisco Nexus 2000 Series Hardware Installation Guide
Chapter 1 Overview
Chassis Features

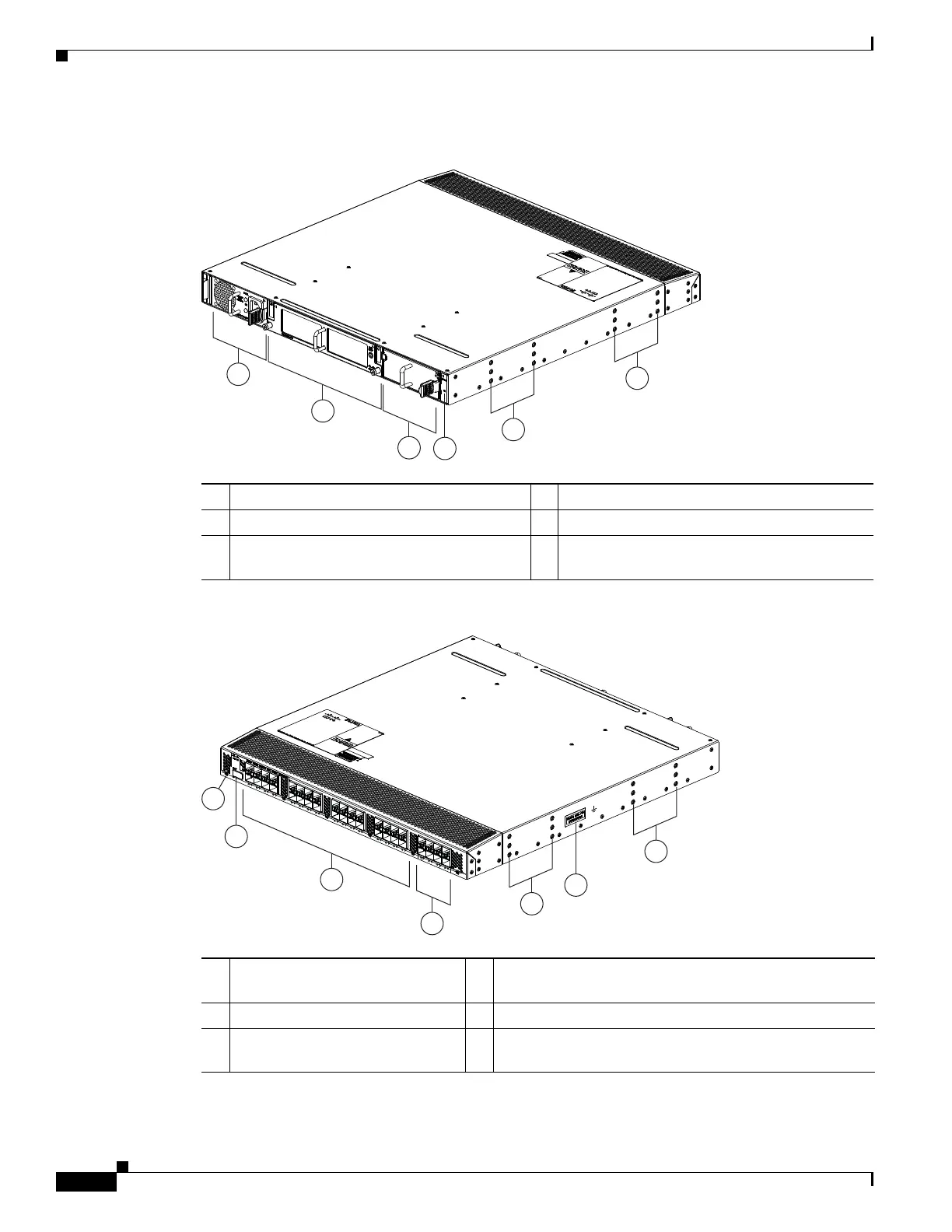

Figure 1-11 Features on the Fan Module Side of the Cisco Nexus 2232TM and 2232TM-E Chassis
Figure 1-12 Features on the Port Side of the Cisco Nexus 2232TM and 2232TM-E Chassis
2
1
3
5
5
4
239279
1 Power supply 4 Status (top) and ID (bottom) LEDs
2 Fan tray 5 6 screw holes for attaching a mounting bracket
3 Power supply (blank shown for installations
with only one power supply)
1 Status (top) and ID (bottom) LEDs 4 10-Gigabit Ethernet parent-switch facing fabric ports for
SFP+ transceivers (8)
2 Management/console HDMI port 5 6 screw holes for attaching a mounting bracket
3 1- /10-GBASE-T host-facing ports
(32) for RJ-45 connectors
6 Grounding pad
3
2
4
239278
1
5
5
6
