Cisco ME 2400 Ethernet Access Switch Hardware Installation Guide
OL-7678-01
Chapter 2 Switch Installation
Installing the Switch
Attaching Brackets to 19-Inch Racks
These figures show how to attach brackets to 19-inch racks:
• Attaching Brackets for 19-Inch Racks to a Cisco ME Switch, Front Panel Forward, Figure 2-3 on
page 2-10
• Attaching Brackets for 19-Inch Racks to a Cisco ME Switch, Rear Panel Forward, Figure 2-4 on
page 2-10
• Attaching Brackets for 19-Inch Telco Racks to a Cisco ME Switch, Figure 2-5 on page 2-11

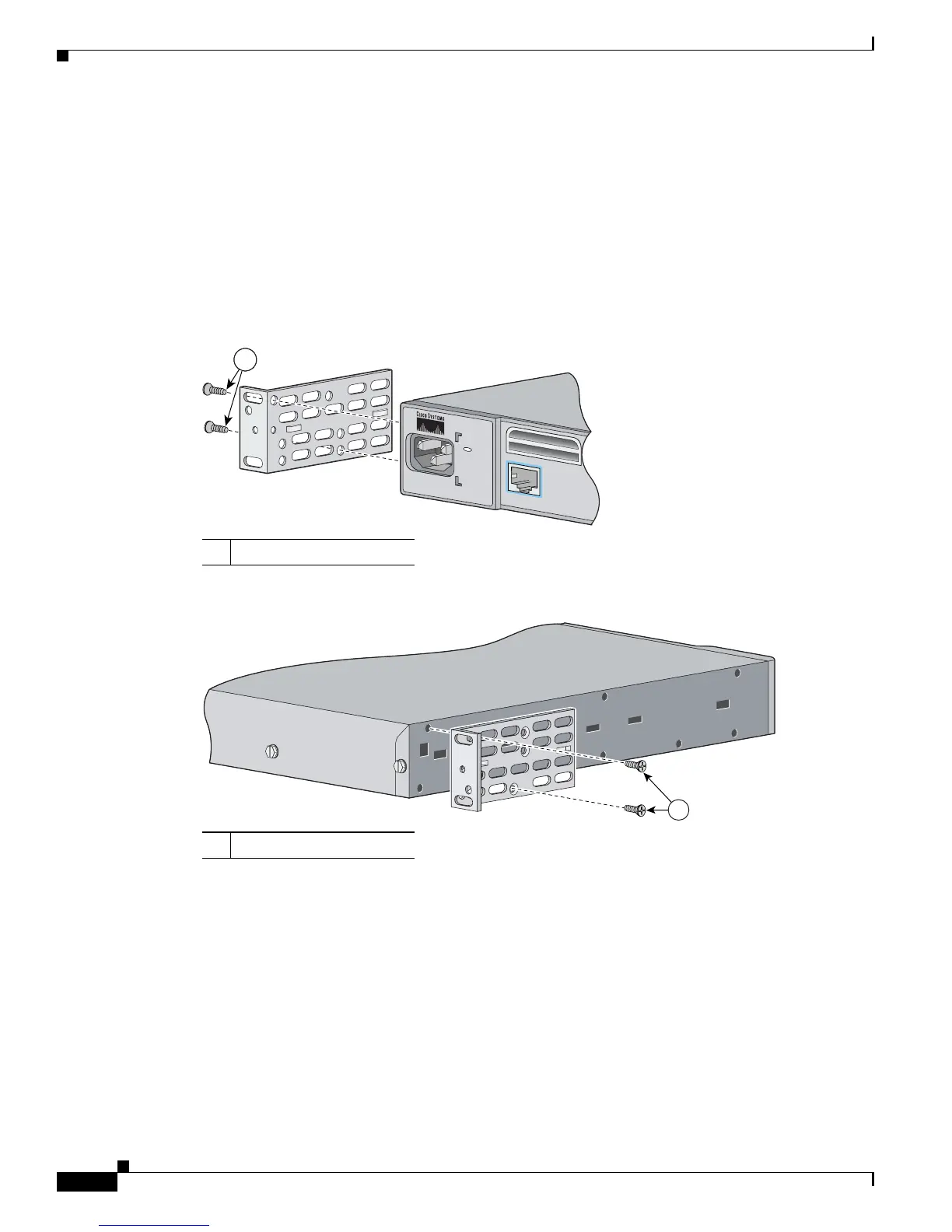

Figure 2-3 Attaching Brackets for 19-Inch Racks to a Cisco ME Switch, Front Panel Forward
Figure 2-4 Attaching Brackets for 19-Inch Racks to a Cisco ME Switch, Rear Panel Forward
1 Phillips flat-head screws
1
CONSOLE
S
Y
S
T
E
M
R
A
T
IN
G
1
0
0
-2
4
0
V
~
1
A
-0
.5
A
, 5
0
-6
0
H
Z
132664
1 Phillips flat-head screws
132666
1
