Chapter 2 Switch Installation
Installing the Switch

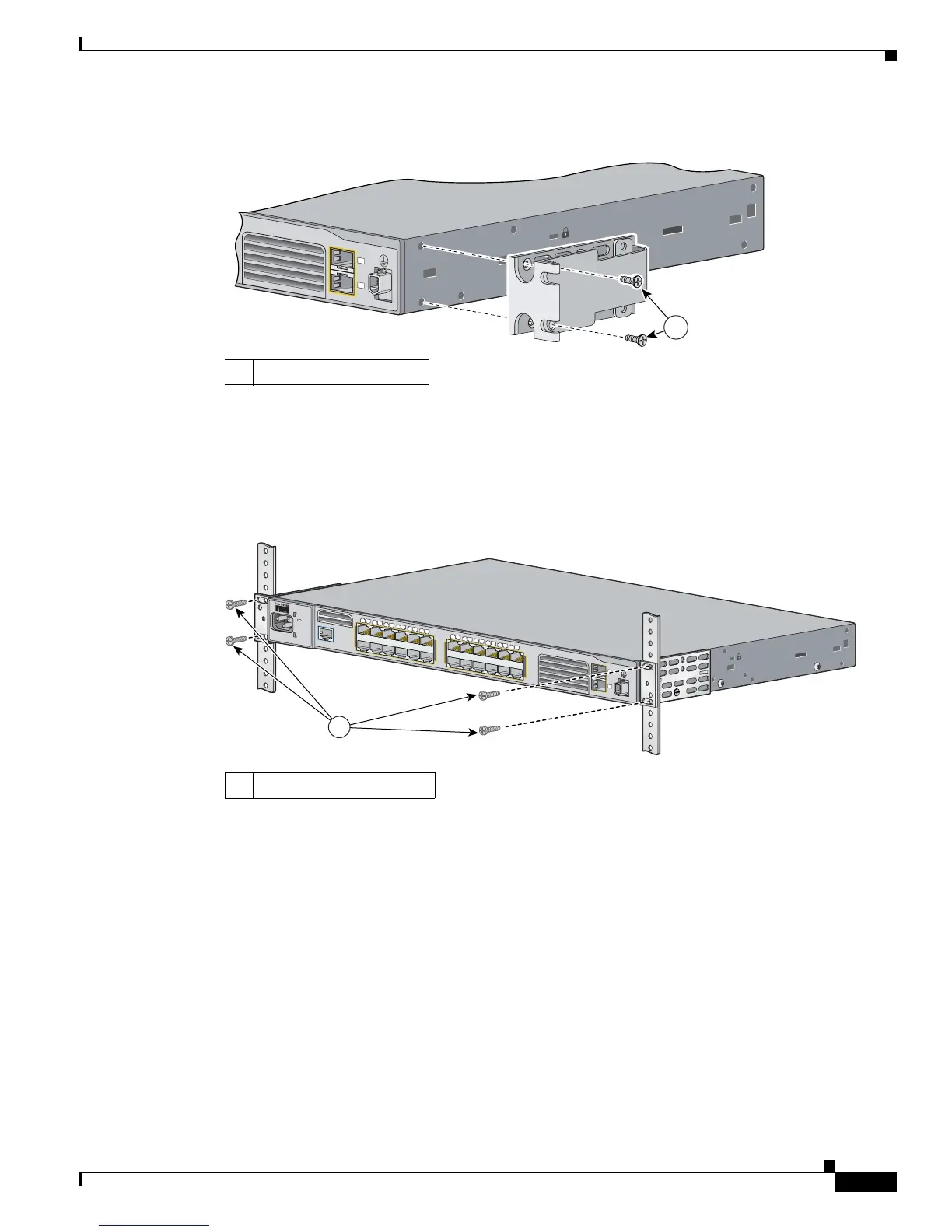

Figure 2-14 Attaching Brackets for ETSI Telco Racks to a Cisco ME Switch
Mounting the Switch in a Rack
After the brackets are attached to the switch, use the four supplied number-12 Phillips machine screws
to securely attach the brackets to the rack, as shown in Figure 2-15.
Figure 2-15 Mounting the Cisco ME Switch in a Rack
After the switch is mounted in the rack, you need to do these tasks to complete the installation:
• Power on the switch. See the “Verifying Switch Operation” section on page 2-7.
• Connect to a 10/100 port and either run the Initial Configuration Dialog or use the CLI to set up your
switch. See the Cisco ME 3400 and ME 2400 Ethernet Access Switches Getting Started Guide for
instructions.
• Connect to the front-panel ports. See the “Connecting to the 10/100 Ports” section on page 2-22 and
the “Connecting to SFP Modules” section on page 2-23 to complete the installation.
For configuration instructions about using the CLI setup program, go to Appendix D, “Configuring the
Switch with the CLI-Based Setup Program.”
