2-23
Cisco ME 2400 Ethernet Access Switch Hardware Installation Guide
OL-7678-01
Chapter 2 Switch Installation
Connecting to SFP Modules
Step 3 Reconfigure and reboot the connected device, if necessary.
Step 4 Repeat Steps 1 through 3 to connect each device.
Connecting to SFP Modules
This section describes how to connect to SFP modules. For instructions on how to connect to fiber-optic
SFP modules, see the “Connecting to Fiber-Optic SFP Modules” section. For instructions on how to
connect to copper 1000BASE-T SFP modules, see the “Connecting to 1000BASE-T SFP Modules”
section.
For instructions about how to install or remove an SFP module, see the “Installing and Removing SFP
Modules” section on page 2-18.
Connecting to Fiber-Optic SFP Modules
Follow these steps to connect a fiber-optic cable to an SFP module:
Warning
Class 1 laser product.
Statement 1008
Caution Do not remove the rubber plugs from the SFP module port or the rubber caps from the fiber-optic cable
until you are ready to connect the cable. The plugs and caps protect the SFP module ports and cables
from contamination and ambient light.
Before connecting to the SFP module, be sure that you understand the port and cabling stipulations in
the “Installation Guidelines” section on page 2-4 and in the “SFP Module Slots” section on page 1-4.
See Appendix B, “Connector and Cable Specifications,” for information about the LC on the
SFP module.
Step 1 Remove the rubber plugs from the module port and fiber-optic cable, and store them for future use.
Step 2 Insert one end of the fiber-optic cable into the SFP module port (see Figure 2-25).

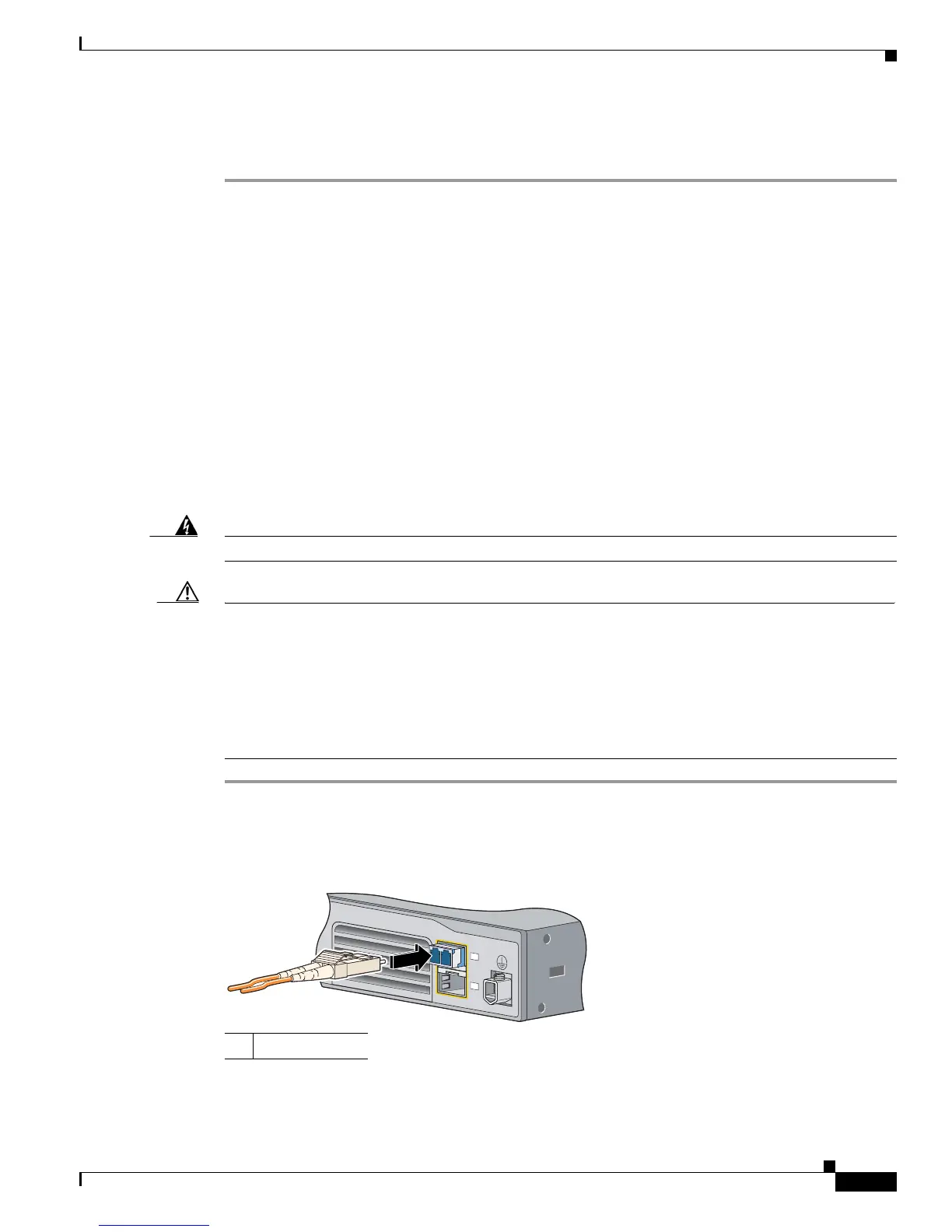

Figure 2-25 Connecting to a Fiber-Optic SFP Module Port
Step 3
Insert the other cable end into a fiber-optic connector on a target device.
1 LC connector
132679
C
isco M
E
34
00
S
E
R
IE
S
1
2
