Cisco ME 2400 Ethernet Access Switch Hardware Installation Guide
OL-7678-01
Appendix B Connector and Cable Specifications
Cable and Adapter Specifications

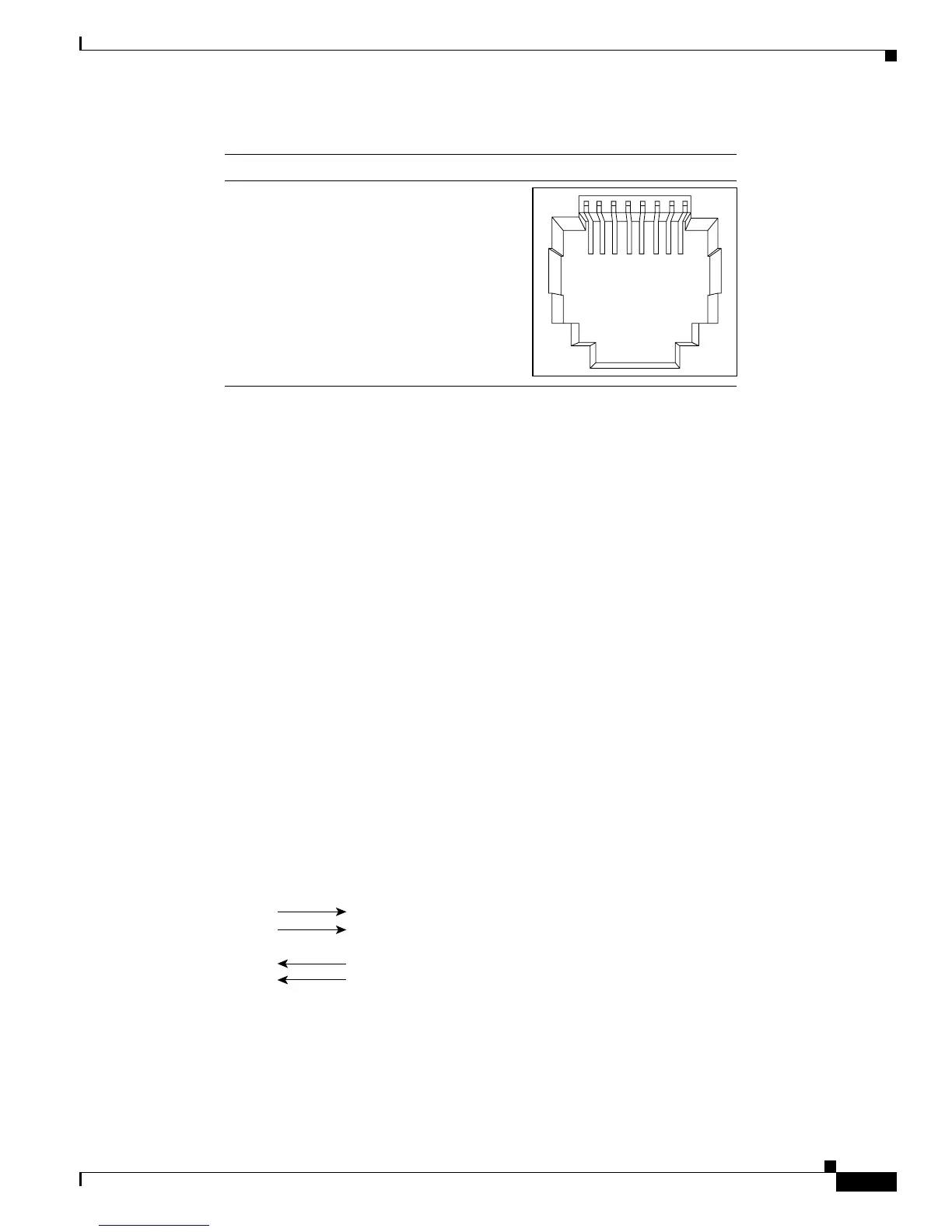

Figure B-3 Copper SFP Module RJ-45 Connector
Console Port
The console port uses an 8-pin RJ-45 connector, which is described in Table B-1 and Table B-2. If you
did not order a console cable with your switch, you need to provide an RJ-45-to-DB-9 adapter cable to
connect the console port of the switch to a console PC. You need to provide a RJ-45-to-DB-25 female
DTE adapter if you want to connect the switch console port to a terminal. You can order a kit (part
number ACS-DSBUASYN=) containing that adapter from Cisco. For console port and adapter pinout
information, see Table B-1 and Table B-2.
Cable and Adapter Specifications
These sections describe the cables and adapters used with Cisco ME switches.
Two Twisted-Pair Cable Pinouts
Figure B-4 and Figure B-5 show the schematics of two twisted-pair cables for connecting to 10BASE-T-
and 100BASE-TX-compatible devices.
Figure B-4 Two Twisted-Pair Straight-Through Cable Schematic
60915
231 45678Pin Label
1
2
3
4
5
6
7
8
TP0+
TP0-
TP1+
TP2+
TP2-
TP1-
TP3+
TP3-
Switch
3 TD+
6 TD–
1 RD+
2 RD–
Router or PC
3 RD+
6 RD–
1 TD+
2 TD–
H5578
