Appendix C Connecting to DC Power
Grounding the Switch

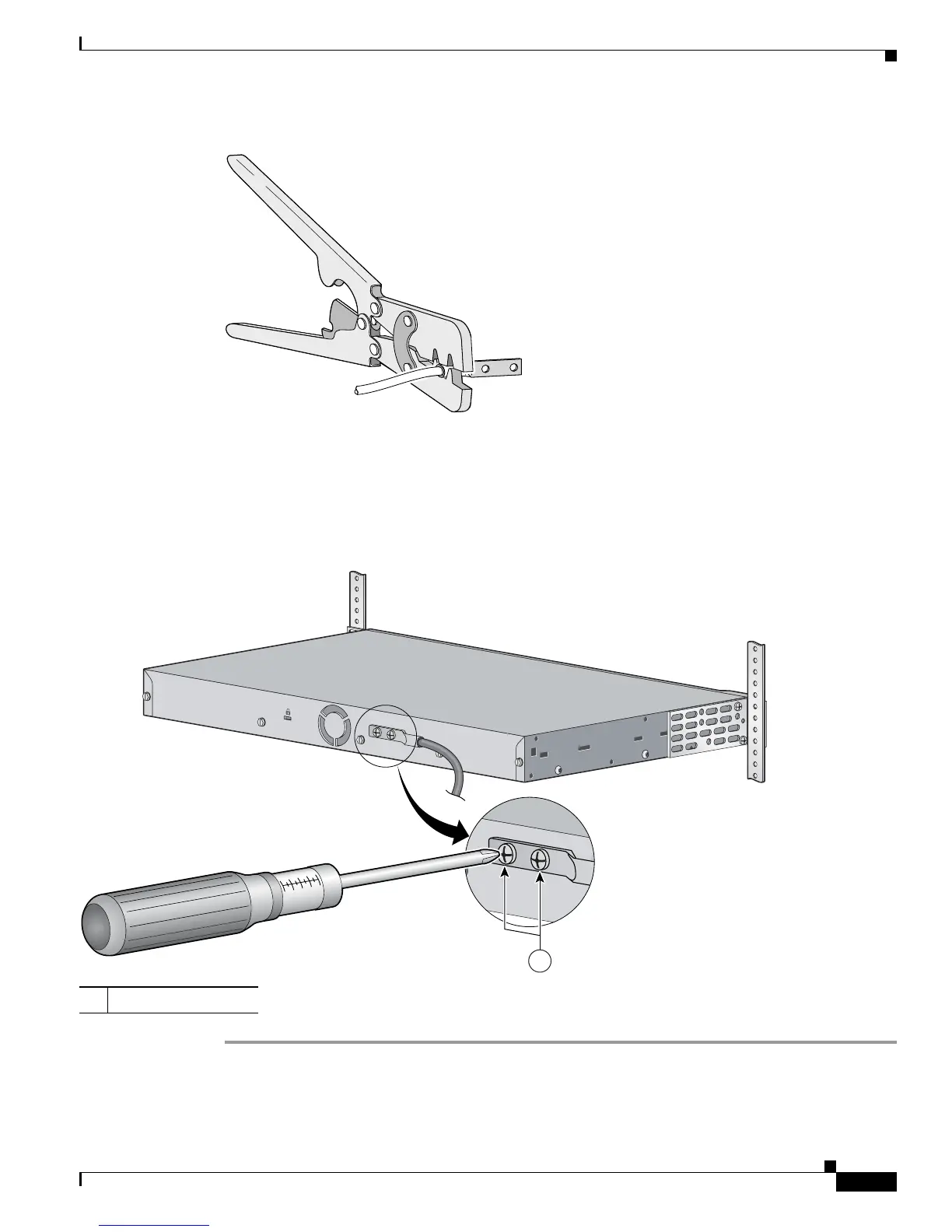

Figure C-2 Crimping the Ground Lug
Step 5
Use the two number-10-32 screws to attach the ground lug and wire assembly to the rear panel of
the switch.
Step 6 Using a ratcheting torque screwdriver, torque each ground-lug screw to 15 lbf-in. (240 ounce-force
inches [ozf-in.]). Figure C-3 shows how to torque the ground screws on a Cisco ME DC switch.
Figure C-3 Torquing Ground-Lug Screws
1 Torque to 15 lbf-in.
60529
132854
1
