Chapter 8 Routing Power and Signal Cables
Power Requirements for the Cisco TelePresence 3000
Step 9 Connect the speaker cables using the following markings and colors on the codec:
• A single dot on a green background indicates a center speaker.
• Two dots on a white background indicate a left speaker.
• Three dots on a red background indicate a right speaker.

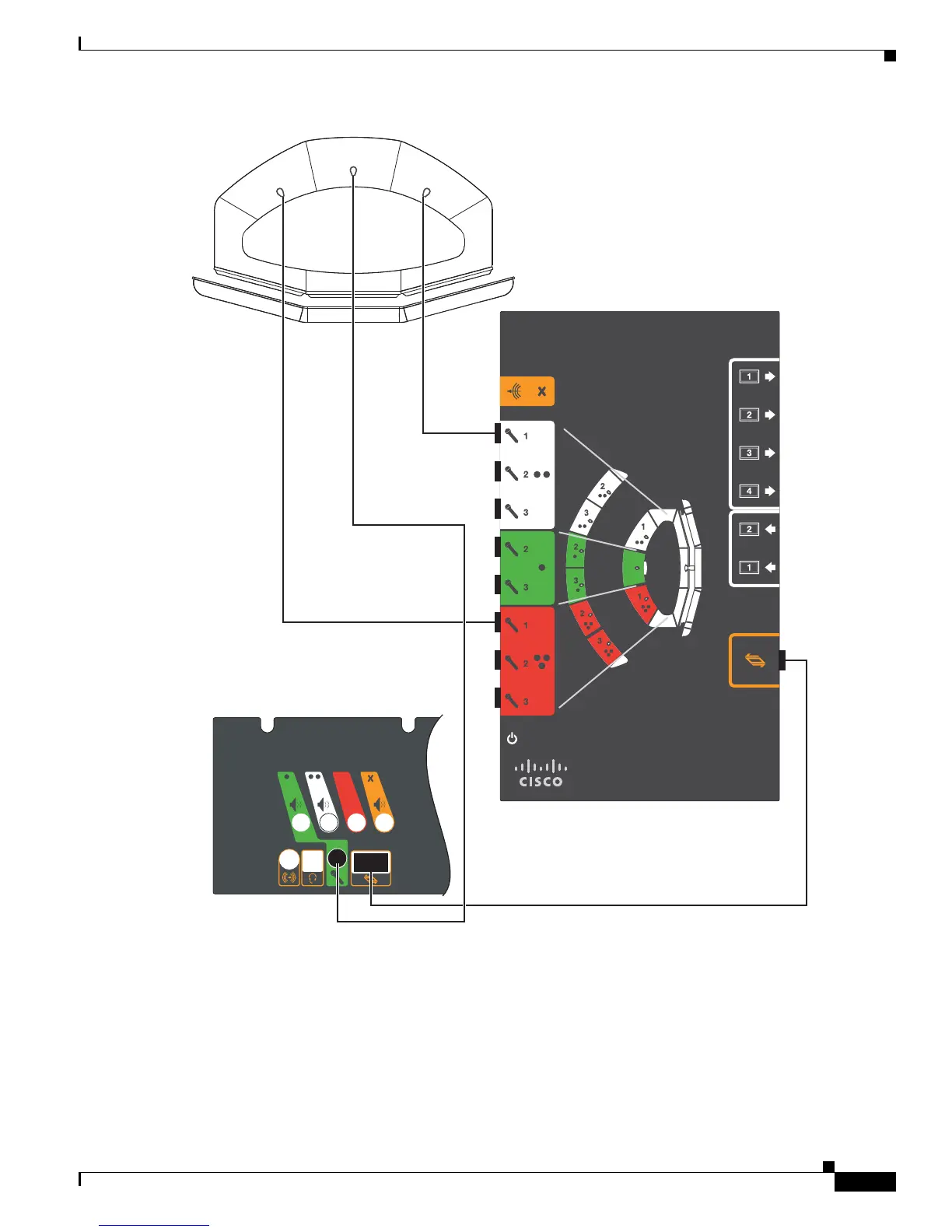

Figure 8-9 shows the speaker cabling. Left and right are reversed.
205760
