Chapter 1 Overview of Cisco 4000 Series ISRs
Chassis Views
Cisco 4331 ISR Chassis
This section contains the following views of Cisco 4331 ISR router:
• Bezel Side Ports and LEDs on Cisco 4331 ISR (Figure 1-14)
• Back Panel Ports and Slots on Cisco 4331 ISR (Figure 1-15)
Figure 1-14 Bezel Side Ports and LEDs on Cisco 4331 ISR

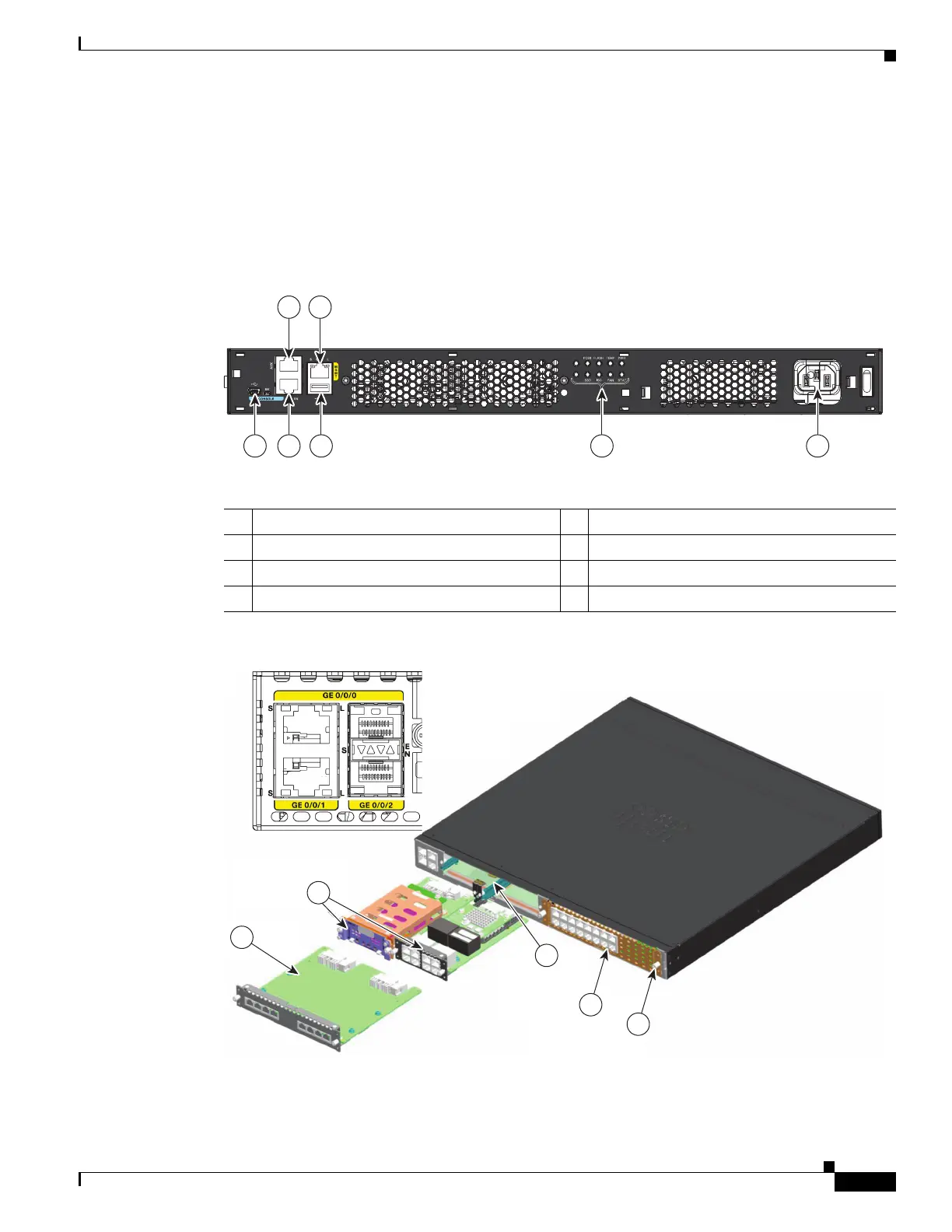

Figure 1-15 Back Panel Ports and Slots on Cisco 4331 ISR
1 USB Type B mini port 2 Serial console port
3 AUX port 4 USB Type A port
5 Management port 6 LEDs
7 AC Power
391462
1 2
3 5
4 6 7
1
2
3
4
5
391463

Cisco 4331 ISR Specifications

General

Form Factor	Rack-mountable
Maximum Throughput	100 Mbps
Total onboard GE ports	4
Rack height	1RU
Operating System	Cisco IOS XE
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-4 to 149°F (-20 to 65°C)
LAN Ports	2 x GE
Memory	4 GB
Flash Memory	4 GB
Relative Humidity	5 to 95% (noncondensing)
WAN Ports	2 x GE WAN
