Hardware Installation Guide for Cisco 4000 Series Integrated Services Routers
OL-32185-02
Chapter 6 Install and Upgrade Internal Modules and FRUs
Remove and Replace Cisco NIM-SSD or NIM-HDD
Remove NIM-SSD or NIM-HDD from the Router
To remove the module from the router:
Step 1 Slip on the ESD-preventive wrist strap that was included in the accessory kit. Loosen the screw fasteners
(11) located on the SSD slots on the right of the input/output (I/O) side of the Cisco 4451-X ISR.
(Figure 6-17).

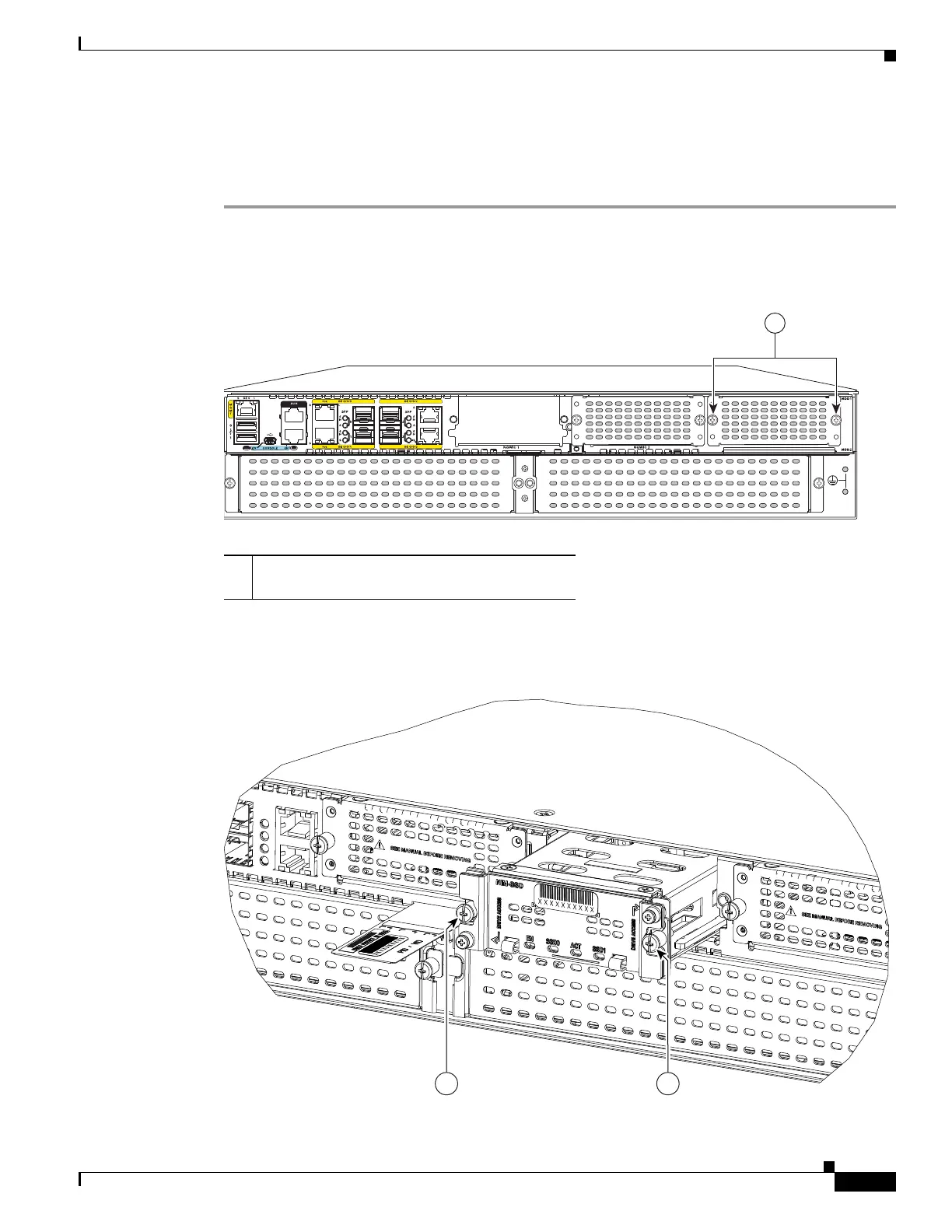

Figure 6-17 Remove the NIM-SSD or NIM-HDD from the Router
Step 2
Using a Phillips screwdriver, loosen the captive screws on either side as shown in Figure 6-17.
Figure 6-18 Remove the NIM-SSD or NIM-HDD from the Router
2
1
285700
L
L
1
1 Captive screws holding the NIM-SSD to the
router
11
347341

Cisco 4331 ISR Specifications

General

Form Factor	Rack-mountable
Maximum Throughput	100 Mbps
Total onboard GE ports	4
Rack height	1RU
Operating System	Cisco IOS XE
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-4 to 149°F (-20 to 65°C)
LAN Ports	2 x GE
Memory	4 GB
Flash Memory	4 GB
Relative Humidity	5 to 95% (noncondensing)
WAN Ports	2 x GE WAN
