Install the Router

• Front mounting—Brackets attached at the front of the chassis with the front panel facing forward.

• Back mounting—Brackets attached at the back of the chassis with the back panel facing forward.

Step 1 Attach the mounting brackets to the router chassis as shown in Figure 3-2 through Figure 3-5, using the

screws provided.

Caution Do not over-torque the screws. The recommended torque is 15 to 18 inch-lb (1.7 to 2.0 N-m).

Attach the second bracket to the opposite side of the chassis. Use a number-2 Phillips screwdriver to

install the number-8 bracket screws.

Caution Your chassis installation must allow unrestricted airflow for chassis cooling.

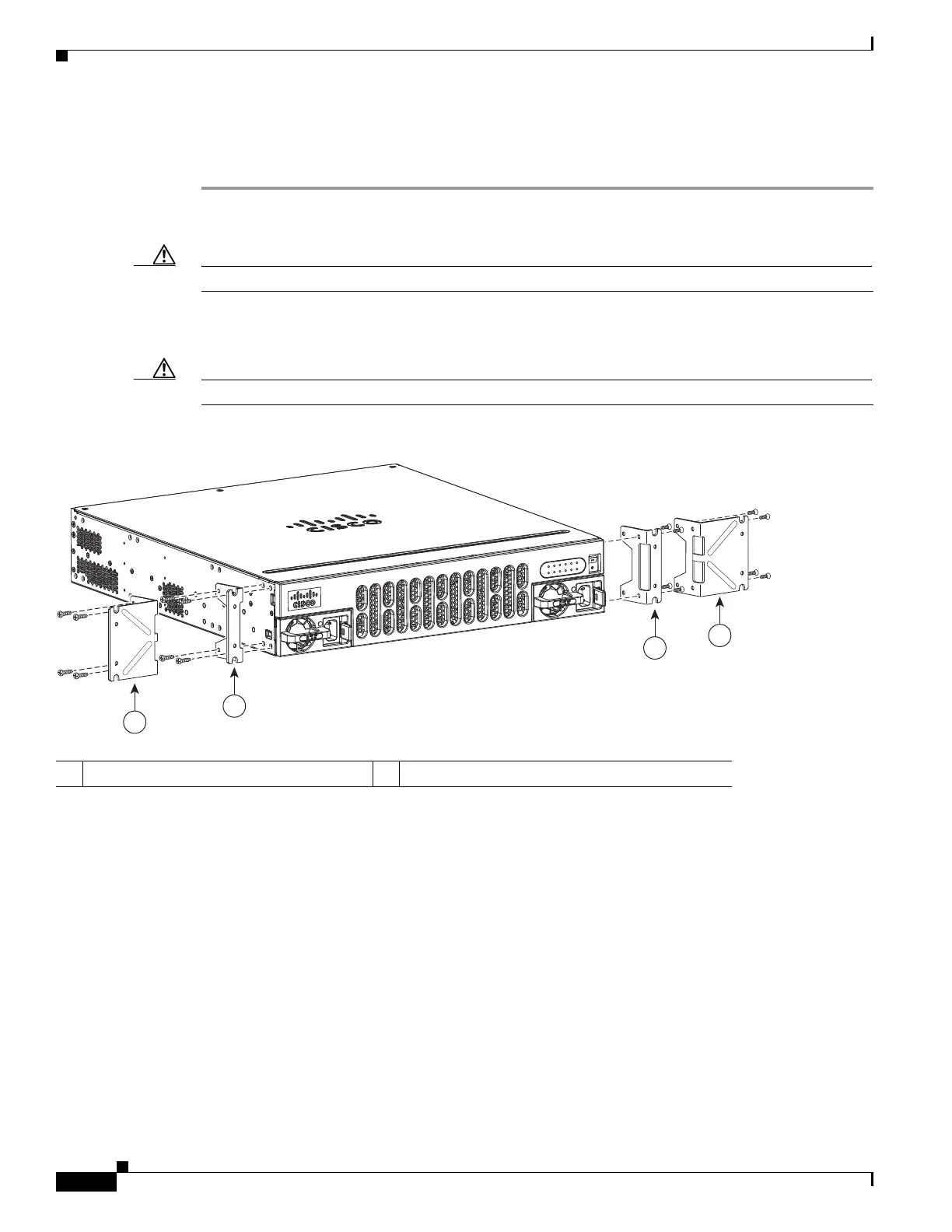

Figure 3-2 Bracket Installation for Front Mounting (Cisco 4451-X ISR shown)

1 23-inch SBC

brackets

1. Southwestern Bell Corporation (SBC)

2 19-inch EIA brackets

302953
