Chapter 2 Power and Cooling
AC Power Systems
Figure 2-19 shows the single AC Delta PDU. The single AC Wye PDU is similar.

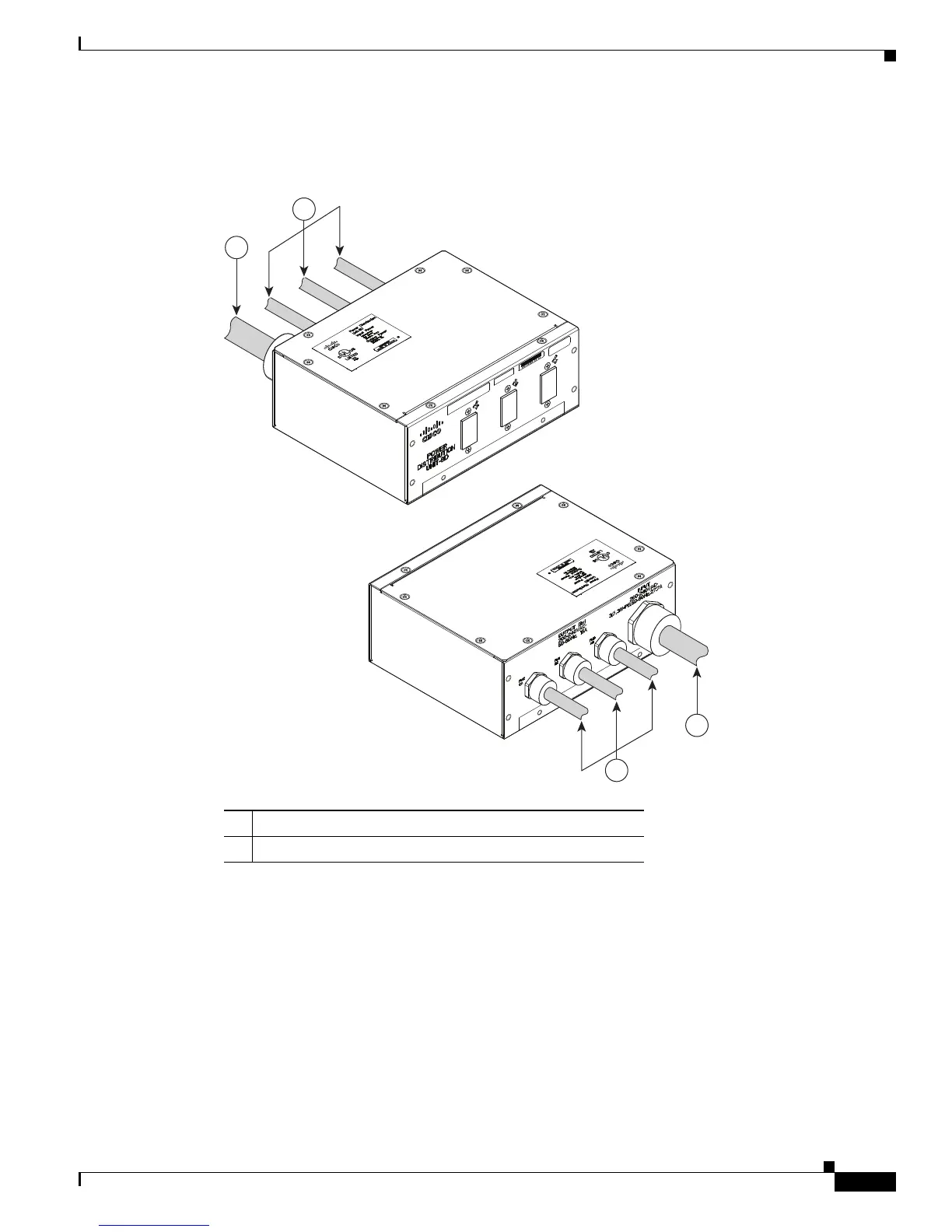

Figure 2-19 Single AC PDU—Front and Rear
1 3-phase AC input cord
2 Single-phase AC output cords
254864
1
1
2
