Chapter 1 Cisco NCS 6008 Chassis
The Cisco NCS 6008 chassis is a highly scalable routing system with redundancy and reliability features
that allow for nonstop operation even during service upgrades of equipment, with no single points of
failure in hardware or software. The routing system has the potential to expand from a single-chassis to
a multichassis configuration for even greater routing capacity.
Figure 1-1 shows the front view of the Cisco NCS 6008 chassis.

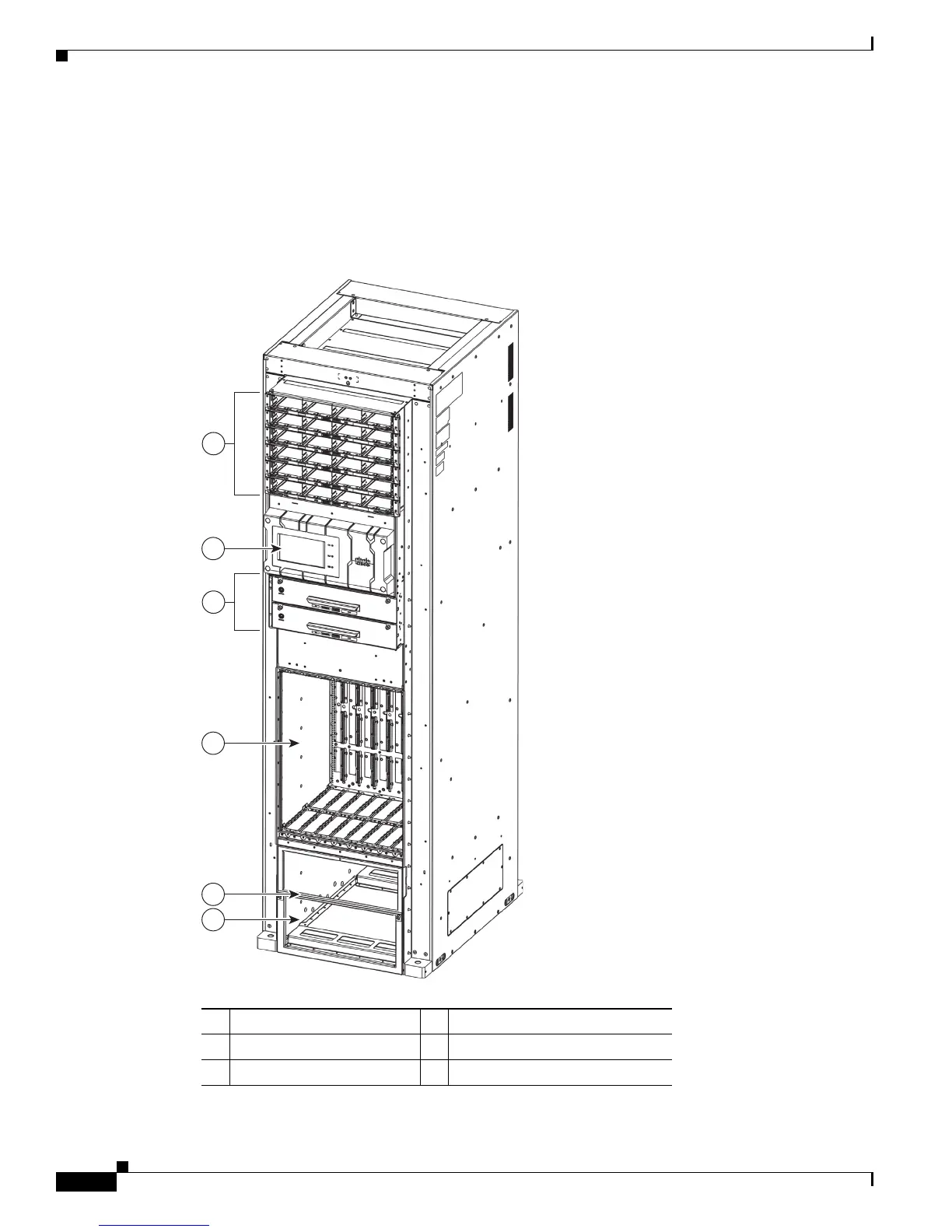

Figure 1-1 Front View of the Cisco NCS 6008 Chassis
1 Power trays (6) 4 Card cage with eight LC slots
2 Craft display panel 5 Air filter access
3 Fan trays (2) 6 Air inlet plenum
