5-12
Cisco Wide Area Virtualization Engine 7541, 7571, and 8541 Hardware Installation Guide
Chapter 5 WAVE Interface Modules
Installation Scenarios and Cabling Examples for Fast Ethernet Connections

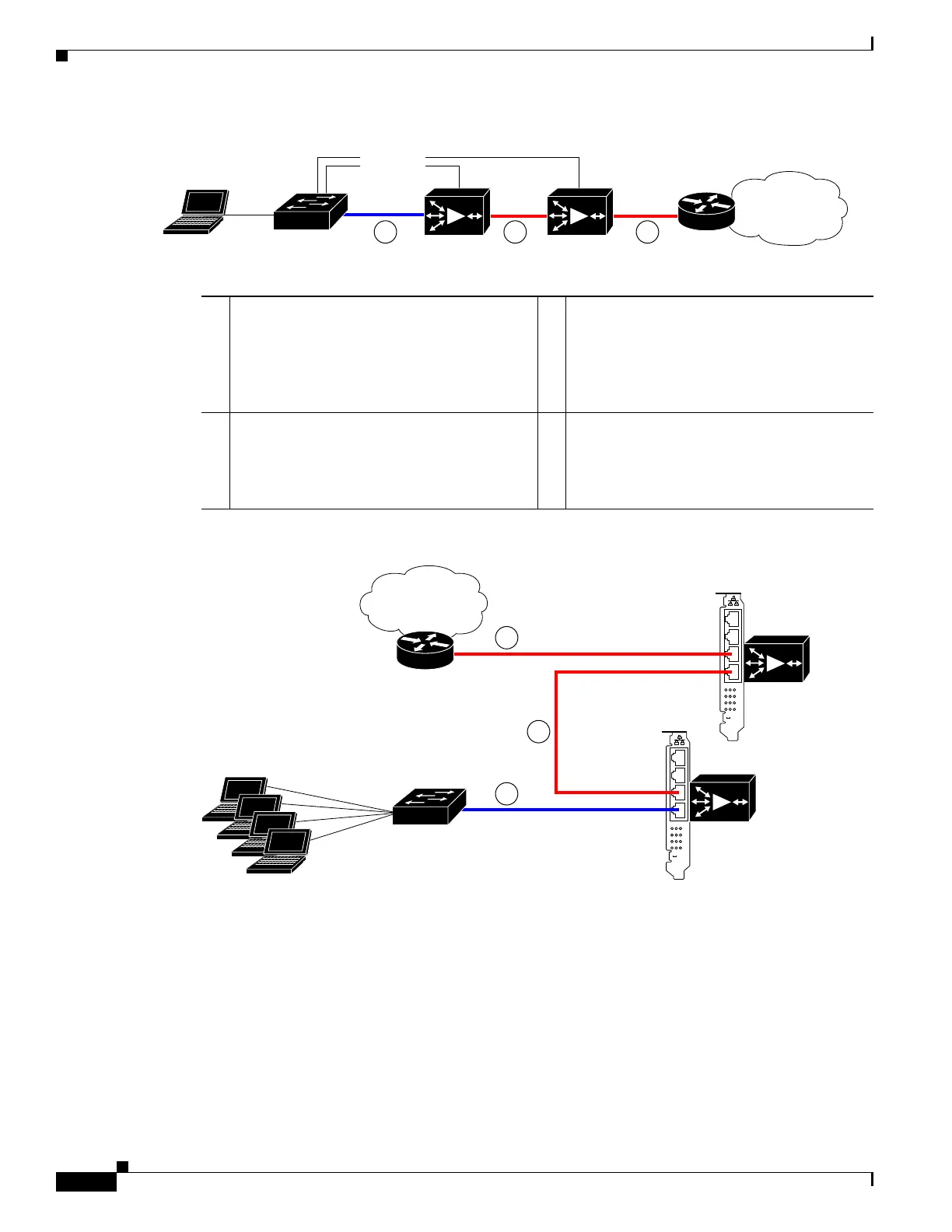

Figure 5-11 Cabling for Serial Cluster Inline WAVEs with a Single WAN Connection
Figure 5-12 Cabling Between Two Inline WAVEs
1 Connection: WAVE 1 to LAN switch
Fast Ethernet: LAN0 (InlinePort 1/0/lan)
Cable type: Straight-through
2 Connection: WAVE 1 to WAVE 2
Fast Ethernet: WAVE1 WAN0
(InlinePort 1/0/wan) to WAVE 2 LAN0
(InlinePort 1/0/lan)
Cable type: Crossover
3 Connection: WAVE 2 to WAN router
Fa s t E th e r n e t : WAV E 2 WA N 0
(InlinePort 1/0/wan)
Cable type: Crossover
MGMT
243289
WAVE1
WAN
Router B
WAVE2
LAN switch
31 2
0123
LINK/ACT 100 1000
BYPASS
0123
LINK/ACT 100 1000
BYPASS
243290
WAVE1
inline adapter
WAVE2
inline adap
WAN
Router
LAN switch
1
3
2
