Cisco 7841 Administration Guide

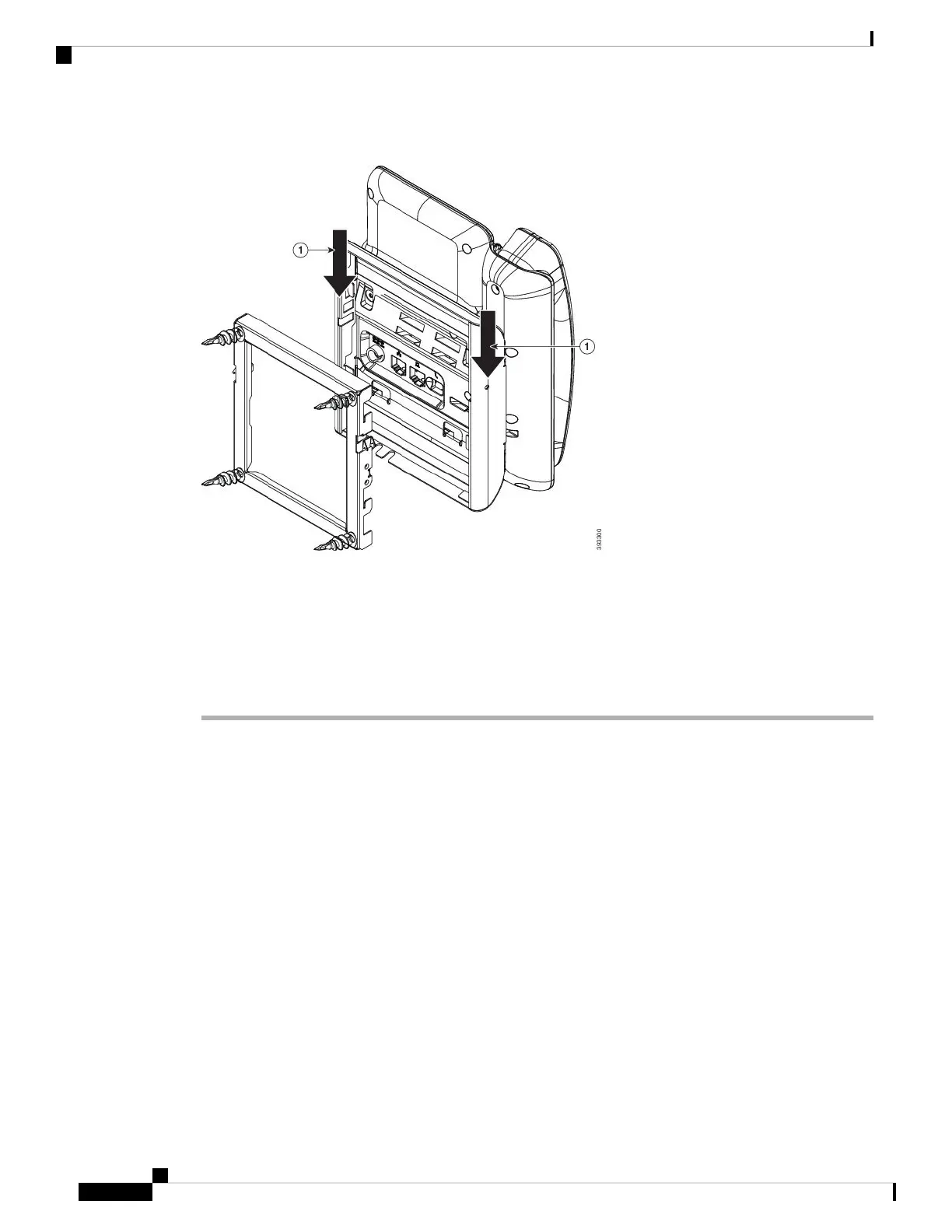

Figure 9: Tab Location
To remove the phone and mounting plate from the wall bracket, you must disengage these tabs.
Before you begin
You require two screwdrivers or metal rods.
Procedure
Step 1 Push the screwdrivers into the left and right holes in the phone mounting plate approximately 1 in. (2.5 cm).
Step 2 Lift the screwdriver handles up to push down on the tabs.
Cisco IP Phone 7800 Series Multiplatform Phones Administration Guide
98
Hardware and Accessory Installation
Remove the Phone from the Non-Lockable Wall Mount for 7811

Cisco 7841 Specifications

General

Ethernet Switch	Yes
Lines	4
Headset Port	Yes
Wall Mountable	Yes
Display	3.5-inch grayscale display
Audio	Wideband audio
PoE	IEEE 802.3af
Speakerphone	Full-duplex
Ethernet Ports	2 x 10/100/1000
Headset Jack	RJ9
Protocols	SIP
Codec Support	G.711, G.722, G.729, iLBC
Mounting	Desk or wall
Weight	1 kg
