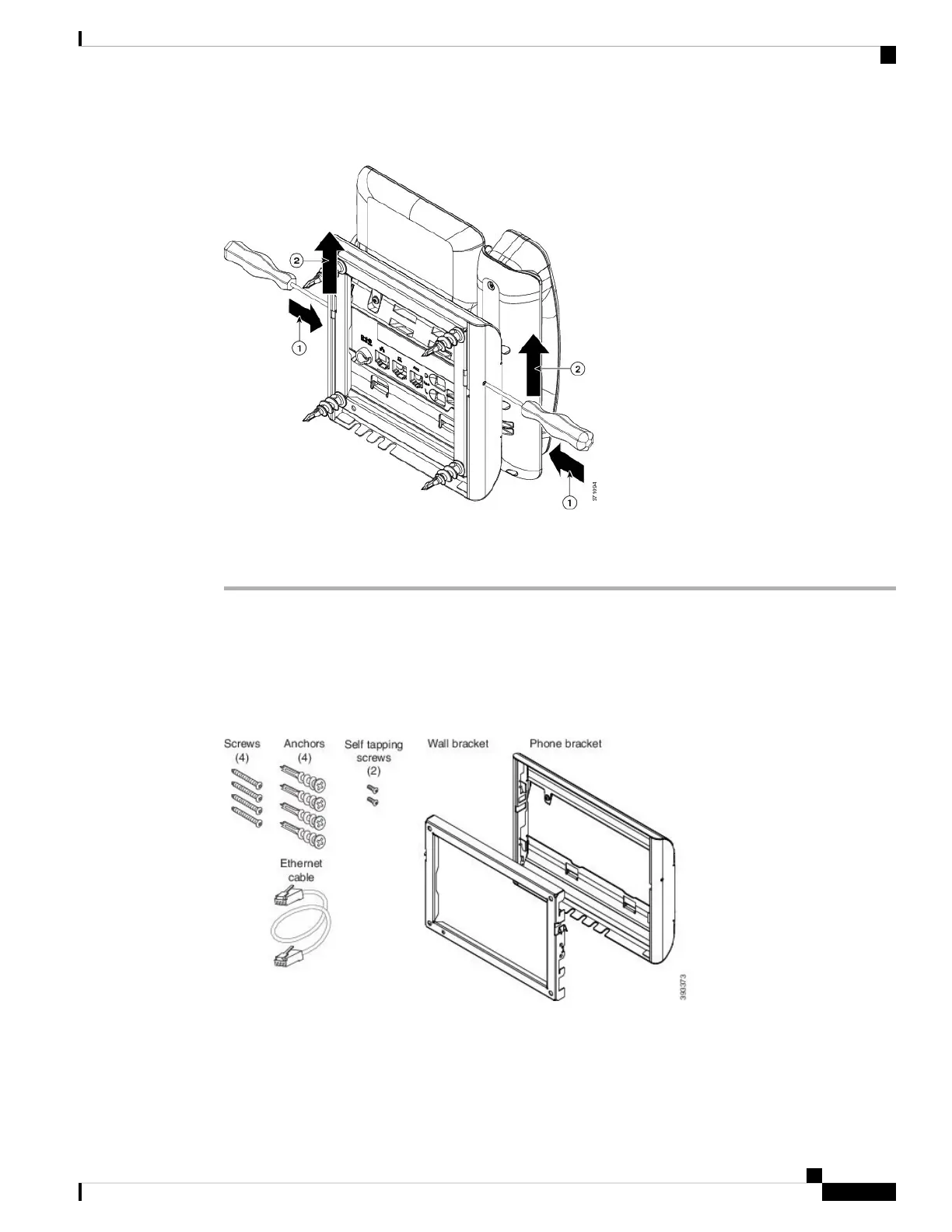

Figure 19: Disengage Tabs
Step 3 Press firmly to disengage the tabs and move the phone up at the same time to release the phone from the wall
bracket.
Non-Lockable Wall Mount Components for 7861
The following figure shows the components of the Cisco IP Phone 7861 Wall Mount Kit.
Figure 20: Wall Mount Kit Components for 7861
The package includes these items:
• One phone bracket
• One wall bracket
Cisco IP Phone 7800 Series Multiplatform Phones Administration Guide
107
Hardware and Accessory Installation
Non-Lockable Wall Mount Components for 7861

Cisco 7841 Specifications

General

Ethernet Switch	Yes
Lines	4
Headset Port	Yes
Wall Mountable	Yes
Display	3.5-inch grayscale display
Audio	Wideband audio
PoE	IEEE 802.3af
Speakerphone	Full-duplex
Ethernet Ports	2 x 10/100/1000
Headset Jack	RJ9
Protocols	SIP
Codec Support	G.711, G.722, G.729, iLBC
Mounting	Desk or wall
Weight	1 kg
