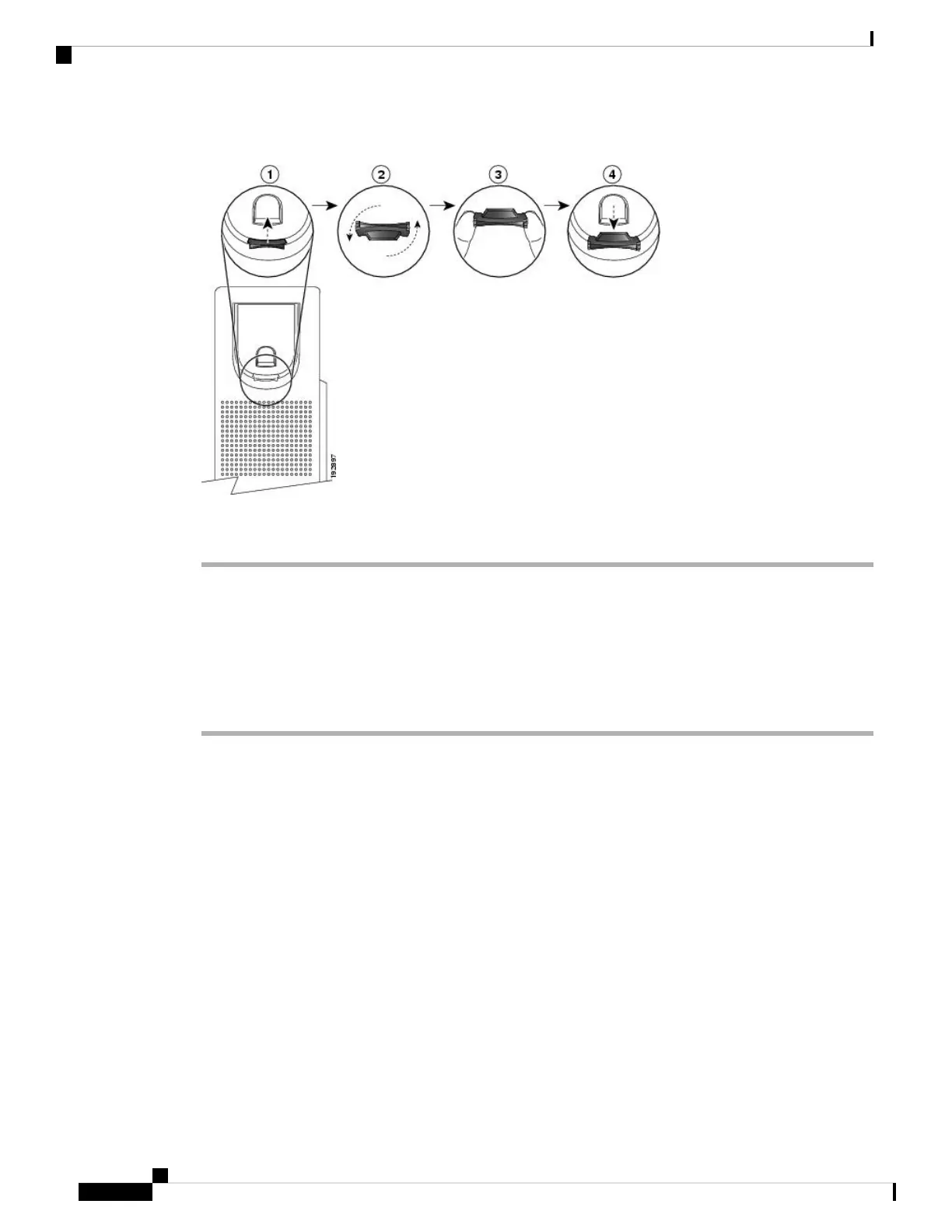

Figure 29: Adjust the Handset Rest
Procedure
Step 1 Remove the handset from the cradle and pull the plastic tab from the handset rest.
Step 2 Rotate the tab 180 degrees.
Step 3 Hold the tab between two fingers, with the corner notches facing you.
Step 4 Line up the tab with the slot in the cradle and press the tab evenly into the slot. An extension protrudes from
the top of the rotated tab.
Step 5 Return the handset to the handset rest.
Cisco IP Phone 7800 Series Multiplatform Phones Administration Guide
116
Hardware and Accessory Installation
Adjust the Handset Rest

Cisco 7841 Specifications

General

Ethernet Switch	Yes
Lines	4
Headset Port	Yes
Wall Mountable	Yes
Display	3.5-inch grayscale display
Audio	Wideband audio
PoE	IEEE 802.3af
Speakerphone	Full-duplex
Ethernet Ports	2 x 10/100/1000
Headset Jack	RJ9
Protocols	SIP
Codec Support	G.711, G.722, G.729, iLBC
Mounting	Desk or wall
Weight	1 kg
