Cisco 7841 Installation Guide

Installation Guide for Cisco IP Phone with Multiplatform Firmware
7
Install a Key Expansion Module on 8851, 8861, and 8865 Phones
Key Expansion Module Installation
Install a Key Expansion Module on 8851, 8861, and 8865 Phones
21
3
Spine connector

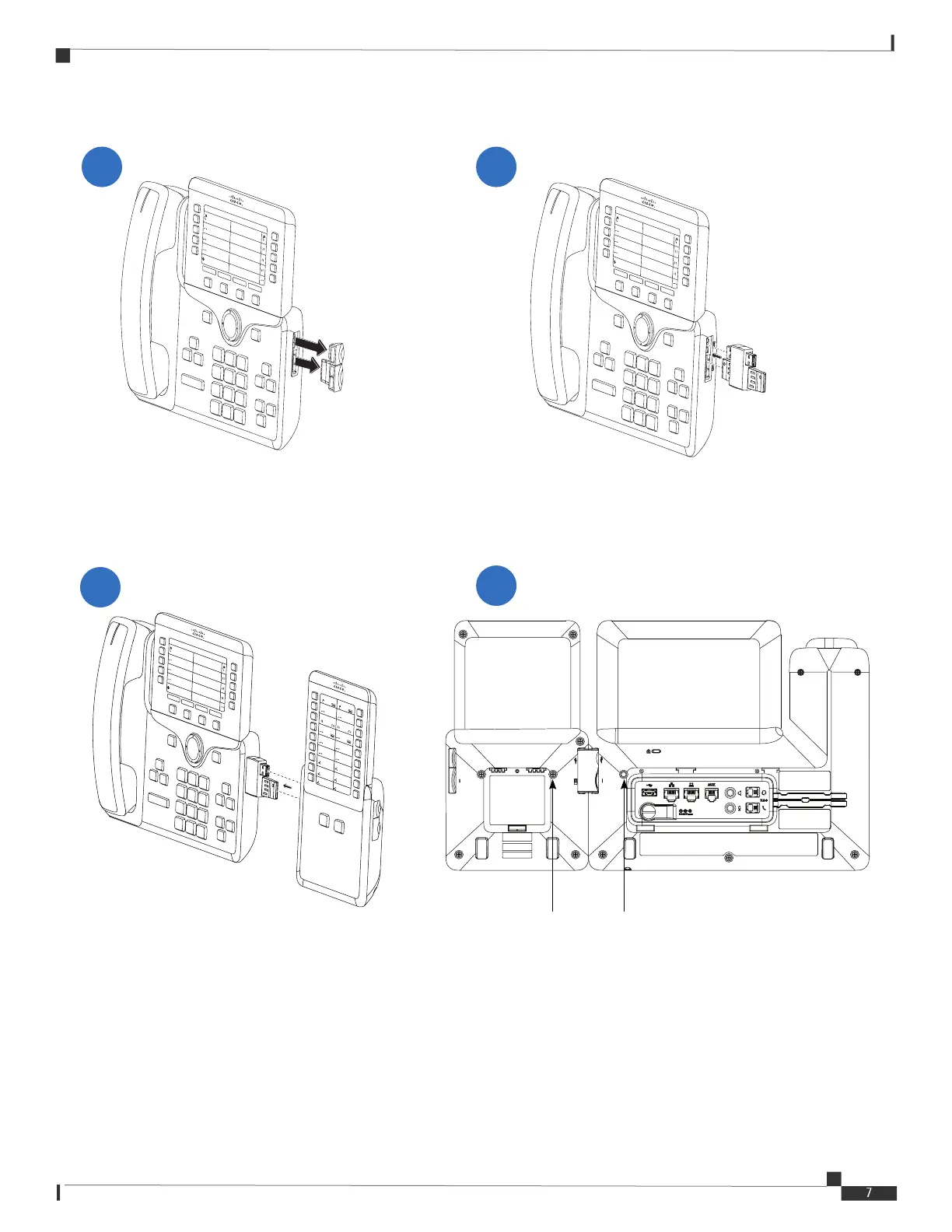

Remove the accessory connector covers.
Firmly press the key expansion module
into the spine connector.
Fasten the screws into the phone.
Firmly press the spine connector to the
phone.
447107
