Installation Guide for Cisco IP Phone with Multiplatform Firmware
22
Wall Mount Your 7800 Series Phones
Wall Mount Your Phone
Wall Mount Your 7861 Phone

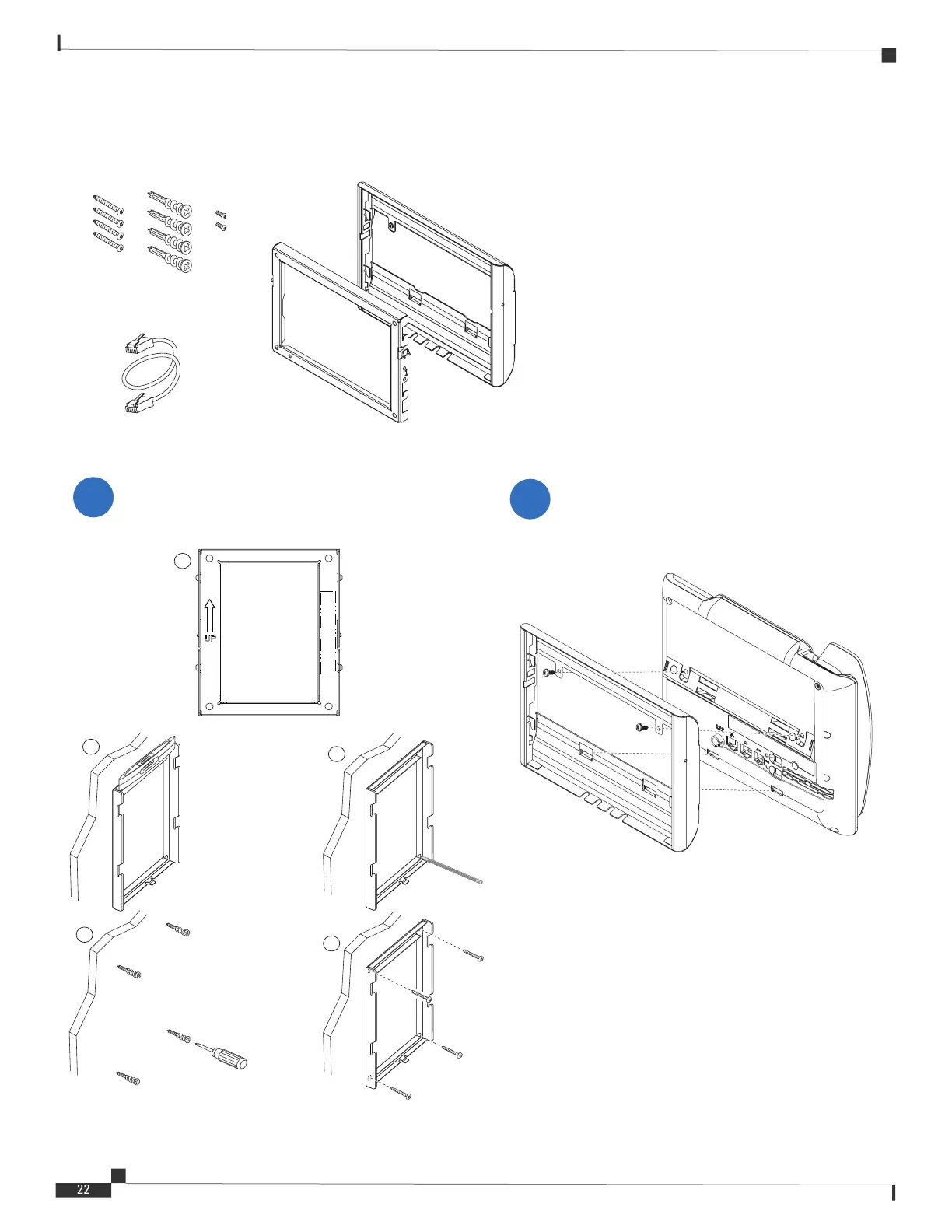

Mount the wall bracket in the desired location.
1
Plug in the handset cable, then attach the phone
bracket to the rear panel of the phone.
2
447130
Components:
1. Four M4 x 25-mm Phillips-head screws
2. Four anchors
3. Two M3 x 7-mm Self-tapping screws
4. One wall bracket
5. One phone bracket
6. One 200-mm Ethernet cable
1 2 3
6
5
447131
1
2
4
3
5
447126
4
