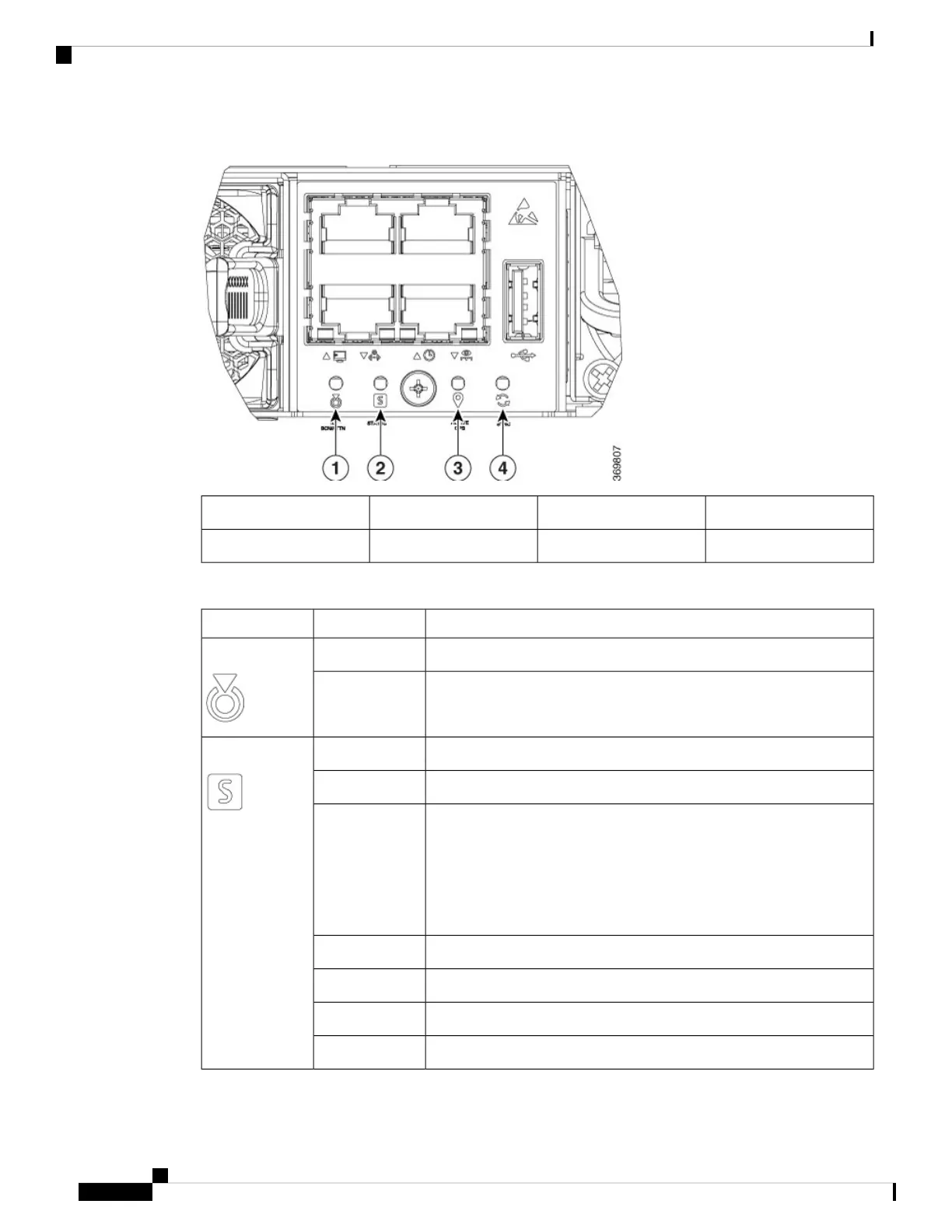

Figure 19: Chassis LEDs - Rear View of Cisco 8201 Chassis
GPS3Attention1
Synchronization4Status2
Table 4: Chassis LED Descriptions
StatusColorLED
The operator has activated this LED to identify this chassis.Flashing blueAttention
This chassis is not being identified.Off
The module is operational and has no active major or critical alarms.
GreenStatus
The auto or manual FPD upgrade is in progress.Flashing Green
The module is in one of the following states:
• Power cycle
• Reload or reimage
• Shutdown
Amber
The module has minor alarm.Flashing Amber
Power-up failure which prevents the CPU from booting.Red
The module has active major or critical alarms.Flashing Red
The module is powered-off.Off
